Manley Laboratories FORCE
4-Channel Tube Microphone Preamplifier

OUR PART #:  FORCE

The Manley Laboratories FORCE is a 4-channel vacuum tube microphone preamplifier based on the award-winning CORE system...
Learn More
Our Price: $2,250.00
List Price: $2,500.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Manley Laboratories FORCE
Qty:
In Stock

Similar Products

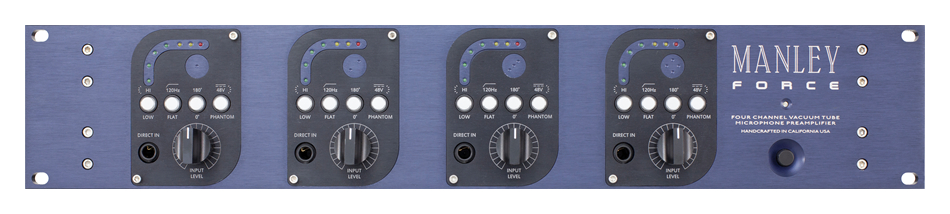

The Manley Laboratories FORCE is a 4-channel vacuum tube microphone preamplifier based on the award-winning CORE system, and is housed 2RU chassis that is hand-crafted in the USA by Manley Laboratories.

The FORCE is packed with thoughtful design elements such as organized controls, silky smooth and bulletproof rotary potentiometers, and positive latching feature switches and convenient Direct Input 1/4" jacks on each channel. Seven-way LED metering for each channel provides instant visible feedback for audio levels which are enhanced with a double-inlay CNC-milled accent, for a preamplifier unit that is not only a feast for the ears, but a feast for the eyes as well.

A Sonic Tour de FORCE
Your microphone signals enter through gold-plated XLR connectors straight into the MANLEY IRON mic input transformers. Your line level sources or instrument level guitars and keyboards come in via the front panel 1/4" Hi-Z 10 megOhm jacks before hitting the input level control which also acts as a Variable Input Pad. Phase Reverse and a 120 Hz High Pass filter can be invoked here in the circuit and then into the 12AX7 dual triode ampliying stage operting in pure Class 'A'. The amount of Gain for each channel can be selected as 40dB to 60dB via the front panel switches, and the output stage is capable of delivering up to a huge +35dBu.

Manely Laboratories FORCE Features:

  • Rear-panel XLR microphone input per channel
  • Front-panel 1/4" TRS Hi-Z Instrument Direct Input per channel
  • XLR Main output connectors
  • 7-way LED Level Meter
  • Illuminated, Positive Latching Feature Switches:
    • Microphone Pre selectable gain switch 40dB or 60dB
    • 120 Hz High Pass Filter
    • Phase Invert
    • 48V Phantom Power Switch
  • Rotary Input Level Attenuator (Variable Pad)
  • Manley Laboratories microphone input transformer
  • Class 'A' vacuum tube gain stage
  • MOSFET White Follower output stage
  • Warm-up mute timer circuit
  • 2RU Chassis
  • Front panel Power LED (flashing during start-up)
  • Front panel push-button power switch
