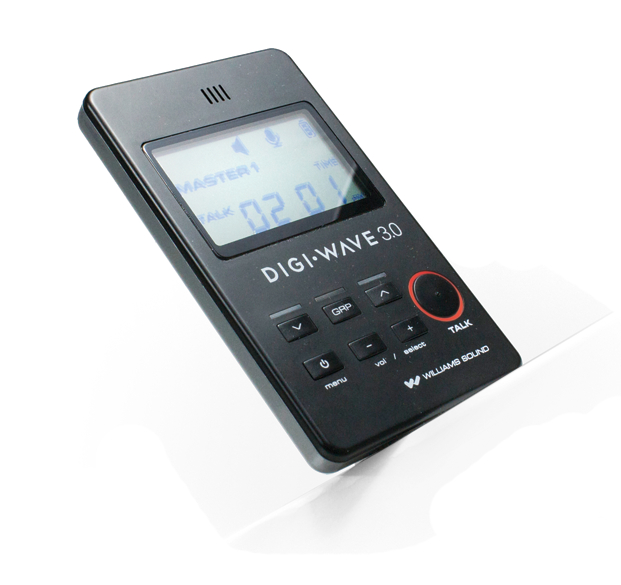

Williams Sound DLT 300
Digi-Wave 3.0 Digital Tranceiver

OUR PART #  DLT-300

Our Price: $503.00
List Price: $559.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Williams Sound DLT 300 Transceiver features full-duplex capability, supporting up to four simultaneous talkers in two-way mode, and up to six simultaneous talkers in intercom mode. Slim, lightweight, and simple to set up and use.  One- or two-way operation offers flexibility in an array of applications, and with the push of a button, users can access two-way communication for immediate interaction or Q&A.

NOTE: The DLT 300  is NOT Compatible with the 100 or 200 Digiwave

Williams Sound DLT 300 Features:

  • Up to four simultaneous talkers in two-way mode; up to six simultaneous talkers in intercom mode
  • Increased range, up to 300 ft indoors/200 ft outdoors
  • Easier-to-read, more intuitive LCD screen
  • Onboard rechargeable battery
  • Includes charger

Williams Sound DLT 300 Specifications:

  • Dimensions (WxHxD):  4.07” x 2.43” x 0.44”(103.3 mm x 61.8 mm x 11.3 mm)
  • Weight:  2.9 oz (82 g)  including battery
  • Color:  Black/Silver (Front/Back)
  • Case Material:  Black ABS plastic
  • Battery Type:  Lithium Polymer with smart charge built into transceiver; 2000 mAH
  • Battery Life:  Up to 14 hrs talk time per charge Current consumption range: 39 mA @ idle to 94 mA w/1 Ch Tx and 3 Ch Rx
  • Power Save:  Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
  • Charge Time:  5 hrs. TFP 045 with cable and international adapters
  • Optional Chargers:  2-bay CHG 102, 12-bay CHG1012, TFP 045
  • Simultaneous Channels/Groups/Talkers:  Up to 15 simultaneous channels (0-14) (Interpretation mode) Up to 4 simultaneous groups (2 way mode) Up to 4 simultaneous talkers per group (2-way mode) Up to 6simultaneous talkers per group (2-way Intercom mode)
  • Operating Frequencies:  2.4 GHz (ISM band); 2402– 2476 MHz FHSS
  • Audio Frequency Response (-3dB Knee Level): Conference Mode, Interpreter Mode:  140 – 11.5 KHz Intercom Mode: 140 – 7.6 KHz
  • SNR:  74dB (A-weighted, Maximum output)
  • THD:  0.33 %
  • Microphone Input:  Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (tip/sleeve) with electret microphone bias, adjustable gain with 63dB range.
  • Headphone Output:  3.5 mm phone jack; 33 Ohmload
  • Audio Output:  Max SSPL 90 111.8dB (EAR 013),116.8dB (EAR 041) Internal speaker (disabled when haedphone jack in use) <20mW @ 10% THD/RL = 33 Ohms
  • Range:  Up to 200 ft outdoors and 300 ft indoors (depending upon environmental conditions)
  • Modulation:  FSK
  • RF Output:  14 dBm Typical
  • Security:  87 bit encryption, Secure Key Code,Setup Lock (SLOC)
  • Controls:  Front panel push buttons for volume up/down, group select, menu access and selection, voting, timer, time, MIC on/off, power on/off, tone control SLOC access and Secure Key access. System reset button (rear panel)
  • Outputs:  3.5 mm stereo/mono headphone jack; 30 pin charging jack with audio out to base stations
  • Side Tone:  -12dB below volume, tone variation  [ST:0 = Off, ST:1 = -6dB, ST:2 = -12dB]
  • Indicators:  LCD (Group, channel, volume level, battery status, mode, number of people with talk button on)
  • LED’s (charge status):  Red LED around talk button when enabled.
  • Docking Connector:  30-pin Connector for charging and audio in/out
  • Compatible Receiver:  DLR 360 only
  • Approvals:  FCC, Industry Canada, CE, RoHS,WEEE, RCM
  • Warranty:  2 years parts and labor (90 days on accessories); 6 months on internal battery
