JBL AC195-WH
10" 200W (8 Ohms) Passive Loudspeaker with 90°x50° Dispersion in White

OUR PART #:  AC195-WHITE

Our Price: $900.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL AC195-WH
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL AC195-WH is a compact 2-way full-range loudspeaker system comprised of one 10" (254 mm) low frequency driver and one 1" (25 mm) exit/1.5" (38 mm) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. High-slope passive crossovers minimize band overlap and well-controlled off-axis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting. AC195 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

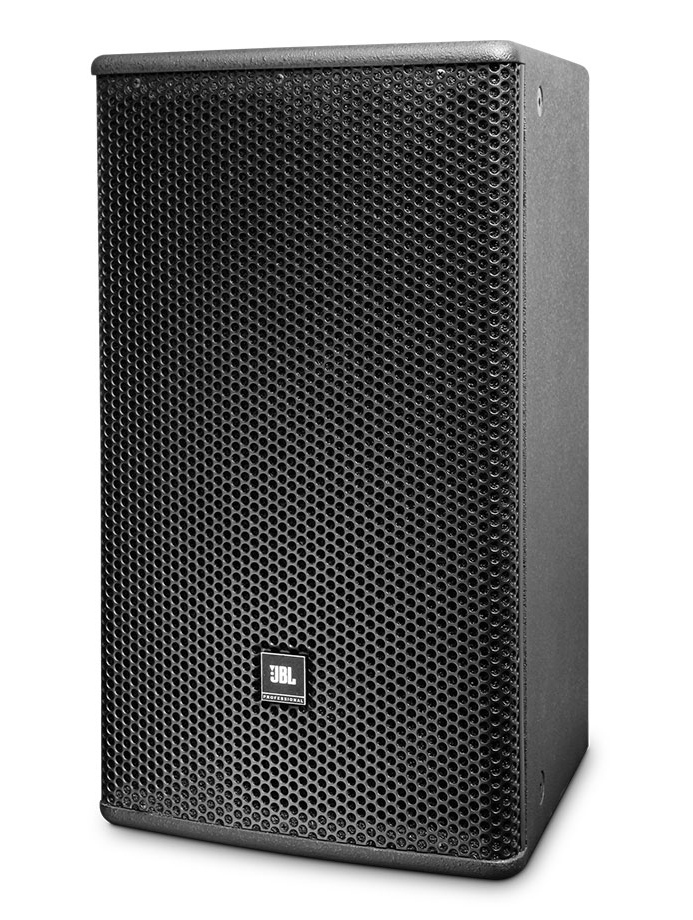

NOTE:   Image shown above is for illustrative purposes only; actual product will come White in color. For more information on this and other products, contact your Sales Representative.

JBL AC195-WH Features:

  • Compact enclosure
  • 10" (254 mm) LF transducer
  • 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 1" (25mm) exit diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility
  • Applications:
    • Performing spaces
    • Clubs & bars
    • Houses of worship
    • Multimedia spaces
    • Retail & hospitality spaces
    • Presentation suites
    • Educational facilities

JBL AC195-WH Specifications:

  • Frequency Range (-10 dB):  68 Hz - 20 kHz
  • Frequency Response (±3 dB):  85 Hz - 18kHz
  • System Sensitivity (1w @ 1m):  95 dB
  • Nominal Impedance:  8 Ohms
  • Maximum SPL(1m):  118 dB (124 dB peak)
  • Power Rating (Continuous/Program/Peak):  200 W/400 W/800 W
  • Coverage Pattern (H x V):  90° x 50°
  • Crossover:  1.8 kHz
  • Low Frequency Driver:  1x 10" (254 mm) driver with 1.5" (38 mm)voice-coil
  • High Frequency Driver:  1x 2408H-2 driver with 1" (25 mm) exit/1.5"(38 mm) voice-coil
  • Input Connector:  Dual Neutrik NL4MP connectors plus covered barriertrip terminals
  • Enclosure:  15 mm multi-ply hardwood plywood
  • Grille:  Powder coated, 1.5mm perforated steel, with acousticallytransparent black foam backing
  • Finish:  Textured white paint finish
  • Suspension / Mounting:  14x M10 and 4x M10 for Wall Mount Bracket.Optional U-bracket, L-bracket and wall-mount bracket
  • Dimensions (HxWxD):  12.2" x 12.9" x 21.0" (310 mm x 329 mm x 535 mm)
  • Net Weight:  28.8 lbs (13.1 kg)
