10" 200W (8 Ohms) Passive Loudspeaker with 90°x50° Dispersion in Black


Our Price: $900.00
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

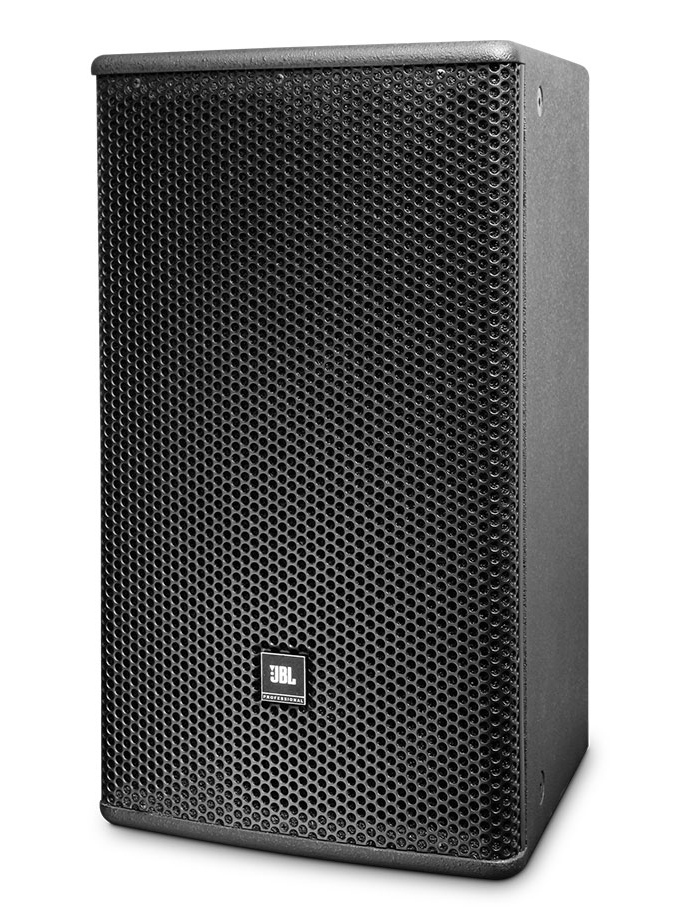

The JBL AC195 is a compact 2-way full-range loudspeaker system comprised of one 10" (254 mm) low frequency driver and one 1" (25 mm) exit/1.5" (38 mm) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. High-slope passive crossovers minimize band overlap and well-controlled off-axis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting. AC195 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

JBL AC195 Features:

  • Compact enclosure
  • 10" (254 mm) LF transducer
  • 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 1" (25 mm) exit diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility
  • Applications:
    • Performing spaces
    • Clubs & bars
    • Houses of worship
    • Multimedia spaces
    • Retail & hospitality spaces
    • Presentation suites
    • Educational facilities

JBL AC195 Specifications:

  • Frequency Range (-10 dB):  68 Hz - 20 kHz
  • Frequency Response (±3 dB):  85 Hz - 18kHz
  • System Sensitivity (1w @ 1m):  95 dB
  • Nominal Impedance:  8 Ohms
  • Maximum SPL(1m):  118 dB (124 dB peak)
  • Power Rating (Continuous/Program/Peak):  200 W/400 W/800 W
  • Coverage Pattern (H x V):  90° x 50°
  • Crossover:  1.8 kHz
  • Low Frequency Driver:  1x 10" (254 mm) driver with 1.5" (38 mm) voice-coil
  • High Frequency Driver:  1x 2408H-2 driver with 1" (25 mm) exit/1.5" (38 mm) voice-coil
  • Input Connector:  Dual Neutrik NL4MP connectors plus covered barrier trip terminals
  • Enclosure:  15 mm multi-ply hardwood plywood
  • Grille:  Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
  • Finish:  Textured black paint finish
  • Suspension / Mounting:  14x M10 and 4x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
  • Dimensions (HxWxD):  12.2" x 12.9" x 21.0" (310 mm x 329 mm x 535 mm)
  • Net Weight:  28.8 lbs (13.1 kg)
