8" 150W (8 Ohms) 2-Way Passive Loudspeaker with 90°x50° Dispersion in White


Our Price: $720.00
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The JBL AC895-WH is a compact 2-way full-range loudspeaker system comprised of one 8" (203 mm) low frequency driver and one 1" (25 mm) exit/1" (25 mm) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. High-slope passive crossovers minimize band overlap and well-controlled off-axis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895-WH is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

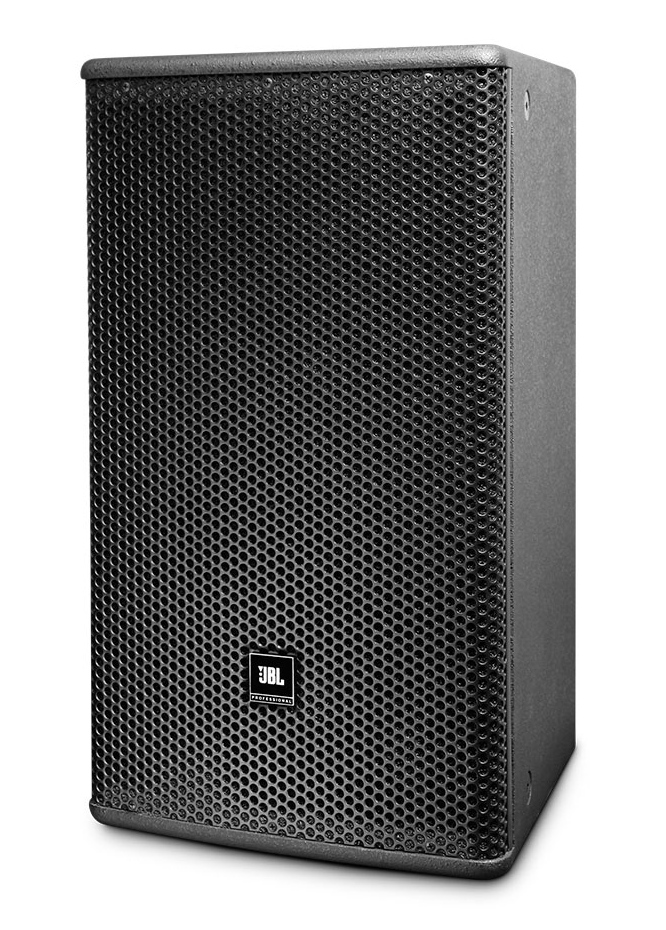

NOTE:  Image shown above is for illustrative purposes only; actual product will come White in color. For more information on this and other products, contact your Sales Representative.

JBL AC895-WH Features:

  • Compact enclosure
  • 8" (205 mm) LF transducer
  • 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 1" (25 mm) exit diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple Attachment Points for Ultimate Flexibility
  • Applications:
    • Performing spaces
    • Clubs & bars
    • Houses of worship
    • Multimedia spaces
    • Retail & hospitality spaces
    • Presentation suites
    • Educational facilities

JBL AC895-WH Specifications:

  • Frequency Range (-10 dB):  70 Hz - 20 kHz
  • Frequency Response (±3 dB):  90 Hz - 18 kHz
  • System Sensitivity (1w @ 1m):  94 dB
  • Nominal Impedance:  8 Ohms
  • Maximum SPL (1m):  116 dB (122 dB peak)
  • Power Rating (Continuous/Program/Peak):  150 W/300 W/ 600 W
  • Coverage Pattern:  90° x 50° (H x V)
  • Crossover:  2 kHz
  • Low Frequency Driver:  8" (203 mm) driver with 1" (25 mm) voice-coil
  • High Frequency Driver:  1x 2414H-C driver with 1" (25 mm) exit/1" (25 mm) voice-coil
  • Input Connector:  Dual Neutrik NL4MP connectors plus covered barrier strip terminals
  • Enclosure:  15 mm multi-ply hardwood plywood
  • Grille:  Powder coated, 1.5 mm perforated steel, with acoustically transparent black foam backing
  • Finish:  Textured white paint finish
  • Suspension / Mounting:  14x M10 and 4x M10 forWall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
  • Dimensions (HxWxD):  10.4" x 10" x 18.5" (265 mmx 254 mm x 470 mm)
  • Net Weight:  22.4 lbs (10.2 kg)
