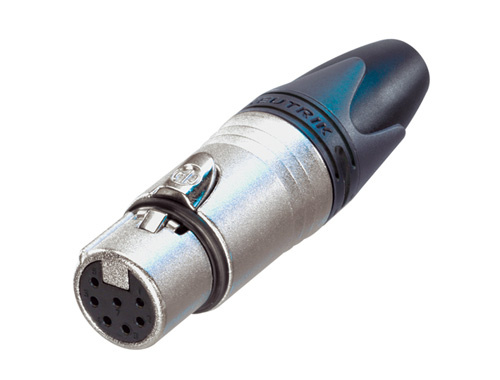

Neutrik NC7FXX
7-Pin XLR Female Cable Connector

OUR PART #:  NC7FXX

The Neutrik NC7FXX is a 7-pin female cable connector with Nickel housing and silver contacts.
Learn More
Our Price: $8.20
List Price: $11.55
Save up to 40% when you order by quantity!
  • Buy 25: $7.41 each.
  • Buy 50: $7.15 each.
  • Buy 100: $6.88 each.
Write the first review.

Related Products

The Neutrik NC7FXX is a 7-pin female cable connector with Nickel housing and silver contacts.

Neutrik NC7FXX 7-Pin XLR Female Cable Connector Features:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck-type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available (sold  separately) for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well proteced against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NC7FXX 7-Pin XLR Female Cabe Connector Specifications:

  • Electrical:
    • Capacitance between contacts: </= 9 pF
    • Contact resistance: </= 3 mOhm (inner)
    • Dielectric strength: 1.5 kVdc
    • Insulation resistance: > 10 GOhm (initial)
    • Rated current per contact: 5 A
    • Rated voltage: < 50 V
  • Mechanical:
    • Cable O.D.: 3.5 - 8.0 mm
    • Insertion force: </= 20 N
    • Withdrawal force: </= 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 1.0 mm²
    • Wiresize: max. 18 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
  • Material:
    • Boot: Polyurethane
    • Contact plating: 2 µm Ag over 2 µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
    • Strain relief: Polyacetal (POM)
  • Environmental:
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
