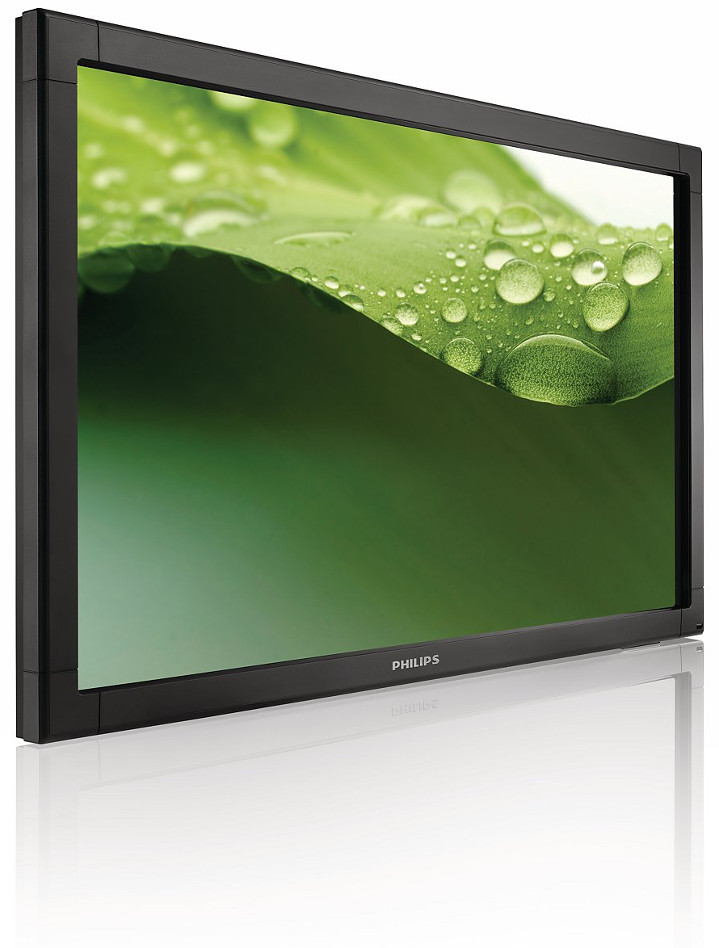

Philips Commercial BDL6520EL
65" Commercial (24/7 Operation) E-Line Edge LED Backlight Display


The Philips Commercial BDL6520EL, part of the Philips E-Line LED display series, lets you maximize your content delivery whilst lowering your TCO.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

The Philips Commercial BDL6520EL, part of the Philips E-Line LED display series, lets you maximize your content delivery whilst lowering your TCO. This 65" display offers breathtaking HD picture quality with lower power consumption.

Philips Commercial BDL6520EL Includes:

  • BDL6520EL Unit
  • AC Power Cord
  • Remote Control
  • Batteries for Remote Control
  • Quick Start Guide
  • User Manual on CD-ROM
  • VGA Cable
  • RS232 Cable

Philips Commercial BDL6520EL Features:

  • SmartPower for Energy Saving - The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
  • Smart insert in the Back Cover to Place a Small PC - Professional PC's are part of most public signage installations. Quite often they increase the overall depth to the display and cause a lot of cable clutter. So we have designed this display with Smart insert in the back cover which is ideal for the integration of a professional small form factor PC. On top of that, the cable management system offers a great solution to keep your cables neat and professional looking.
  • Designed for 24/7 Operation - Because business never sleeps, our signage displays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-the-clock reliability.
  • Power Consumption Below the Industry Average - Reduction of the electrical power required to operate a device.
  • Portrait Mode Operability - This display is also able to be safely and reliably mounted in portrait position.
  • Full HD LED Technology for Brilliant Images - White LEDs are solid-state devices which light up to full, consistent brightness faster saving startup time. LEDs are free from mercury content which allows for eco-friendly recycling and disposal process. LEDs allow for better dimming control of LCD backlight, resulting in super high contrast ratio. It also gives superior color reproduction thanks to consistent brightness across the screen.
  • AMVA for Wide-View Super-High Contrast, Vivid Images - Philips AMVA LED display uses an advanced multi-domain vertical alignment technology which gives you super-high static contrast ratios for extra vivid and bright images. While standard applications are handled with ease, it is especially suitable for graphical demanding applications. It's optimized pixel management technology gives you 178/178 degree extra wide viewing angle, resulting in crisp images even in portrait mode.
  • Smart Control Software Suite - Control and manage all of the signage displays on your network with this powerful software tool which allows you to change the settings of your display centrally via an RJ45 or RS232 connection. Smart Control allows you to set the video input, modify the color settings, set the display's ID when creating video walls and even diagnose each display's status, giving you all the power you need to manage your displays from one central location.
  • Freeze Mode for Smooth Presentations - Activate the freeze option during your presentation, to switch the content on your computer without having your audience to see it. Simply deactivate the freeze option when ready to play the live video source again.
  • Optional Open Pluggable Specification Slot - Developed for the Digital Signage market, the Open Pluggable Specification (OPS) slot is designed to make changing or upgrading your media player mere child’s play. Simply plug your media player into the display - and you’re ready. No matter whether you have an entry level, mid-range or high-end media player, OPS is fully compatible bringing you a lower TCO over the longer term. Please contact your Sales Professional for more information.

Philips Commercial BDL6520EL Specifications:


  • Diagonal screen size:  64.5" (163.9cm)
  • Panel resolution: 1920x1080p
  • Optimum resolution:  1920 x 1080 @ 60Hz
  • Brightness:  360  cd/m²
  • Contrast ratio (typical):  4000:1
  • Aspect ratio:  16:9
  • Response time (typical):  8 ms
  • Pixel pitch:  0.74 x 0.74 mm
  • Display colors:  1.07 billion
  • Viewing angle (horizontal/vertical):  178°/178°
  • Surface treatment:  Anti-Glare coating
  • Picture enhancement:
    • 3/2 - 2/2 motion pull-down
    • 3D Comb filter
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    • Motion compensation deinterlacing
  • Supported Display Resolutions (Resolution @Refresh Rate):
    • Computer formats:
      • 1920 x 1200 @60Hz
      • 1920 x 1080 @60Hz
      • 1600 x 1200 @60Hz
      • 1440 x 900 @60Hz
      • 1366 x 768 @60Hz
      • 1360 x 768 @60Hz
      • 1280 x 1024 @60Hz
      • 1280 x 800 @60Hz
      • 1280 x 768 @60Hz
      • 1024 x 768 @60Hz
      • 800 x 600 @60, 72, 75Hz
      • 640 x 480 @60, 67, 72, 75Hz
    • Video formats:
      • 1080i, @50, 60Hz
      • 1080p @50, 60Hz
      • 480i @60Hz
      • 480p @60Hz
      • 576i @50Hz
      • 576p @50Hz
      • 720p @50, 60Hz


  • Video input:
    • DVI-D
    • HDMI
    • VGA (Analog D-Sub)
    • S-Video (Y/C mini DIN) 1x
    • Component (BNC)
    • Composite (BNC)
  • Video output:
    • VGA (Analog D-Sub)
    • Composite (BNC)
  • Audio input:
    • 3.5 mm jack
    • Audio Left/Right (RCA)
  • Audio output:
    • Audio Left/Right (RCA)
    • External speaker connector
  • External control:
    • RJ45
    • RS232C (in/out) D-Sub9
  • Other connections:
    • OPS
    • AC-out


  • Set Width (WxHxD):  1552.0mm x 927.1mm x 93.0mm
  • Bezel Width:  59 mm
  • Product Weight:  52kg
  • VESA Mount:  600mm x 400mm
  • Smart Insert Mount:  100mm x 100mm, 100mm x 200mm


  • Orientation:  Landscape, Portrait
  • Picture-in-Picture:
    • PBP
    • PIP
    • POP
  • Network-Controllable:
    • RJ45
    • RS232
    • DMI (One Wire)
  • Signal Loop-Through:
    • VGA
    • RS232
  • Ease of Installation:
    • AC Out
    • Smart Insert
  • Tiled Matrix:  Up to 5 x 5
  • Picture Performance:  Advanced color control
  • Remote Control Signal:  Lockable
  • Keyboard Control:
    • Hidden
    • Lockable
  • Safety Control Functions:
    • Heat Control
    • Temperature Sensor
  • Other convenience:  Carrying Handles:
  • Packaging:  Reusable box


  • Mains Power:  100 ~ 240 VAC, 50 ~ 60 Hz
  • Consumption (Typical):  250W
  • Standby Power Consumption:  <0.5W


  • Built-in speakers:  2 x 10W RMS

Operating Conditions

  • Temperature range (operation):  5 ~ 40° C
  • Temperature range (storage):  -20 ~ 60° C
  • Relative humidity:  10 ~ 90%
  • MTBF:  50,000  hour(s)


  •     On-Screen Display Languages:
    • English
    • French
    • German
    • Italian
    • Polish
    • Russian
    • Spanish
    • Turkish
    • Simplified Chinese
    • Traditional Chinese
  • Energy saving functions:  Smart Power
  • Regulatory approvals:
    • CE
    • FCC, Class B
    • UL/cUL
    • CCC
    • C-Tick
    • RoHS
    • GOST
  • Warranty:  3 year warranty

Note: All specifications subject to change without notice.
