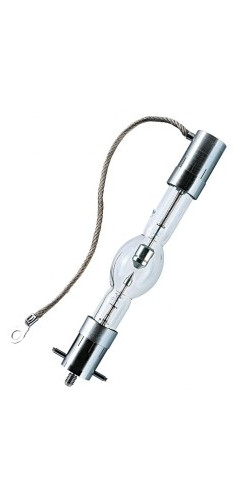

Osram Sylvania XBO1000 W/HS OFR
1000W Xenon Short-Arc Lamp

OUR PART #  XBO1000WHS/OFR

Our Price: $567.00
List Price: $585.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The OSRAM XBO 1000 W/HS OFR is a 1000 Watt Lamp that features a short arc with very high luminance for brighter screen illumination, high arc stability, constant color temperature of 6,000K throughout its lifetime, and instant light on screen, thanks to hot restart function. It's easy to maintain and has a wide dimming range.

Typical applications include:

  • Classic 35 mm film projection
  • Digital film and video projection
  • Architectural and effect light ("Light Finger")
  • Sunlight simulation

OSRAM XBO 1000 W/HS OFR Specifications:

Electrical Data

  • Nominal wattage:  1000 W
  • Lamp voltage:  19 V
  • Nominal current:  20.0 A
  • Lamp current:  50.00000 A
  • Current control range:  30…55 A

Physical

  • Diameter:  40.0 mm
  • Length:  235.0 mm
  • Length with base excl. base pins/connection:  205.00 mm
  • Light center length (LCL):  95.0mm*
    *Distance from end of base to tip of electrode (cold).
  • Electrode gap cold:  3.6mm
  • Shipping Carton Box:
    • Dimensions:  410mm x 180mm x 184mm
    • Weight:  830.80g

Temperatures

  • Maximum permitted ambient temp. pinch point:  230 °C

Lifespan

  • Lifespan:  2000 hour

Additional Product Data

  • Base anode (standard designation):  SFa27-11
  • Base cathode (standard designation):  SFcX27-8
  • Product remark:
    • OFR = Ozone-free version/H = Suitable for horizontal burning position/S = Short

Capabilities

  • Cooling:  Forced  (vertical and horizontal)
  • Burning position:  s20/p20 (for vertical burning position: anode (+) on top)

NOTE: Specifications and information subject to change without notice.

Osram Sylvania XBO1000 W/HS OFR
1000W Xenon Short-Arc Lamp

OUR PART #  XBO1000WHS/OFR

Product Information:

The OSRAM XBO 1000 W/HS OFR is a 1000 Watt Lamp that features a short arc with very high luminance for brighter screen illumination, high arc stability, constant color temperature of 6,000K throughout its lifetime, and instant light on screen, thanks to hot restart function. It's easy to maintain and has a wide dimming range.

Typical applications include:

  • Classic 35 mm film projection
  • Digital film and video projection
  • Architectural and effect light ("Light Finger")
  • Sunlight simulation

OSRAM XBO 1000 W/HS OFR Specifications:

Electrical Data

  • Nominal wattage:  1000 W
  • Lamp voltage:  19 V
  • Nominal current:  20.0 A
  • Lamp current:  50.00000 A
  • Current control range:  30…55 A

Physical

  • Diameter:  40.0 mm
  • Length:  235.0 mm
  • Length with base excl. base pins/connection:  205.00 mm
  • Light center length (LCL):  95.0mm*
    *Distance from end of base to tip of electrode (cold).
  • Electrode gap cold:  3.6mm
  • Shipping Carton Box:
    • Dimensions:  410mm x 180mm x 184mm
    • Weight:  830.80g

Temperatures

  • Maximum permitted ambient temp. pinch point:  230 °C

Lifespan

  • Lifespan:  2000 hour

Additional Product Data

  • Base anode (standard designation):  SFa27-11
  • Base cathode (standard designation):  SFcX27-8
  • Product remark:
    • OFR = Ozone-free version/H = Suitable for horizontal burning position/S = Short

Capabilities

  • Cooling:  Forced  (vertical and horizontal)
  • Burning position:  s20/p20 (for vertical burning position: anode (+) on top)

NOTE: Specifications and information subject to change without notice.
