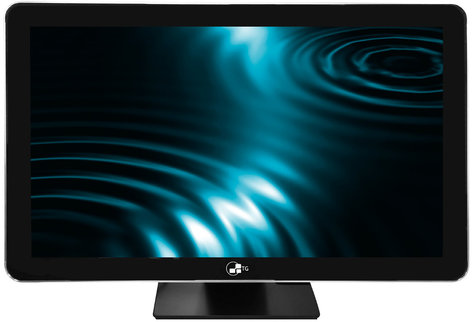

Tech Global Inc EVO221
Evolution Series 22" 10-Point PCT Multi-Touch LED Medical Grade 16:9 Touch Screen

OUR PART #  EVO221

Call for price!


The Tech Global EVO221 22" 10-Point Multi-Touch Evolution Projected Capacitive (PCT) LED Touch Screen is a medical "A" grade, 16:9 LCD panel with Edge-to-Edge sealed 3mm glass surface (for infection control). It features heavy-duty shielded board-level components, HDMI (HDCP compatible) input for expanded connectivity with advanced technology, locking power supply connection, VESA compliance, industrial cooling, 3-year warranty, and is Energy Star Compliant.

Applications for the Tech Global EVO221:

  • Medical
  • Mission Critical Applications
  • Industrial
  • Any 24/7 Applications
  • More!

Tech Global EVO221 Touch Screen Features:

  • Superior High-Performance Projected Capacitive (Unlimited TouchActivations)
  • 10 Point Multi-Touch (Finger, Capacitive Stylus, Nitrile, Latex, and VinylGloves)
  • Requires human intentional touch (HIT)
  • Anti-Fingerprint Oleophobic nano-coating
  • USB Interface - HID compliant, plug-and-play
  • Ultra Fast Precision Touch Response
  • Noise Immunity (Advanced technology to eliminate wide band and narrow bandinterference)
  • 3mm thick, sealed full glass display
  • Windows 8 (Swipe Zone)
  • Multiple monitor supported (W8)
  • Touch operation is unaffected by surface contaminants

    Tech Global EVO221 Specifications:

    • Display:
      • Type:  Medical "A" Grade Display/ Edge-Lit LED LCD
      • Viewable Image Size:  21.5"/16:9 Aspect Ratio
      • Mean Time Between Failure (MTBF):  124,000 Hours
    • Touch Interface
      • Evolution-Touch Projected Capacitive (PCT/Anti-fingerprint):  USB/ HID Compliant, Windows 8 Certified
      • Pixel Pitch:  0.25mm
      • Pixels Per Inch:  102 @ native resolution
      • Brightness:  250 cd/m2
      • Contrast Ratio:  3000:1
      • Viewing Angle (V/H):  178°/178°
      • Response Time:  Rapid Response (25ms)
    • Synchronization Range:
      • Horizontal:  31.5 kHz to 81.1 kHz (Analog/Digital)
      • Vertical:  56 to 76 Hz
    • Input Signal:
      • Video:  ANALOG 0.7 Vp-p/75 Ohms
      • Sync:  TTL Level (Positive/Negative)
      • Input Connectors:  HDMI, DVI-D, and VGA 15 pin D-sub
      • Native Resolution:  1920 x 1080 HD @ 60 Hz
      • Internal Speakers:  No
    • Power Consumption:
      • On:  18W
      • Power Savings Mode:  .35W
    • Dimensions (WxHxD):
      • Net (with stand):  20.90" x 12.93" x 8.1"
      • Net (without stand):  20.90" x 12.93" x 1.6"
      • Net Weight (with stand):  14 lbs.
      • VESA Hole Configuration Specification:  100 x 100mm
    • Environmental Conditions:
      • Operating Temperature:  41°F to 95°F (5°C to 35°C)
      • Operating Humidity:  20-80%
      • Operating Altitude:  6562 ft. (2000m )
      • Storage Temperature:  14°F to 140°F (-10°C to 60°C)
      • Storage Humidity:  10-85%
      • Storage Altitude:  40,000 ft. (12,192m)
    • Warranty:  3 years parts and labor including backlight and touchcomponents

    Tech Global Inc EVO221
    Evolution Series 22" 10-Point PCT Multi-Touch LED Medical Grade 16:9 Touch Screen

    OUR PART #  EVO221

    Product Videos:

    Product Information:

    The Tech Global EVO221 22" 10-Point Multi-Touch Evolution Projected Capacitive (PCT) LED Touch Screen is a medical "A" grade, 16:9 LCD panel with Edge-to-Edge sealed 3mm glass surface (for infection control). It features heavy-duty shielded board-level components, HDMI (HDCP compatible) input for expanded connectivity with advanced technology, locking power supply connection, VESA compliance, industrial cooling, 3-year warranty, and is Energy Star Compliant.

    Applications for the Tech Global EVO221:

    • Medical
    • Mission Critical Applications
    • Industrial
    • Any 24/7 Applications
    • More!

    Tech Global EVO221 Touch Screen Features:

    • Superior High-Performance Projected Capacitive (Unlimited TouchActivations)
    • 10 Point Multi-Touch (Finger, Capacitive Stylus, Nitrile, Latex, and VinylGloves)
    • Requires human intentional touch (HIT)
    • Anti-Fingerprint Oleophobic nano-coating
    • USB Interface - HID compliant, plug-and-play
    • Ultra Fast Precision Touch Response
    • Noise Immunity (Advanced technology to eliminate wide band and narrow bandinterference)
    • 3mm thick, sealed full glass display
    • Windows 8 (Swipe Zone)
    • Multiple monitor supported (W8)
    • Touch operation is unaffected by surface contaminants

      Tech Global EVO221 Specifications:

      • Display:
        • Type:  Medical "A" Grade Display/ Edge-Lit LED LCD
        • Viewable Image Size:  21.5"/16:9 Aspect Ratio
        • Mean Time Between Failure (MTBF):  124,000 Hours
      • Touch Interface
        • Evolution-Touch Projected Capacitive (PCT/Anti-fingerprint):  USB/ HID Compliant, Windows 8 Certified
        • Pixel Pitch:  0.25mm
        • Pixels Per Inch:  102 @ native resolution
        • Brightness:  250 cd/m2
        • Contrast Ratio:  3000:1
        • Viewing Angle (V/H):  178°/178°
        • Response Time:  Rapid Response (25ms)
      • Synchronization Range:
        • Horizontal:  31.5 kHz to 81.1 kHz (Analog/Digital)
        • Vertical:  56 to 76 Hz
      • Input Signal:
        • Video:  ANALOG 0.7 Vp-p/75 Ohms
        • Sync:  TTL Level (Positive/Negative)
        • Input Connectors:  HDMI, DVI-D, and VGA 15 pin D-sub
        • Native Resolution:  1920 x 1080 HD @ 60 Hz
        • Internal Speakers:  No
      • Power Consumption:
        • On:  18W
        • Power Savings Mode:  .35W
      • Dimensions (WxHxD):
        • Net (with stand):  20.90" x 12.93" x 8.1"
        • Net (without stand):  20.90" x 12.93" x 1.6"
        • Net Weight (with stand):  14 lbs.
        • VESA Hole Configuration Specification:  100 x 100mm
      • Environmental Conditions:
        • Operating Temperature:  41°F to 95°F (5°C to 35°C)
        • Operating Humidity:  20-80%
        • Operating Altitude:  6562 ft. (2000m )
        • Storage Temperature:  14°F to 140°F (-10°C to 60°C)
        • Storage Humidity:  10-85%
        • Storage Altitude:  40,000 ft. (12,192m)
      • Warranty:  3 years parts and labor including backlight and touchcomponents
