Tech Global Inc SP221

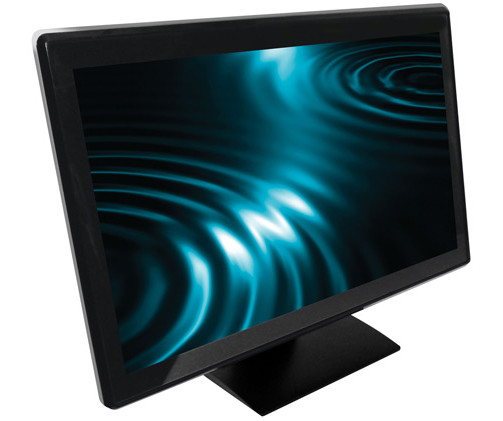

22” Spectrum-Touch 10-Point LED Touch Screen Display

OUR PART #  SP221

Call for price!


The Tech Global SP221 22" Spectrum Multi-Touch LED Touch Screen is a medical "A" grade 16:9 LCD panel with Edge-to-Edge sealed 3mm glass surface (for infection control). It features heavy-duty shielded board-level components, HDMI (HDCP compatible) input for expanded connectivity with advanced technology, locking power supply connection, VESA compliance, industrial cooling, 3-year warranty, and is Energy Star Compliant.

Applications for the Tech Global SP221:

  • Medical
  • Mission Critical Applications
  • Industrial
  • Any 24/7 Applications
  • More!

Tech Global SP221 Touch Screen Features:

  • High-Performance refracted-light touch technology (Spectrum-Touch)
  • 10 Point Multi-Touch (Any input device, latex glove, or other)
  • HID Compliant Plug & Play
  • Windows 8 Certified (Swipe Zone)
  • Ultra-Fast Response
  • USB Interface HID compliant, plug-and-play
  • Multiple monitor support (W8)
  • Windows 8, Windows 7, MAC OS X, and Linux
  • Sealed glass touch surface

Tech Global SP221 Specifications:

  • Display:
    • Type:  Medical "A" Grade Display/ Edge-Lit LED LCD
    • Viewable Image Size:  21.5"/16:9 Aspect Ratio
    • Mean Time Between Failure (MTBF):  124,000 Hours
  • Touch Interface
    • Spectrum-Touch:  USB/ HID Compliant, Windows 8 Certified
    • Pixel Pitch:  0.25mm
    • Pixels Per Inch:  102 @ native resolution
    • Brightness:  250 cd/m2
    • Contrast Ratio:  3000:1
    • Viewing Angle (V/H):  178°, 178°
    • Response Time:  Rapid Response (25ms)
  • Synchronization Range:
    • Horizontal:  31.5 kHz to 81.1 kHz (Analog/Digital)
    • Vertical:  56 to 76 Hz
  • Input Signal:
    • Video:  ANALOG 0.7 Vp-p/75 Ohms
    • Sync:  TTL Level (Positive/Negative)
    • Input Connectors:  HDMI, DVI-D and VGA 15 pin D-sub
    • Native Resolution:  1920 x 1080 HD @ 60 Hz
    • Internal Speakers:  No
  • Power Consumption:
    • On:  18W
    • Power Savings Mode:  .35W
  • Dimensions (WxHxD):
    • Net (with stand):  20.90" x 12.93" x 8.1"
    • Net (without stand):  20.90" x 12.93" x 1.6"
    • Net Weight (with stand):  14 lbs.
    • VESA Hole Configuration Specification:  100 x 100mm
  • Environmental Conditions:
    • Operating Temperature:  41°F to 95°F (5°C to 35°C)
    • Operating Humidity:  20-80%
    • Operating Altitude:  6562 ft. (2000m )
    • Storage Temperature:  14°F to 140°F (-10°C to 60°C)
    • Storage Humidity:  10-85%
    • Storage Altitude:  40,000 ft. (12,192m)
  • Warranty:  3 years parts and labor including backlight and touch components

Tech Global Inc SP221
22” Spectrum-Touch 10-Point LED Touch Screen Display

OUR PART #  SP221

Product Information:

The Tech Global SP221 22" Spectrum Multi-Touch LED Touch Screen is a medical "A" grade 16:9 LCD panel with Edge-to-Edge sealed 3mm glass surface (for infection control). It features heavy-duty shielded board-level components, HDMI (HDCP compatible) input for expanded connectivity with advanced technology, locking power supply connection, VESA compliance, industrial cooling, 3-year warranty, and is Energy Star Compliant.

Applications for the Tech Global SP221:

  • Medical
  • Mission Critical Applications
  • Industrial
  • Any 24/7 Applications
  • More!

Tech Global SP221 Touch Screen Features:

  • High-Performance refracted-light touch technology (Spectrum-Touch)
  • 10 Point Multi-Touch (Any input device, latex glove, or other)
  • HID Compliant Plug & Play
  • Windows 8 Certified (Swipe Zone)
  • Ultra-Fast Response
  • USB Interface HID compliant, plug-and-play
  • Multiple monitor support (W8)
  • Windows 8, Windows 7, MAC OS X, and Linux
  • Sealed glass touch surface

Tech Global SP221 Specifications:

  • Display:
    • Type:  Medical "A" Grade Display/ Edge-Lit LED LCD
    • Viewable Image Size:  21.5"/16:9 Aspect Ratio
    • Mean Time Between Failure (MTBF):  124,000 Hours
  • Touch Interface
    • Spectrum-Touch:  USB/ HID Compliant, Windows 8 Certified
    • Pixel Pitch:  0.25mm
    • Pixels Per Inch:  102 @ native resolution
    • Brightness:  250 cd/m2
    • Contrast Ratio:  3000:1
    • Viewing Angle (V/H):  178°, 178°
    • Response Time:  Rapid Response (25ms)
  • Synchronization Range:
    • Horizontal:  31.5 kHz to 81.1 kHz (Analog/Digital)
    • Vertical:  56 to 76 Hz
  • Input Signal:
    • Video:  ANALOG 0.7 Vp-p/75 Ohms
    • Sync:  TTL Level (Positive/Negative)
    • Input Connectors:  HDMI, DVI-D and VGA 15 pin D-sub
    • Native Resolution:  1920 x 1080 HD @ 60 Hz
    • Internal Speakers:  No
  • Power Consumption:
    • On:  18W
    • Power Savings Mode:  .35W
  • Dimensions (WxHxD):
    • Net (with stand):  20.90" x 12.93" x 8.1"
    • Net (without stand):  20.90" x 12.93" x 1.6"
    • Net Weight (with stand):  14 lbs.
    • VESA Hole Configuration Specification:  100 x 100mm
  • Environmental Conditions:
    • Operating Temperature:  41°F to 95°F (5°C to 35°C)
    • Operating Humidity:  20-80%
    • Operating Altitude:  6562 ft. (2000m )
    • Storage Temperature:  14°F to 140°F (-10°C to 60°C)
    • Storage Humidity:  10-85%
    • Storage Altitude:  40,000 ft. (12,192m)
  • Warranty:  3 years parts and labor including backlight and touch components
