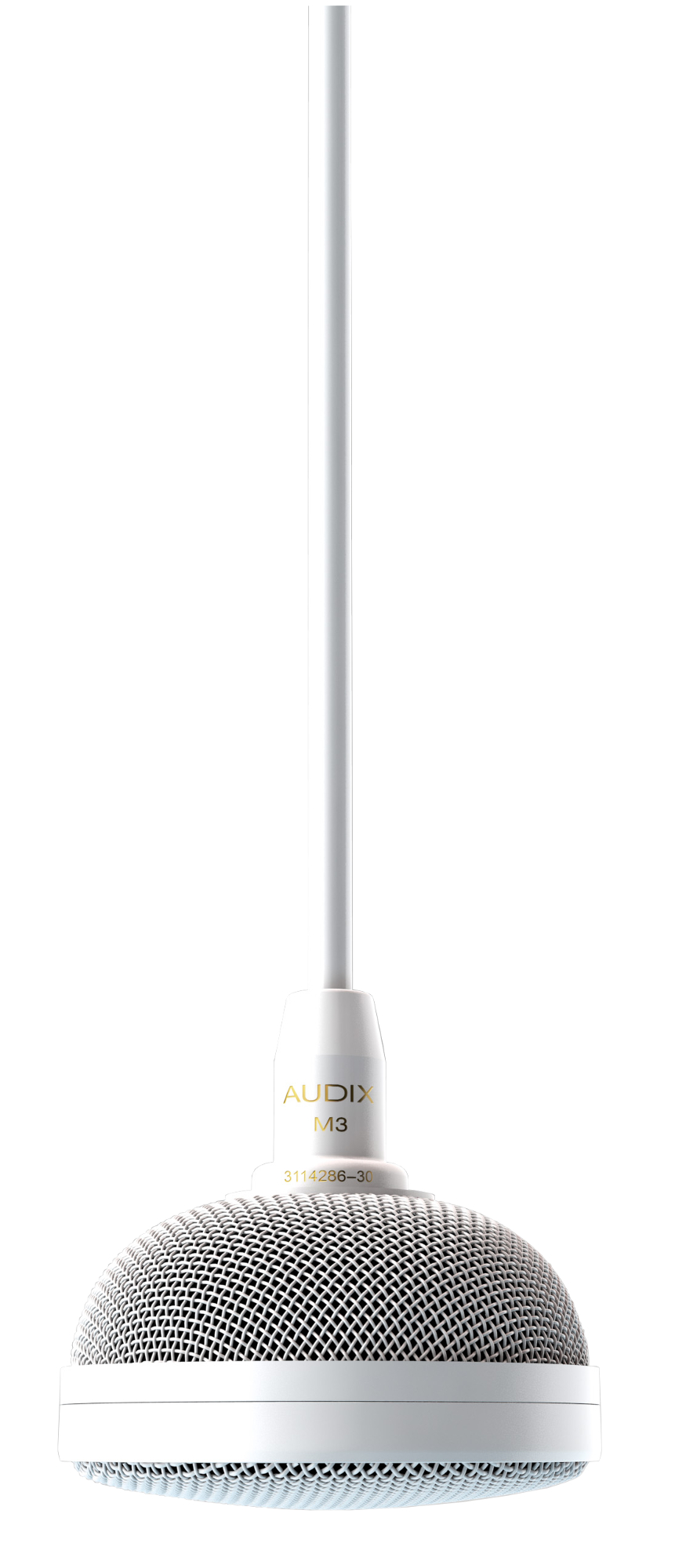

Audix M3W
Tri-Element Hanging Ceiling Microphone in White

OUR PART #:  M3W

The Audix M3 is an innovative, tri-element hanging microphone system designed for applications where aesthetics, sound quality, and ease of installation are critical.
Learn More

Call for price! Not available online.

Similar Products

The Audix M3 is an innovative, tri-element hanging microphone system designed for applications where aesthetics, sound quality, and ease of installation are critical. The M3 is an ideal audio capture solution for video conferencing, distance learning, courtroom activities, and surgical procedures. It can also be used for ambient room miking and surveillance.

The M3 incorporates three phase coherent hypercardioid capsules with tailored frequency response optimized for speech intelligibility. This is accomplished by minimizing frequencies caused by noise, vibration, paper shuffling, keyboard strokes, fans, and heating/air conditioning. Low noise preamp circuitry is employed for highest possible signal to noise and studio quality sound. A high-quality silicone jacketed microphone cable ensures a balanced, shielded signal and a very clean look. Electronics above the ceiling are housed within a plenum rated junction box and cable connections are made via an RJ45 connector embedded within a proprietary brass housing for an airtight seal.

The M3 connects to the input of a mixer or DSP console via a breakout cable (provided). The breakout cable consists of a female RJ45 connector that terminates in either three terminal block or XLR connectors. A variety of optional shielded CAT7 cable lengths (from plenum rated junction box to break out cable) are available.

Installing the M3 requires drilling just one 5/8-inch hole in the ceiling, with no additional tools needed. The M3 mounting hardware easily adjusts the cable hanging height up to four feet from the ceiling surface without removing ceiling tiles. A wire safety cable provides additional seismic restraint.

Audix M3W Includes:

  • Junction box
  • Breakout cable

Audix M3W Features:

  • 100% RF shielding and immunity
  • Gold diaphragm condenser capsules with studio qualitysound
  • Low impedance design allows for extremely long cableruns (if required) without cross talk or interference
  • Frequency and pattern tailored for voice clarity andrejection of extraneous noise
  • Evenly dispersed sound with undetectable phase
  • High-quality silicone jacketed microphone cable withadjustable length and position
  • Plenum rated junction box with RJ45 connector
  • All visible components of the microphone and cableare same color: white
  • TAA compliant
  • Very high output, low self-noise
  • Easy to install

Audix M3W Specifications:

  • Type: Condenser
  • Polar Pattern: Hypercardioid
  • Frequency Response: 30 Hz - 19kHz (Tailored)
  • Optimized Response: 70 Hz - 9 kHz
  • Output Impedance: 150 Ohms balanced
  • Sensitivity: 23 mV / Pascal @ 1k
  • Off Axis Rejection:
    • 1 capsule: >23 dB at 180°, relative to 0°
    • 2 capsules: >18 dB at 120°
    • 3 capsules: >9 dB at 60°
  • Signal/Noise Ratio (A-weighted): 72 dB
  • Equivalent Noise Level (A-weighted): 22 dB(A-weighted)
  • Maximum SPL @ .5%THD: = 128 dB
  • Dynamic Range: 106 dB
  • Power Requirements: 18 - 52 Volts phantom
  • Cable/Connector: Terminal block or XLR
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin2 relative to pin 3
