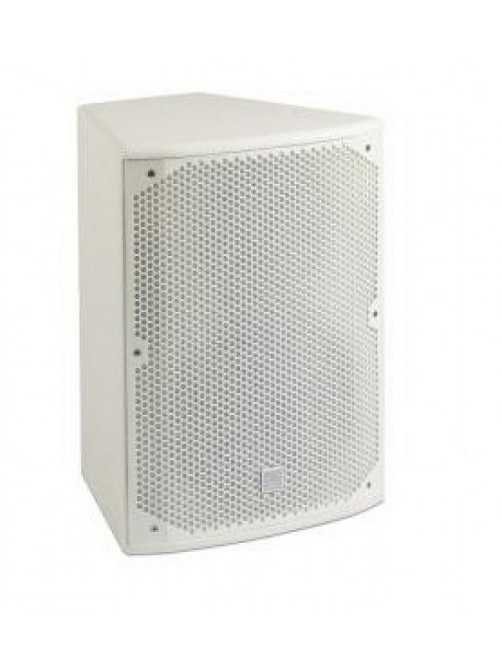

Turbosound TCX-8-WH
200W 8" Passive 2-Way Speaker in White

OUR PART #  TCX-8-WH

Our Price: $399.99
List Price: $459.99
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TCX-8 is a compact passive two-way loudspeaker consisting of an 8” low frequency driver and a 1” high frequency compression driver on a Converging Elliptical Waveguide™ in a trapezoidal enclosure. When permanently installed the trapezoidal cabinet presents a discreet appearance with no visible side handles, while for portable applications the pole mount blanking plug can be removed for use with speaker stands and poles, and a single carrying handle is provided for transportation. The TCX-8 features a Converging Elliptical Waveguide, generating a smooth wavefront while giving excellent pattern control. The waveguide is rotatable through 90°, allowing a swap of the horizontal and vertical dispersion patterns. The cabinet includes internal threaded rigging points for use with Turbosound wall and ceiling brackets, and OmniMount™ loudspeaker brackets. It is finished as standard in black textured paint (or optional white), and a rear connector panel provides two Speakon NL4 connectors wired in parallel with a 4-way barrier strip connector.

When used with optional Turbosound Loudspeaker Management Systems, TCX loudspeakers can be controlled and monitored over a BVNet network using TurboDrive™ control software.

Turbosound TCX-8-WH Features:

  • Compact enclosure
  • Rotatable Converging
  • Elliptical Waveguide™
  • Pole mount socket
  • Wide dispersion
  • Internal rigging points
  • OmniMount™ compatible
  • Speakon NL4 and barrier strip connectors
  • EASE GLL file supported
  • Applications:
    • House of Worship
    • Live music venues
    • Corporate / industrial
    • Mobile DJ

Turbosound TCX-8-WH Specifications:

  • Dimensions (HxWxD): 408mm x 312mm x 280mm (16.1” x 12.3” x 11”)
  • Net weight: 11.1kg (24.4lbs)
  • Components:
    • 1 x 8” (203mm) LF driver
    • 1 x 1” (25mm) HF driver on a Converging Elliptical Waveguide™
  • Frequency response: 100Hz - 20kHz ±3dB, 70Hz - 20kHz ±10dB
  • Nominal dispersion: 90°H x 60°V @-6db points
  • Power handling: 200 watts R.M.S., 400 watts program
  • Sensitivity: 94dB 1w @ 1m
  • Maximum SPL: 117dB continuous, 123dB peak
  • Nominal impedance: 8 ohms
  • Crossover: 3k5Hz
  • Construction: 12mm (1/2”) birch plywood
  • Grille: Powder coated perforated mild steel
  • Connectors:
    • (2) Speakon NL4MP, wired pin 1+: positive, pin 1- : negative, pins 2+ and 2- N/C
    • (1) 4-way barrier strip connector
  • Flying hardware:
    • (10) M10 internal rigging points for eyebolts
    • (4) M8 internal rigging points for Turbosound wall and ceiling brackets (60mm x 60mm)
    • (4) M6 internal rigging points for OmniMount™ brackets (108mm x 51mm)
  • Options: White semi-matt textured paint
  • Spares and accessories (not included):
    •  LS-8094 8” LF loudspeaker
    •  RC-8094 Recone kit
    •  CD-119 1” HF compression driver
    •  RD-119 Replacement diaphragm
    •  TCX-001 Passive crossover 10G070/2
    •  WB-20 Wall bracket
    •  CB-55 Ceiling bracket
    •  PB-55 Pole bracket
    •  TCX-SB8 Swivel bracket
    •  PA-90 Speaker pole 90cm
    •  PA-100 Speaker pole 100cm

Turbosound TCX-8-WH
200W 8" Passive 2-Way Speaker in White

OUR PART #  TCX-8-WH

Product Information:

The TCX-8 is a compact passive two-way loudspeaker consisting of an 8” low frequency driver and a 1” high frequency compression driver on a Converging Elliptical Waveguide™ in a trapezoidal enclosure. When permanently installed the trapezoidal cabinet presents a discreet appearance with no visible side handles, while for portable applications the pole mount blanking plug can be removed for use with speaker stands and poles, and a single carrying handle is provided for transportation. The TCX-8 features a Converging Elliptical Waveguide, generating a smooth wavefront while giving excellent pattern control. The waveguide is rotatable through 90°, allowing a swap of the horizontal and vertical dispersion patterns. The cabinet includes internal threaded rigging points for use with Turbosound wall and ceiling brackets, and OmniMount™ loudspeaker brackets. It is finished as standard in black textured paint (or optional white), and a rear connector panel provides two Speakon NL4 connectors wired in parallel with a 4-way barrier strip connector.

When used with optional Turbosound Loudspeaker Management Systems, TCX loudspeakers can be controlled and monitored over a BVNet network using TurboDrive™ control software.

Turbosound TCX-8-WH Features:

  • Compact enclosure
  • Rotatable Converging
  • Elliptical Waveguide™
  • Pole mount socket
  • Wide dispersion
  • Internal rigging points
  • OmniMount™ compatible
  • Speakon NL4 and barrier strip connectors
  • EASE GLL file supported
  • Applications:
    • House of Worship
    • Live music venues
    • Corporate / industrial
    • Mobile DJ

Turbosound TCX-8-WH Specifications:

  • Dimensions (HxWxD): 408mm x 312mm x 280mm (16.1” x 12.3” x 11”)
  • Net weight: 11.1kg (24.4lbs)
  • Components:
    • 1 x 8” (203mm) LF driver
    • 1 x 1” (25mm) HF driver on a Converging Elliptical Waveguide™
  • Frequency response: 100Hz - 20kHz ±3dB, 70Hz - 20kHz ±10dB
  • Nominal dispersion: 90°H x 60°V @-6db points
  • Power handling: 200 watts R.M.S., 400 watts program
  • Sensitivity: 94dB 1w @ 1m
  • Maximum SPL: 117dB continuous, 123dB peak
  • Nominal impedance: 8 ohms
  • Crossover: 3k5Hz
  • Construction: 12mm (1/2”) birch plywood
  • Grille: Powder coated perforated mild steel
  • Connectors:
    • (2) Speakon NL4MP, wired pin 1+: positive, pin 1- : negative, pins 2+ and 2- N/C
    • (1) 4-way barrier strip connector
  • Flying hardware:
    • (10) M10 internal rigging points for eyebolts
    • (4) M8 internal rigging points for Turbosound wall and ceiling brackets (60mm x 60mm)
    • (4) M6 internal rigging points for OmniMount™ brackets (108mm x 51mm)
  • Options: White semi-matt textured paint
  • Spares and accessories (not included):
    •  LS-8094 8” LF loudspeaker
    •  RC-8094 Recone kit
    •  CD-119 1” HF compression driver
    •  RD-119 Replacement diaphragm
    •  TCX-001 Passive crossover 10G070/2
    •  WB-20 Wall bracket
    •  CB-55 Ceiling bracket
    •  PB-55 Pole bracket
    •  TCX-SB8 Swivel bracket
    •  PA-90 Speaker pole 90cm
    •  PA-100 Speaker pole 100cm
