Kramer VP-444
12-Input HDMI and Analog ProScale Presentation Digital Scaler/Switcher with Microphone Inputs plus Ethernet Control

OUR PART #:  VP444

The Kramer VP-444 is a 12-Input high-performance ProScale™ presentation digital scaler/switcher for HDMI and computer graphics signals.
Learn More
Our Price: $1,196.00
List Price: $1,495.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP-444
Qty:
In Stock

Similar Products

The Kramer VP-444 is a 12-Input high-performance ProScale™ presentation digital scaler/switcher for HDMI and computer graphics signals. The unit scales the video, embeds the audio, and outputs the signal to two HDMI (with embedded audio) outputs (with S/PDIF and balanced stereo audio) simultaneously.

Kramer VP-444 Applications:

  • Projection systems in conference rooms, boardrooms, classrooms, hotels and churches
  • Home theater up-scaling

Kramer VP-444 Features:

  • Kramer’s PixPerfect™ Scaling Technology - Kramer’s precision pixel mapping and high-quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down scaling of all video input signals.
  • HDTV Compatible.
  • HDCP Compliant.
  • Video Inputs - 10 HDMI & 2 computer graphics video on 15-pin HD connectors.
  • Scaled Outputs - 2 HDMI.
  • 22 Output Resolutions - Up to WUXGA/1080p.
  • 2 Microphone Inputs - For mixing, switching or talk-over (with 48V phantom selection).
  • Companion AFV (Audio-Follow-Video) - Stereo audio for every input (on terminal blocks).
  • Audio Inputs - 12 unbalanced stereo on terminal blocks & embedded audio for HDMI inputs, each with individual level controls.
  • Audio Outputs - 1 S/PDIF on an RCA connector, 1 balanced stereo audio on a terminal block, embedded audio on the HDMI outputs.
  • Multiple Aspect Ratio Selections - Full, overscan, underscan, letterbox, and panscan.
  • Audio DSP - Powerful digital audio signal processing, including audio equalization, mixing, delay, etc.
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast & brightness.
  • Color Sampling - Supports 4:4:4 (RGB and YUV) as well as 4:4:2 (YUV) color sampling.
  • Constant Output Sync - No disruption on the output while switching between inputs and when no video is detected.

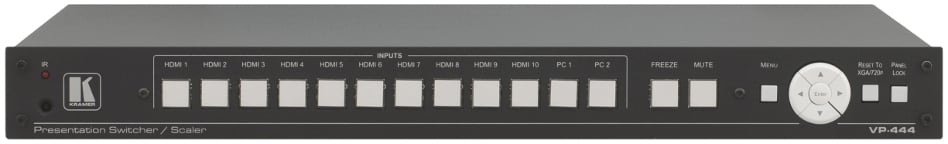

  • Front Panel Control - Audio mute & freeze frame.
  • Built-in Web Pages.
  • Front Panel Lockout.
  • Non-Volatile Memory - Saves final settings.
  • Flexible Control Options - Front panel, IR remote with OSD (on-screen display), Ethernet with built-in Web pages & RS-232.
  • Worldwide Power Supply - 100-240V AC.
  • Size - Standard 19" (1U). Rack "ears" included.

Kramer VP-444 Specifications:

  • Inputs:  10 HDMI connectors (HDMI, HDCP version 1.1), 2 VGA on a 15-pin HD connector, 1 unbalanced stereo audio on 12 3-pin terminal block connectors, 2 mic on 6mm jack connectors (with selectable 48V phantom power).
  • Outputs:  2 HDMI connectors (HDMI, HDCP version 1.1), 1 S/PDIF on an RCA connector, 1 unbalanced stereo audio on a 5-pin terminal block connector.
  • Bandwidth:  Up to 1080p, UXGA.
  • Switching Time Between Inputs:  2 to 3 seconds.
  • Video Latency:  Less than 2 frames.
  • Output Resolutions:  Native, 640x480 @60Hz, 800x600 @60Hz, 1024x768 @60Hz, 1280x768 @60Hz, 1360x768 @60Hz, 1280x720 @60Hz, 1280x800 @60Hz, 1280x1024 @60Hz, 1440x900 @60Hz, 1400x1050 @60Hz, 1680x1050 @60Hz, 1600x1200 @60Hz, 1920x1080 @60Hz, 1920x1200 @60Hz, 480p @60Hz, 720p @60Hz, 1080i @60Hz, 1080p @60Hz, 576p @50Hz, 720p @50Hz, 1080i @50Hz, 1080p @50Hz.
  • Controls:  HDMI 1 to HDMI 10 and PC 1 to PC 2 input selector buttons, Freeze, Mute buttons, Menu and navigation buttons, Reset to XGA/720p and lock buttons, RS-232, IR, Ethernet (OSD and Web pages), USB for firmware upgrading.
  • Power Consumption:  100-240V AC, 22VA max.
  • Operating Temperature:  32° to 104°F (0° to +40°C).
  • Storage Temperature:  -40° to 158°F (-40° to +70°C).
  • Humidity:  10% to 90%, RHL non-condensing.
  • Dimensions (WxDxH):  19" x 7" x 1U  rack-mountable.
  • Weight:  6 lbs. (2.7 kg) approx.
  • Included Accessories:  Power cord, rack ears, IR remote control.
