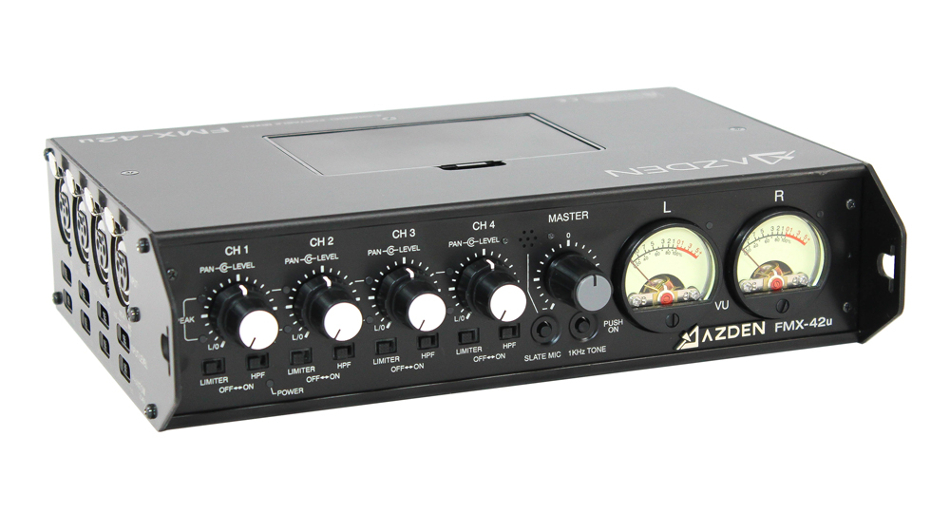

Azden FMX-42u
4-Channel Portable Field Mixer with USB Digital Audio Output

OUR PART #:  FMX-42U

Azden's FMX-42 portable mixer has been trusted by audio professionals in the field for over a decade.
Learn More
Our Price: $549.00
List Price: $760.00
You save 28%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Azden FMX-42u
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Azden's FMX-42 portable mixer has been trusted by audio professionals in the field for over a decade. Its extensive set of features, handcrafted quality and affordability have made it one of the most popular portable mixers on the market. Now with the new FMX-42u, Azden has added a USB digital audio output for even more flexibility.

The USB Out on the FMX-42u is designed to connect to a computer, smartphone or tablet and acts as a secondary stereo audio output (necessary USB cables and adapters are sold separately). This flexible feature could now allow you to use a mobile device or laptop computer as a backup digital recorder, use up to 4 XLR microphones while shooting video with a smartphone or tablet, or even use the FMX-42u as an in-studio mixer for web streaming or podcasting.

The FMX-42u still boasts the many features of its predecessor, which include 4 balanced XLR line/mic inputs with individual level and pan controls, switchable (per channel) 48V phantom power and limiting, professional quality VU meters for accurate level setting, master level control, 1 kHz tone generator, 2 balanced XLR outputs (line/mic switchable), stereo mini-jack output for DV cameras and a headphone output with level control.

The FMX-42u can be powered by either 6 internal “AA” batteries or an optional 12V DC external power supply (Azden part #BC-27H). A ballistic nylon carrying case is included.

Azden FMX-42u Includes:

  • FMX-42u portable field mixer
  • Nylon carrying case
  • Owner's manual

Azden FMX-42u Features:

  • Handcrafted in Japan
  • 2 Channel USB digital audio output
  • USB out connects to computer, smartphone or tablet
  • 4 balanced XLR line/mic inputs and pan controls
  • Switchable 48V phantom power and limiting
  • Professional quality VU meters
  • 2 balanced XLR outputs (line/mic switchable)
  • Stereo mini-jack output for DV cameras
  • 6x AA battery powered
  • Optional A/C adapter

Azden FMX-42u Specifications:

  • General:
    • Frequency Response:  20 Hz - 30 kHz (+0/-1.5dB)
    • Monitor Output:  30 Hz - 30 kHz (+0/-2dB)
    • Signal-to-Noise Balanced Output:  -120dBu (A weighted, input equivalent level)
    • T.H.D. Balanced Output:  < 0.005% @ 1 kHz (at LINE position +19dBu output)
    • Phantom Power Voltage:  48V (±1.5V)
    • Sample Tone Frequency:  1 kHz
    • Battery Requirement:  6 Alkaline "AA"
    • External Power:  10.5 ~ 17V DC @ 200mA
    • Dimensions (WxDxH):  9" x 6-1/2" x 2-1/4" (220mm x 160mm x 56mm)(without protrusions)
    • Weight:  2.9 lbs (1.3 kg)(without batteries)
  • Input:
    • Balanced Input:  XLR 3-pine Female x4 (CH1, 2, 3 & 4)
    • Line Level:
      • Standard:  +4dBu (electronically balanced)
      • Maximum:  > +26dBu
      • Impedance:  20 kOhms
    • MIC HI Level:
      • Standard:  -38dBu (electronically balanced)
      • Maximum:  +4dBu
      • Impedance:  2 kOhms
    • MIC LO Level:
      • Standard:  -58dBu (electronically balanced)
      • Maximum:  -15dBu
      • Impedance:  2 kOhms
    • High Pass Filter (HPF):  100 Hz; 6dB/Octave
    • Return Inputs:  Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P
    • Input Level:  -20dBu / 19dBu (unbalanced)
    • Impedance:  11 kOhms
  • Output:
    • Balanced Outputs:  XLR 3-pin Male x2 (Output L & R)
    • Unbalanced Output:  1/8" (3.5mm) Stereo Mini-Jack
    • Monitor Output:  1/4" (6.3mm) Stereo Jack
    • Digital Signal Output:  USB mini-B connector (female)
    • Balanced Level output:
      • +4dBu Line:
        • Standard:  +4dBu (electronically balanced, 5 kOhm load)
        • Maximum:  +20dBu (electronically balanced, 5 kOhm load)
        • Impedance:  600 Ohms
      • -36dBu Mic:
        • Standard:  -36dBu (electronically balanced, 5 kOhm load)
        • Maximum:  -20dBu (electronically balanced, 5 kOhm load)
        • Impedance:  600 Ohms
    • Unbalanced Output Level:
      • Maximum:  -20dBu (electronically balanced, 2 kOhm load)
      • Impedance:  120 Ohms
    • Monitor Output:
      • Max Output:  +1dBu (32 Ohm load at 9V)
      • 16 - 100 Ohm load recommended
    • Meters:  Standard output level - 0VU (+4dBu)
  • Digital Signal Output:
    • Interface Format:  USB 2.0 Full Speed
    • Audio Data Format:  Isochronous Data Format
    • Sampling Frequencies:  16 / 22.05 / 32 / 44.1 / 48 kHz Compatible
    • Bit Depth:  8 / 16-bit Compatible
    • Channels:  2
    • Device Name:  USB AUDIO CODEC
