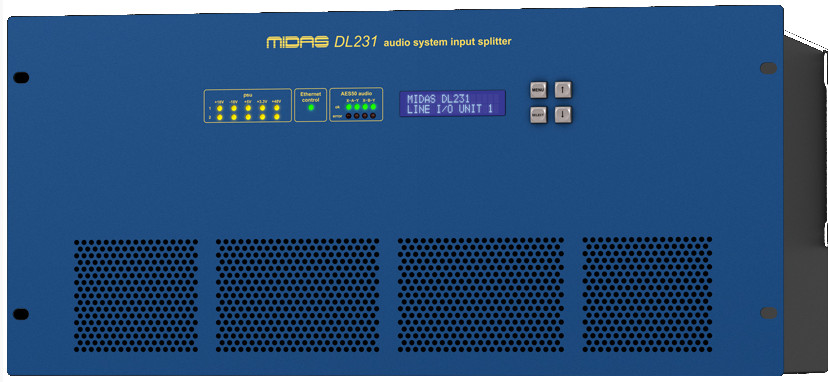

Midas DL231
24 In / 24 Out Active Microphone Splitter with 2 Mic Preamps per Input

OUR PART #:  DL231

The MIDAS DL231 Active Microphone Splitter features two independent MIDAS mic preamps per channel, as well as dual-redundant network ports and power supplies.
Learn More
Our Price: $4,999.99
Write the first review.
Midas DL231
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The MIDAS DL231 Active Microphone Splitter features two independent MIDAS mic preamps per channel, as well as dual-redundant network ports and power supplies.

Analog Meets Digital - The Best of Both Worlds

The DL231 combines the warmth and authenticity of analog circuitry with the precision and agility of state-of-the-art digital techniques. Extreme care has been taken in the planning and execution of the PCB layout to maintain exceptional grounding and analogue/digital separation.

Versatility Without Compromise

As with all MIDAS products versatility without compromise is a priority, that’s why the DL231 comes fitted with MIDI (In, Out and Thru) and an Ethernet Control port, plus four AES50 ports to handle the independent dual-redundant digital audio interfaces. The DL231 is capable of being switched between 24-bit 96 kHz and 48 kHz operation. A Mute All Outputs button is provided for convenient on-stage re-patching – and the DL231 is powered by dual-redundant PSUs for superb reliability.

Housed in a road-ready, rugged rack-mountable chassis, the DL231 is ideally suited for transport and storage in standard flight cases (not included).

Midas DL231 24 In / 24 Out Active Microphone Splitter Features:

  • 2 award-winning MIDAS microphone preamplifiers per channel with switchable +48 V phantom power
  • 2 dual redundant AES50 network ports with independent phase-locked loop synchronization
  • 24 electronically balanced output channels can be sourced from microphone preamplifiers or AES50 ports
  • Remote operation up to 100 m via CAT5/5e cable
  • 24 bit audio operation with 96 kHz sample rate
  • All settings programmable from front panel controls or console
  • PSU status indicator LEDs and configuration LCD display on front panel
  • Features Neutrik etherCON* AES50 network ports
  • Rugged 5RU rackmount chassis for durability in portable applications
  • Dual redundant auto-ranging universal switch-mode power supplies
  • 3-Year Warranty Program
  • Designed and engineered in England
