High Performance Audio System Engine with 192 Bidirectional Channels

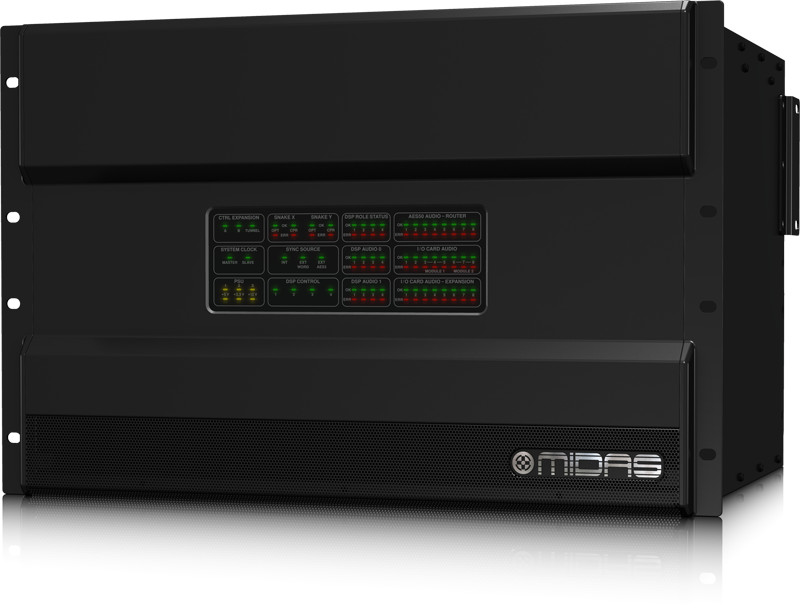

At the center of the PRO X system is the MIDAS NEUTRON High Performance Audio System Engine.
Learn More

Call for price! Not available online.
List Price: $24,999.99

Related Products

At the center of the PRO X system is the MIDAS NEUTRON High Performance Audio System Engine. With 192 bidirectional channels and a 96 kHz sample rate, NEUTRON is fully expandable and capable of routing up to 800 audio paths.

100 Gigaflops

NEUTRON's latest generation DSPs and high-performance FPGA (Field-Programmable Gate Array) coupled with MIMD (Multiple Instruction, Multiple Data) architecture delivers more than 100 Gigaflops of real-time audio processing - more than three times the power of other competitors.

Adding I/O boxes with the best converters and custom processing algorithms that draw upon over 40 years of listening experience at the top of the industry, NEUTRON takes the audio quality of those channels to another level.

HyperMAC and SuperMAC Digital Audio Interconnections

HyperMAC and SuperMAC (AES50-Compliant) from KLARK TEKNIK simultaneously provide high channel counts, ultra-low deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy and ease of deployment and use.

This unique combination is also ideal for managing applications such as studio recording and post-production, outside broadcast and audio routing infrastructure.

  • Single cable duplex interconnection for audio and sample clocks
  • Ethernet physical layer audio data transmission
  • High channel count and ultra-low deterministic latency
  • Accurate phase-aligned clock distribution
  • Comprehensive error detection and management
  • Provision for redundant networking
  • Minimal configuration – total ease of deployment anduse
  • Ethernet TCP/IP protocol-compatible auxiliary data channel
  • OEM modules available from developer partners
  • SuperMAC offers: 24 bidirectional audio channels over Cat5/Cat 5e cable (96 kHz)
  • HyperMAC offers: 192 bidirectional audio channels over Cat5e/Cat 6 cable, or 50/125 µm multimode optical fiber (96 kHz)

192 Channel Multi-Core

NEUTRON features dual-redundant HyperMAC ports (both Cat5e and Optical), which provides the digital equivalent of a 384-way (192 in / 192 out) multi-core between the stage and Front of House (up to 500m).

Eight AES50 ports facilitate connections to the DL Series stage boxes and other AES50 I/O hardware, such as the KLARK TEKNIK DN9620 AES50 Extender and DN9650 Network Bridge.

Automatic Time Alignment

Just like all PRO Series systems, NEUTRON features comprehensive, automatic latency management, which manages all internal routing and processing latency. All audio samples are synchronised before summing, resulting in absolute phase coherence at the outputs, without the "comb filtering" effects of competing products that often result in specific frequencies being cancelled out completely.

MIDAS NEUTRON High Performance Audio System Engine Features:

  • 108 Gigaflops digital signal processing performance
  • HyperMAC Router with 192 bidirectional channels over copper and optical fiber
  • 40-bit floating point processing with 96 kHz sample rate
  • Dual redundant connection to control center for enhanced reliability
  • Snake connections up to 500 m with optical fiber or100 m with CAT5/5e cable
  • Fitted with 4 DSP cards as standard for N+1 redundant operation
  • Expansion card slot for additional connectivity options
  • Features Neutrik etherCON AES50 and Ethernet control network ports
  • Dual-fiber Neutrik opticalCON DUO connector used for optical fiber snake connection
  • Rugged 7RU rackmount chassis for durability inportable applications
  • Three bay auto-ranging universal switch-mode power supply with N+1 redundancy
  • 3-Year Warranty Program
  • Designed and engineered in England
