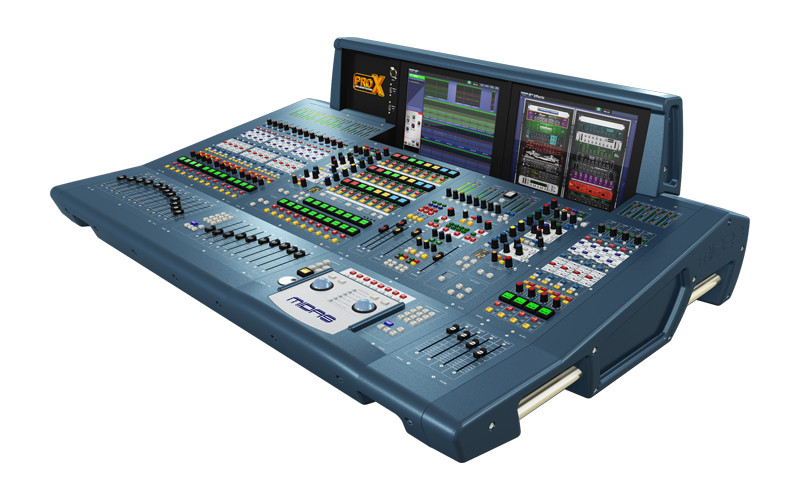

Pro X Control Center - Touring Package


The PRO Series family moves up a gear with the PRO X control centre and the industry-changing NEUTRON Audio System Engine.
Learn More

Call for price! Not available online.
List Price: $40,499.99

The PRO Series family moves up a gear with the PRO X control centre and the industry-changing NEUTRON Audio System Engine. Featuring 168 simultaneous input channels and 99 time-aligned and phase coherent buses, the PRO X is a truly impressive digital control surface for the engineer whose very livelihood depends on both unparalleled functionality and reliability. True and consistent 96 kHz sampling frequency and 40 bit floating point processing provide exemplary audio processing, and the oversampled digital signal processing algorithms, combined with the fully interpolated and touch sensitive user controls, result in the smooth continuous response and immediacy of working on an analogue console. Parameter adjustment becomes fast and easy, and the continuous phase shift of a swept frequency control is heard without the quantisation effects exhibited by competing digital consoles.

SuperMAC (AES50-Compliant) and HyperMAC from KLARK TEKNIK simultaneously provide high channel counts, ultra low deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, and ease of deployment and use – to meet the needs of the live performance concert sound industry.

This unique combination is also ideal for managing applications such as studio recording and post-production, studio and outside broadcast and audio routing infrastructure.

  • Single cable duplex interconnection for audio andsample clocks
  • Ethernet physical layer audio data transmission
  • High channel count and ultra-low deterministiclatency
  • Accurate phase-aligned clock distribution.
  • Comprehensive error detection and management
  • Provision for redundant networking
  • Minimal configuration – total ease of deployment anduse
  • Ethernet TCP/IP protocol-compatible auxiliary datachannel
  • OEM modules available from developer partners
  • SuperMAC offers:
    • 48 bidirectional audio channels over Cat 5/Cat 5e cable (48 kHz)
    • 24 bidirectional audio channels over Cat 5/Cat 5e cable (96 kHz)
  • HyperMAC offers:
    • 192 bidirectional audio channels over Cat 5e/Cat 6 cable, or
    • 50/125 µm multimode optical fibre (96 kHz)
  • Total Redundancy

The PRO X has dual-redundant control computer and three removable power supplies, only two of which are required for full operation. The power supplies, which are interchangeable with the PSUs in the NEUTRON Engine, are auto-voltage sensing, auto-switchover, and are fitted with locking AC connectors. No other console goes further at setting your mind at ease. This means that during a show the user can focus on what is most important – and treat the audience to a flawless sonic experience.

The PRO X also has dual-redundant HyperMAC ports (both Cat 5e and Optical), which provide the digital equivalent of a 384-way (192 in / 192 out) multi-core between the stage and FOH, up to 500 m.

Just like all PRO Series systems, the PRO X provides comprehensive, automatic latency management of all internal routing and processing latency – and also includes compensation for external analogue inserts. All audio samples are synchronised before summing, resulting in absolute phase coherence at the outputs, without the “comb filtering” effects of competing products that often result in specific frequencies being cancelled out completely.

The PRO X can simultaneously process up to 24 internal multichannel FX and NEUTRON’s 40 bit floating-point audio processing hosts a wide choice of virtual FX devices, which range from dual-mono delay units, stereo modulation and many diverse reverb FX, multiband compression, dynamic EQ and multichannel dual-function dynamics processing. Up to 36 1/3 octave KLARK TEKNIK DN370 Graphic Equalisers (GEQs) are provided, which can be patched into any output.

The PRO X Control Centre features dual 15" full colour daylight-viewable TFT displays for use in all environments, both inside and outdoors. The 10 VCA (variable control association) and eight POPulation groups, combined with the advanced navigation offered by the new output-focused centre section, allows the simultaneous display of up to 24 mono or stereo mix buses.

To develop the world’s most reliable motor fader, Midas dove deep into materials science, employing semi-precious metals that offered the long-term durability we all love – and the results speak for themselves. PRO Series motorized faders are rated for up to 1,000,000 cycles – three times that of other leading manufacturers, and provide high linearity, robustness, and smooth feel during operation.

Delivering an unprecedented range of control and mobility, the MIXTENDER 2 App has been completely re-imagined with input from you, the very engineers who know our mixers best. By combining control of most key functions with remarkably responsive system metering, engineers can take control of the PRO X or any PRO Series console using an iPad. Support for multiple simultaneous iPad* devices allows the FOH and monitor engineers to work collaboratively – from any location within the venue.

PRO X has up to 288 inputs x 294 outputs, with point-to-point routing anywhere within the network. These can be patched and routed on a scene-by-scene basis via the powerful snapshot automation system.

Powerful, fully expandable and capable of processing up to 800 audio paths, the PRO X CC-IP and NEUTRON Audio System Engine are not only state-of-the-industry – they are light-years ahead of the competition.

Midas PROX-CC-TP Features:

  • Live performance digital console control centre withup to 168 simultaneous inputs
  • 99 time-aligned and phase-coherent mix buses
  • HyperMAC and AES50 networking allows up to 288 inputsand 294 outputs @ 96 kHz Sample Rate
  • HyperMAC router with 192 bidirectional channels overcopper and optical fibre
  • Provides dual redundant snake connection to theNEUTRON Audio System Engine
  • Snake connections up to 500 m with optical fibre or100 m with CAT5/5e cable
  • 10 VCA (variable control association) and 8POPulation groups
  • Up to 36 assignable 1/3 octave KLARK TEKNIK DN370graphic equalisers
  • Up to 24 simultaneous internal multi-channel effects
  • 29 MIDAS PRO motorised 100 mm faders
  • 2 daylight viewable 15" full colour TFT displayscreens
  • Fully interpolated touch sensitive controls
  • Optional wireless remote control with MIDAS MIXTENDERApp for iPad*
  • Three bay auto-ranging universal switch-mode powersupply with N+1 redundancy
  • 3-Year Warranty Program**
  • Designed and engineered in England
