ikan Corporation VH8-2
8" HD LCD Field Monitor with HDMI

OUR PART #:  VH8-2

The ikan VH8-2 features a 1600 x 768­­­­­­­ Ultra-wide HD LCD panel display.
Learn More
Our Price: $399.00
List Price: $440.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ikan Corporation VH8-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

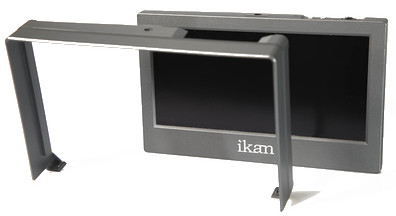

The ikan VH8-2 features a 1600 x 768­­­­­­­ Ultra-wide HD LCD panel display. The VH8 has an H.U.D (Heads Up Display) vertically on the right side of the screen that reads incoming signals as well as false color and peaking. The VH8 has HDMI In/ Out and composite outputs for the video professional's preference.  There are four touch-sensitive function buttons on the rear that you can preset with the functions of your choice. The versatile thin frame design makes the VH8 ideal for on-camera fieldwork as well as mounted on a stand for studio use.

ikan's sleek VH8 has an ultra-wide LCD panel that delivers crisp, clear 1600 x 768 HD resolution. The VH8's ultra-wide screen allows the video professional to see the whole shot even with the H.U.D. screen on the right hand side. Ikan's VH8 gives you the features need at the prices you want.

The VH8 comes equipped with four touch-sensitive customizable function buttons. The video professional can map out any of the VH8's advanced software features with the function buttons to create an effective workflow. Furthermore, just by touching the function buttons, the end user can preview which function is preset to each button with out even pressing the button itself.

ikan introduces its thinnest, lightest field monitor at just over 1/2 a pound and just under 1" thick. With the VH8, you don't have to worry about your handheld rigs being weighed down like they would be with larger, heavier monitors.

ikan's VH8 contains HDMI (in/out) which allows the end user to connect a secondary field monitor or connect an external recording device for higher quality video recording.

Includes:

  • VH8-2 HD LCD field monitor with HDMI
  • AC Adapter
  • Canon E6, Nikon EL15, Panasonic G6 Battery Plates
  • Monitor Visor
  • Shoemount

ikan VH8-2 HD LCD Field Monitor with HDMI Features:

  • 1600 x 768 Ultra Wide LCD Panel
  • False Color with Adjustable Under Luminance and Over Luminance Warning
  • 4- Customizable Capacitive Sensing Function Buttons
  • Peaking with Red Outline
  • HDMI input with loop-through
  • Composite input

ikan VH8-2 HD LCD Field Monitor with HDMI Specifications:

  • Aspect Ratio: 19x9
  • Brightness: 300 cd/m2
  • Build Material: Plastic
  • Color System: PAL/NTSC/SECAM (Auto-Detected)
  • Contrast Ratio: 400:1
  • Diagonal : 8"
  • Display Technology: TFT LCD with LED Backlight
  • Input Voltage: DC 7V - 24V
  • Inputs: HDMI, Composite
  • LCD Brightness: 300 NIT
  • Operating Temperature: 0°C ~ 50°C (32°F ~122°F)
  • Operating Volts: DC 7V to 24V
  • Outputs: HDMI
  • Pixel Pitch: 0.114×0.114 (mm)
  • Resolution: 1600 x 768
  • Response Time: 16ms
  • Screen Size: 8"
  • Dimensions: 5" x 8" x 0.9" (127 x 203 x 22 mm)
  • Weight: 0.6 lbs (0.27 kg)
  • Shipping Dimensions: 3.1" x 15" x 8" (78 x 381 x 203 mm)
  • Shipping Weight: 3 lbs (1.4 kg)
  • UPC Code: 847983013562
  • Viewing angle: 35º/35º (R/L) 10º/30º (U/L)
