ikan Corporation D7w-1
7" 3G-SDI LCD Monitor with IPS Panel, Waveform, and Canon 900/Sony L/Panasonic D54 Battery Plates

OUR PART #:  D7W-1

The D7w-1 is one of the newest and sturdiest additions to the Ikan family of field monitors.
Learn More
Our Price: $1,299.00
List Price: $1,430.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ikan Corporation D7w-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

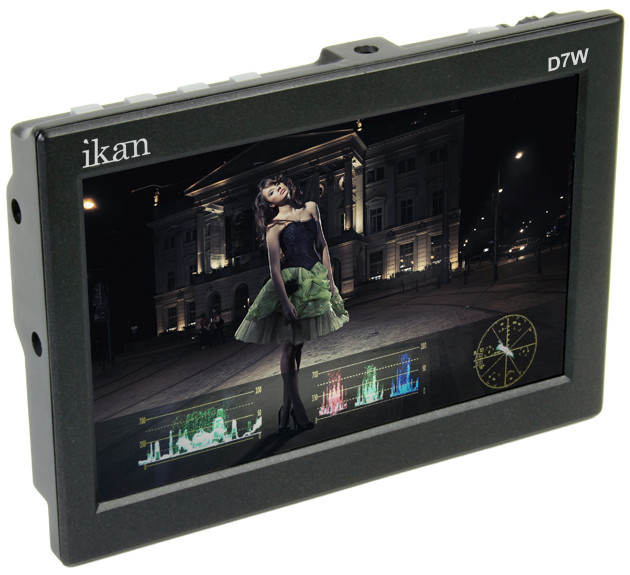

The D7w-1 is one of the newest and sturdiest additions to the Ikan family of field monitors. The D7w-1 is a 7” (digital only) on-camera field monitor devised for the video professional who utilizes various input types and power options. Its sleek yet durable aluminum construction dissipates heat and greatly enhances the D7w-1’s longevity. The D7w-1 is equipped with Waveform Monitor, Vectorscope, and RGB Parade functions, along with Peaking and False Color features that the VX series is renown for, plus it has an IPS (In-plane switching) panel which puts out vibrant colors and great viewing angles. The D7w-1’s technological advances give you the features you need at prices you want. The D7w-1 version includes Canon 900, Sony L, and Panasonic D54 battery plates.

What's Included with the ikan D7w-1:

-D7w-1 7" 3G-SDI LCD Monitor
-AC Adapter
-Canon 900, Sony L, Panasonic D54 Battery Plates
-SM201 (SM201)

ikan D7w-1 Features:

  • Waveform
    This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
  • Vectorscope
    The D7w-1 uses vectorscope to help set and verify skin tones and monitor white balance. The vectorscope function also verifies and checks the overall tint and hue of an image.
  • RGB Parade
    The RGB parade splits the image into separate red, green, and blue channels and shows you the color values for each. RGB Parade is fundamental in balancing out the shadow region when leveling a shot. Furthermore, this feature helps the video professional to instantly see what color cast might be in an image; thus, making it extremely helpful when verifying the white balance.
  • 1280 X 800 IPS HD PANEL
    With the D7w-1’s 7-inch 1280 X 800 IPS HD panel what you see is truly what you get! The IPS HD Panel delivers near perfect viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The D7w-1’s IPS HD Panel is the tool of choice for high quality color reproduction.
  • Durable Aluminum Construction
    The D7w-1’s frame is constructed with heavy-duty aluminum making it perfect for the video professional bouncing from set to set. Its solid, roughed design ensures the D7w-1 performs at its best even in the roughest terrains. The D7w-1’s durable chassis protects the monitor from the element’s and unpredictable weather ensuring the monitor’s reliability and longevity.
  • Flexible Battery System
    The D7w-1 has a flexible battery system that includes Canon 900, Sony L, and Panasonic D54 battery plates.
  • Advanced Software Features
    The D7w-1 is loaded with advanced software features like false color, peaking, movable pixel-to-pixel and DSLR scaling. Each of these features is highly effective in their own right creating a smooth workflow for superior results. With all the features you need at the prices you want the D7-1 provides endless possibilities for the video professional.
  • Peaking
    The D7w-1 is equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.
  • False Color
    The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/over luminance warning enables the video professional to get the quality he/she desires every time. By adjusting the camera’s Iris, the subject of the image will change color based on specific brightness values indicating optimal exposure.
  • Movable Pixel-to-Pixel
    The D7w-1’s 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.
  • Clip Guides
    The D7w-1 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the overexposed area.

ikan D7w-1 Specifications:

  • Aspect Ratio:  16:10
  • Brightness:  400 cd/m2
  • Build Material:  Plastic Front / Aluminum Back
  • Color System:  PAL/NTSC/SECAM (Auto-Detected)
  • Contrast Ratio:  800:1
  • Diagonal (inch):  7 inch
  • Dimensions:  7" X 4.9" X 1" (177mm x 124mm x 25mm)
  • Display Technology:  IPS
  • Input Voltage:  DC 7V - 12V
  • Inputs:  3G-SDI, HDMI
  • Operating Temperature:  14°F ~140°F (-10°C ~ 60°C)
  • Operating Volts:  7-24V (DC)
  • Outputs:  3G-SDI, HDMI
  • Pixel Pitch:  0.117×0.117 (mm)
  • Power Consumption:  9W
  • Resolution:  1280 x 800
  • Response Time:  32ms
  • Screen Size:  7"
  • Shipping Dimensions:  14.75" x 7.75" x 3" (78mm x 381mm x 203mm)
  • Shipping Weight: 2.4 lbs. (1.3 kg)
  • Video Outputs:  HDMI, SDI
  • Viewing angle:  178° horizontal/178° vertical
  • Weight:  1 lbs. (0.45 kg)

Supported Resolutions & Frame Rates:

  • 3G SDI:  1920x1080p @ 50, 59.94, 60 Hz
  • HD SDI:
    • 1280x720p @ 50, 59.94, 60 Hz
    • 1920x1080i @ 50, 59.94, 60 Hz
    • 1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
    • 1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz
  • SD SDI:
    • 720x480i @ 60Hz
    • 720x576i @ 50Hz
  • HDMI:
    • 720x480i & 720x480p @ 59.94, 60 Hz
    • 720x576i & 720x576p @ 50 Hz
    • 1280x720p @ 50, 59.94, 60 Hz
    • 1920x1080i @ 50, 59.94, 60 Hz
    • 1920x1080psf @ 24, 25, 29.97, 30 Hz
    • 1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60Hz
