ikan Corporation D5w-1
5.6" 3G-SDI/HDMI LCD Monitor with HD Panel, Waveform and Canon 900/Sony L/Panasonic D54 Battery Plates

OUR PART #:  D5W-1

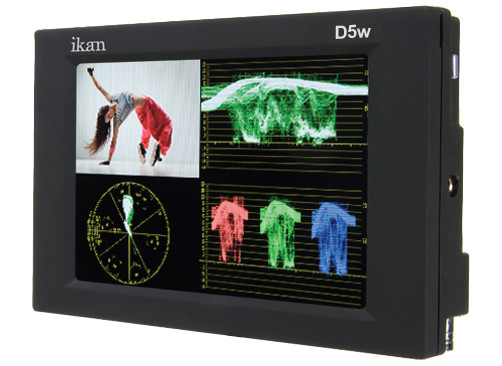

The ikan D5w-1 (HD-SDI LCD) on-camera field monitor has quality features including waveform, vectorscope, and RGB parade at an affordable price.
Learn More
ikan Corporation D5W-1 1
ikan Corporation D5W-1 2
ikan Corporation D5W-1 3
ikan Corporation D5W-1 4
Our Price: $999.00
List Price: $1,100.00
You save 9%!
Write the first review.
ikan Corporation D5w-1
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The ikan D5w-1 (HD-SDI LCD) on-camera field monitor has quality features including waveform, vectorscope, and RGB parade at an affordable price. These key features assist the video professional in getting the shot right the first time. The D5w-1 is outfitted with 1280 X 800 HD resolution for the attention to detail a video professional needs, along with battery plates for the Canon 900, Sony L, and Panasonic D54. Equipped with false color and peaking, the D5w-1 enables the video professional to deliver precision shots in the field. The D5w-1's small, lightweight design is ideal for handheld rigs, and its HDMI input is complimented by a 3G-SDI input/ output along with a headphone audio-out feature. The customized function buttons on the back of the D5w-1 can be tailored for your workflow. Furthermore, the D5w-1's frame has a rubberized texture for better grip and handling making it easy to maneuver.

What's Included with the ikan D5w-1

    • D5w-1 5.6" 3G-SDI LCD Monitor w/ Hi-Def Panel (Waveform)
    • AC Adapter
    • Battery Plates for:
      • Canon 900
      • Sony L
      • Panasonic D54
    • Monitor Visor
    • SM201 (SM201)

ikan D5w-1 Features:

  • HD Resolution
    Although the D5w-1 has a 5.6-inch screen, with 1280 X 800 HD resolution what you see is what you get! The D5w-1 outputs crisp, clear shots on the field, which means less time in the editing room.
  • Small, Lightweight Design
    0.6 pounds is what the D5w-1 weighs! This makes it the ideal field monitor for the video professional. With the D5w-1, you don't have to worry about your handheld rigs being weighed down like they would be with larger, heavier monitors. Also, the D5w-1's compact size makes it effortless to pack and carry.
  • Waveform
    This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
  • Vectorscope
    The D5w-1 uses vectorscope to help set and verify skin tones and monitor white balance. The vectorscope function also verifies and checks the overall tint and hue of an image.
  • RGB Parade
    The RGB parade splits the image into separate red, green, and blue channels and shows you the color values for each. RGB Parade is fundamental in balancing out the shadow region when leveling a shot. Furthermore, this feature helps the video professional to instantly see what color cast might be in an image; thus, making it extremely helpful when verifying the white balance.
  • Flexible Battery System
    The D5w-1 has a flexible battery system that features Canon 900, Sony L, and Panasonic D54 battery plates.
  • Advanced Software Features
    The D5w-1 is loaded with advanced software features like false color and peaking. Each of these features is highly effective in their own right creating a smooth workflow for superior results. With quality features at an affordable price, the D5w-1 provides endless possibilities for the video professional.
  • False Color with Adjustable Under Luminance & Over Luminance Warning
    The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/over luminance warning enables the video professional to get the quality he/she desires every time. By adjusting the camera's Iris, the subject of the image will change color based on specific brightness values indicating optimal exposure.
  • Clip Guide with Adjustable Threshold
    The D5w-1 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area.
  • Peaking with Red Outline
    The D5w-1 is equipped with both Monochrome and Color Peaking features, which highlight the desired focus area in a bright, RED outline. The operator adjusts the focus control until the RED indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.
  • DSLR Scaling
    The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9, or Full Screen – convenience made simple.
  • Movable Pixel-to-Pixel
    The D5w-1's 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.

ikan D5w-1 Specifications:

  • Aspect Ratio: 16:10
  • Audio Output: Headphone
  • Brightness: 300 cd/m2
  • Build Material: Plastic
  • Color System: PAL/NTSC/SECAM (Auto-Detected)
  • Contrast Ratio: 500:1
  • Diagonal (inch): 5.6-inch
  • Dimensions: 4.1" x 6.5" x 0.9" (104mm x 165mm x 22mm)
  • Display Technology: IPS
  • Input Voltage: DC 6V - 24V
  • Inputs:
    • 3G-SDI
    • HDMI
  • LCD Brightness: 300 NIT
  • Operating Temperature: 32°F ~140°F (0°C ~ 60°C)
  • Operating Volts: DC 6v to 24v
  • Outputs:
    • 3G-SDI
    • 3.5mm Headphone
  • Pixel Pitch: 0.094mm x 0.094mm
  • Power Consumption: 7W
  • Resolution: 1280 x 800
  • Response Time: 30ms
  • Screen Size: 5.6"
  • Shipping Dimensions: 14.75" x 7.75" x 3" (78mm x 381mm x 203mm)
  • Shipping Weight: 2 lbs. (0.9 kg)
  • Video Outputs: 3G-SDI
  • Viewing angle: 160° horizontal/160° vertical
  • Weight : 0.6 lbs. (0.27 kg)
  • Supported Resolutions and Frame Rates:
    • 3G SDI:  1920x1080p @ 50, 59.94, 60 Hz
    • HD SDI:
      • 1280x720p @ 50, 59.94, 60 Hz
      • 1920x1080i @ 50, 59.94, 60 Hz
      • 1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
      • 1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz
    • SD SDI:
      • 720x480i @ 60Hz
      • 720x576i @ 50Hz
    • HDMI:
      • 720x480i & 720x480p @ 59.94, 60 Hz
      • 720x576i & 720x576p @ 50 Hz
      • 1280x720p @ 50, 59.94, 60 Hz
      • 1920x1080i @ 50, 59.94, 60 Hz
      • 1920x1080psf @ 24, 25, 29.97, 30 Hz
      • 1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
