ikan Corporation D5-2

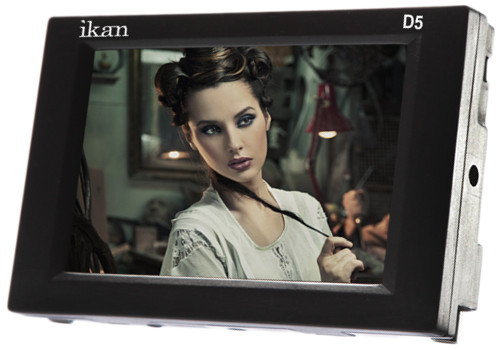

5.6" 3G-SDI/HDMI LCD Monitor with HD Panel and Canon E6/Nikon EL15/Panasonic G6 Battery Plates

OUR PART #:  D5-2

The ikan D5-2 (HD-SDI LCD) on-camera field monitor has quality features at an affordable price.
Learn More
D5-2 Feature/Dimensions Illustration
ikan D5-2 Back Panel View
ikan D5-2 Scale Comparison

Click a thumbnail to see more images. (5 total)

Our Price: $699.00
List Price: $770.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


ikan Corporation D5-2
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ikan D5-2 (HD-SDI LCD) on-camera field monitor has quality features at an affordable price. The D5-2 is outfitted with 1280 X 800 HD resolution for the attention to detail a video professional needs, along with battery plates for the Canon E6, Nikon EL15, and Panasonic G6. Equipped with false color and peaking, the D5-2 enables the video professional to deliver precision shots. The D5-2's small, lightweight design is perfect for handheld rigs, and its HDMI input is complimented by a 3G-SDI input/output along with a headphone audio-out feature. The customized function buttons on the back of the D5-2 can be tailored for your workflow. Furthermore, the D5-2's frame has a rubberized texture for better grip and handling making it easy to maneuver.

What's Included with the ikan D5-2

    • D5-2 5.6" 3G-SDI LCD Monitor w/ Hi-Def Panel
    • AC Adapter
    • Battery Plates for:
      • Canon E6
      • Nikon EL15
      • Panasonic G6
    • Monitor Visor
    • SM201 (SM201)

ikan D5-2 Features:

  • Inputs/Outputs
    Ikan's D5-2 contains 3G-SDI (In/Out), which allows the user to secure and input/output a 3-gigabyte video/audio signal up to 300 feet.  This feature is advantageous, especially when working in the field. Aside from 3G-SDI, the D5-2 has a HDMI input available.
  • HD Resolution
    Although the D5-2 has a 5.6-inch screen, with 1280 X 800 HD resolution what you see is what you get! The D5-2 outputs crisp, clear shots on the field, which means less time in the editing room.
  • Small, Lightweight Design
    0.6 pounds is what the D5-2 weighs! This makes it the ideal field monitor for the video professional. With the D5-2, you don't have to worry about your hand held rigs being weighed down like they would be with larger, heavier monitors. Also, the D5-2's compact size makes it effortless to pack and carry.
  • Flexible Battery System
    The D5-2 has a flexible battery system that features Canon E6, Nikon EL15, and Panasonic G6 battery plates.
    Advanced Software Features
    The D5-2 is loaded with advanced software features like false color and peaking. Each of these features is highly effective in their own right creating a smooth workflow for superior results. With quality features at an affordable price, the D5-2 provides endless possibilities for the video professional.
  • False Color with Adjustable Under Luminance & Over Luminance Warning
    The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/over luminance warning enables the video professional to get the quality he/she desires every time. By adjusting the camera's Iris, the subject of the image will change color based on specific brightness values indicating optimal exposure.
  • Clip Guide with Adjustable Threshold
    The D5-2 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area.
  • Peaking with Red Outline
    The D5-2 is equipped with both Monochrome and Color Peaking features, which highlight the desired focus area in a bright, RED outline. The operator adjusts the focus control until the RED indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.
  • DSLR Scaling
    The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9, or Full Screen – convenience made simple.
  • Movable Pixel-to-Pixel
    The D5-2's 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.

ikan D5-2 Specifications:

  • Aspect Ratio: 16:10
  • Audio Output: Headphone
  • Brightness: 300 cd/m2
  • Build Material: Plastic
  • Color System: PAL/NTSC/SECAM (Auto-Detected)
  • Contrast Ratio: 500:1
  • Diagonal (inch): 5.6-inch
  • Dimensions: 4.1" x 6.5" x 0.9" (104mm x 165mm x 22mm)
  • Display Technology: IPS
  • Input Voltage: DC 6V - 24V
  • Inputs:
    • 3G-SDI
    • HDMI
  • LCD Brightness: 300 NIT
  • Operating Temperature: 32°F ~140°F (0°C ~ 60°C)
  • Operating Volts: DC 6v to 24v
  • Outputs:
    • 3G-SDI
    • 3.5mm Headphone
  • Pixel Pitch: 0.094mm x 0.094mm
  • Power Consumption: 7W
  • Resolution: 1280 x 800
  • Response Time: 30ms
  • Screen Size: 5.6"
  • Shipping Dimensions: 14.75" x 7.75" x 3" (78mm x 381mm x 203mm)
  • Shipping Weight: 2 lbs. (0.9 kg)
  • Video Outputs: 3G-SDI
  • Viewing angle: 160° horizontal/160° vertical
  • Weight : 0.6 lbs. (0.27 kg)
  • Supported Resolutions and Frame Rates:
    • 3G SDI:  1920x1080p @ 50, 59.94, 60 Hz
    • HD SDI:
      • 1280x720p @ 50, 59.94, 60 Hz
      • 1920x1080i @ 50, 59.94, 60 Hz
      • 1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
      • 1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz
    • SD SDI:
      • 720x480i @ 60Hz
      • 720x576i @ 50Hz
    • HDMI:
      • 720x480i & 720x480p @ 59.94, 60 Hz
      • 720x576i & 720x576p @ 50 Hz
      • 1280x720p @ 50, 59.94, 60 Hz
      • 1920x1080i @ 50, 59.94, 60 Hz
      • 1920x1080psf @ 24, 25, 29.97, 30 Hz
      • 1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
