Canon 0438C001 CINE-SERVO 50-1000mm T5.0-8.9, EF Mount

OUR PART #: 0438C001 MFR #: 0438C001

Copied to clipboard
Canon 0438C001 CINE-SERVO 50-1000mm T5.0-8.9, EF Mount Image 1
Canon 0438C001 CINE-SERVO 50-1000mm T5.0-8.9, EF Mount Image 2
Canon 0438C001 CINE-SERVO 50-1000mm T5.0-8.9, EF Mount Image 3
J8TZkfag02Y
3 Videos
Canon 0438C001 CINE-SERVO 50-1000mm T5.0-8.9, EF Mount
Sale Price: $68,700.00
List Price: $78,000.00
You save 12%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

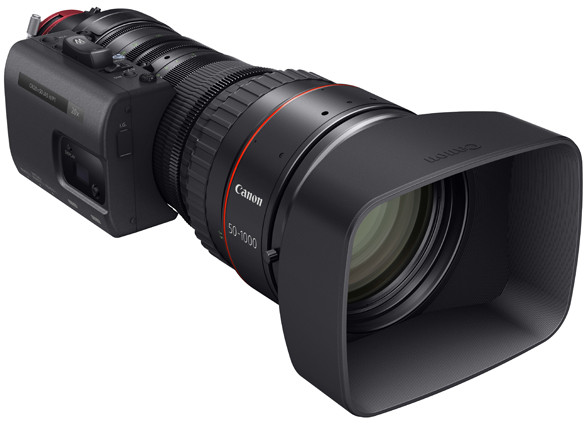

Canon's CINE-SERVO 50-1000mm T5.0-8.9 EF [model 0438C001] ultra-telephoto zoom lens provides 4K performance for Super35mm large-format single-sensor cameras and accommodates either broadcast or cinema-style production due to its removable Digital Drive unit. This is the EF-mount version (also available in a PL-mount version, plus mount conversion is available at an authorized Canon service facility-contact your Full Compass Sales Professional for more information), delivering the world's longest focal length (75-1500mm with its built-in 1.5x extender) and highest (20x) magnification among super 35mm zoom lenses as of October 16, 2014. It's great for sports, nature documentaries, and other types of long-zoom field production, yet it's easy to carry, has a relatively compact form factor of only 16.3 inches in length, and a weight of just 14.6 lbs. It can be used with major brands of single-sensor Super35mm cameras and conforms to industry-standard camera-to-lens communication protocols including 12-pin serial communication (common to major broadcast camera brands) and Canon EOS technology.

The CINE-SERVO 50-1000mm T5.0-8.9 ultra-telephoto zoom lens allows for close-up 4K imaging of wildlife subjects while still maintaining the physical distances necessary in such shooting situations. Ruggedly built, its removable Digital Drive unit allows for broadcast-style operation with a convenient zoom/rocker switch, programmable zoom and focus settings, and data connections for use with broadcast-type field/studio zoom and focus servo-demand controls. Removal of the Drive unit enables Cinema-style operation; the lens includes clearly engraved barrel markings, an 11-blade iris to help achieve smooth "bokeh" backgrounds, and compatibility with lens-support rods, matte boxes, and other cinema accessories.

  • Ultra Telephoto 50-1000mm (75-1500mm with Built-In 1.5xExtender)
  • The CINE-SERVO 50-1000mm T5.0-8.9 ultra-telephoto zoom lensdelivers the long focal length performance demanded by today's users ofsingle-sensor large-format cameras for broadcast sports, naturecinematography, and digital filmmaking. With the world's longest focal length(75-1500mm with its built-in 1.5x extender) and highest (20x) magnificationamong super 35mm zoom lenses as of August 31, 2014, the CINE-SERVO 50-1000mmT5.0-8.9 ultra-telephoto zoom lens offers new creative opportunitiespossibilities for today's growing community of 4K, UHD, and HD image makers.
  • Amazingly High Zoom Ratio of 20x
  • With a 20:1 zoom range thatextends from a wide 50mm up to 1000mm, the CINE-SERVO 50-1000mm T5.0-8.9ultra-telephoto zoom lens is the longest Super 35mm telephoto lens in theindustry to date. The increased use of single-sensor large-format (super 35mm)cameras for such broadcast applications as sports may require an even longerfocal range, so this lens also features a built-in 1.5x extender, lengtheningits focal length to 75-1500mm. New creative opportunities include enablingsingle-sensor large-format camera users to obtain close-up 4K imaging ofwildlife subjects or sports players while still maintaining the physicaldistances
  • 4K Optical Performance Throughout the 20x Zoom Range or Even When the1.5x Extender is Used
  • The CINE-SERVO 50-1000mm T5.0-8.9 ultra-telephotozoom lens is the product of years of Canon expertise in such areas aslarge-diameter aspherical lens technology, optical layout optimization, andthe latest optical simulation technologies. Developed using Canon'sleading-edge optical and optomechanical design tools and advanced glassmaterials, the CINE-SERVO 50-1000mm T5.0-8.9 ultra-telephoto zoom lenscorrects nearly all optical aberrations, and delivers high image quality thatextends from the image center to all edges. The result is the maintenance ofsuperb 4K optical imaging performance throughout its 20x zoom range, and evenwhen the lens' built-in 1.5x extender is employed.
  • Designed for Super35mm Large-Format Single-Sensor Cameras (Dia.31.4mm)
  • The CINE-SERVO 50-1000mm T5.0-8.9 ultra-telephoto zoom lensperfectly covers a 31.4mm image format and delivers this amazing 4K opticalperformance across its entire zooming range, which ranges from 75mm to 1500mmwith its built-in 1.5x extender. The minimum object distance (MOD) of the lensis 11.5 ft. (3.5 m); the lens front diameter is 136mm.
  • Designed for Both Cinema Style and Broadcast Applications
  • TheCINE-SERVO 50-1000mm T5.0-8.9 ultra-telephoto zoom lens features a removableDigital Drive unit to accommodate either broadcast or cinema-style production.The Drive unit integrates a convenient zoom/rocker switch, programmable zoomand focus settings, and a 12-pin connector that carries standard broadcastlens serial communication. Compatible cameras can supply power to the Driveunit via this connection and support remote iris operation. Three 20-pinconnectors on the Drive unit enable the zoom, focus and iris to be remotelycontrolled by using broadcast type servo-demand controls. The 20-pinconnectors also output 16-bit precision data that enables the lens to be usedwith virtual studio systems. Removal of the Drive unit enables traditionalfull manual cinema-style operation, and the lens also features clearlyengraved barrel markings, an 11-blade iris to help achieve smooth "bokeh," andgearing that is fully compatible with lens-support rods, matte boxes, andother cinema accessories.
  • 11-Blade Iris for Natural Out of Focus Background
  • The odd numberof iris blades within the CINE-SERVO 50-1000mm T5.0-8.9 ultra-telephoto zoomlens provides a softer image by suppressing reflection of opposing beams oflight. This 11-bladed iris is designed to enable cinematographers to achievesmooth "bokeh" effects that exploit the beauty of the shallow depth of fieldthat can be captured with today's large-format (super 35mm) single-sensorcameras.
  • Enhanced Servo Drive Unit with Various User SettingCapabilities
  • The removable Digital Drive unit on the CINE-SERVO50-1000mm T5.0-8.9 ultra-telephoto zoom lens is ergonomically designed foroperator comfort and integrates a newly developed encoder that provides userswith immediate start-up and control of the lens. The Drive unit includes aconvenient zoom/rocker switch that enables camera operators to smoothly zoomat a variety of speeds, from a very fast 1.5 seconds to a very slow 180seconds from full-wide to full-telephoto. The Drive unit also includes acompact LCD display that enables camera operators to easily access other lensfunctions, including fully programmable zoom, iris, and focus position/speedsettings. The Drive unit's encoder technology is also capable of relayingaccurate analog and serial data for zoom, focus and iris settings through a20-pin connector, allowing for the lens to be incorporated into most existingvirtual imaging systems.
  • Slow Zoom Capability of 180 sec. or Quick Zoom of 1.5 sec. from WideEnd to Tele End
  • The removable Digital Drive unit on the CINE-SERVO50-1000mm T5.0-8.9 ultra-telephoto zoom lens includes a convenient zoom/rockerswitch that enables camera operators to smoothly zoom at a variety of speeds,from a very fast 1.5 seconds to a very slow 180 seconds from full-wide tofull-telephoto. A camera operator can also pre-program zoom speeds using theDrive unit, if they choose to do so.
  • Multiple Communication Capability with Compatible Cameras
  • TheCINE-SERVO 50-1000mm T5.0-8.9 ultra-telephoto zoom lens is compliant withindustry-standard camera-to-lens communication protocols to help ensurecompatibility and maximum performance with multiple brands and models of 4K,UHD, and HD cameras. These standards include 12-pin serial communication(common to major broadcast camera brands), Cooke's /i Technology, and CanonEOS-LENS data communication technology (employed by the Canon EOS C500, EOS-1DC, EOS C300, and EOS C100 Cinema cameras). Specific types of data-managementfunctions involving focus, zoom, iris and other settings can vary, dependingon camera brands and models. In the case of the Canon Cinema EOS system,precise lens data, including aperture setting, is displayed in the EOScamera's viewfinder, as well as recorded in the video file as metadata alongwith the model name of the lens and the given focal-length setting.
  • 16-Bit Precise Metadata Output for Virtual Studio Systems
  • Theremovable Digital Drive unit on the CINE-SERVO 50-1000mm T5.0-8.9ultra-telephoto zoom lens integrates a 16-bit high-resolution encoder thatgenerates precise positional data + zoom, iris, and focus on all lenssettings. This highly accurate lens data can be relayed via any of the Driveunit's three 20-pin connectors, allowing for the lens to be incorporated intomost existing virtual imaging systems.
  • High Durability and Ruggedness
  • The entire lens employs a tough,optimal chassis structure, is weather and shock resistant, and features theenvironmental-performance capabilities needed to stand up to typicallyunforgiving broadcast sports and wildlife shooting environments. Sturdiness,durability, weather-proofing, integrity of lens element mountings, andmechanical strategies all help ensure maintenance of optical precision overwide environmental ranges.
  • Comes with EF Mount, or Mount Can be Swapped to PL Type at anAuthorized Service Facility
  • The CINE-SERVO 50-1000mm T5.0-8.9ultra-telephoto zoom lens comes with the Canon EF mount (version CN20x50IAS H/E1). Mount can be interchanged with PL type mount at an authorized CanonService facility (contact your Full Compass Sales Professional for moreinformation).

Canon 0438C001 Specifications:

  • Model Name: CN20x50 IAS H/E1
  • Mount: EF
  • Zoom Ratio: 20x
  • Built-In Optical Extender: 1.5x
  • Focal Length:
    • 50-1000mm
    • 75-1500mm (With 1.5x Extender)
  • Maximum Aperture:
    • T5.0 at 50-560mm
    • T8.9 at 1000mm
    • T7.5 at 75-840mm (With 1.5x Extender)
    • T13.35 at 1500mm (With 1.5x Extender)
  • Iris Blades: 11
  • Angle of View:
    • Aspect Ratio 1.78:1
      • 27.6° x 15.7° at 50mm
      • 1.4° x 0.8° at 1000mm
      • 18.6° x 10.5° at 75mm (With 1.5x Extender)
      • 0.9° x 0.5° at 1500mm (With 1.5x Extender)
    • Aspect ratio 1.9:1
      • 29.4° x 15.7° at 50mm
      • 1.5° x 0.8° at 1000mm
      • 19.8° x 10.5° at 75mm (With 1.5x Extender)
      • 1.0° x 0.5° at 1500mm (With 1.5x Extender)
    • M.O.D (from Image Plane): 3.5m / 11.5'
    • Object Dimensions at MOD:
    • Aspect Ratio 1.78:1
      • 139.3 x 78.1cm at 50mm
      • 7.3 x 4.1cm at 1000mm
      • 92.9 x 52.1cm at 75mm (With 1.5x Extender)
      • 4.9 x 2.7cm at 1500mm (With 1.5x Extender)
    • Aspect Ratio 1.9:1
      • 148.3 x 78.1cm at 50mm
      • 7.8 x 4.1cm at 1000mm
      • 98.9 x 52.1cm at 75mm (With 1.5x Extender)
      • 5.2 x 2.7cm at 1500mm (With 1.5x Extender)
    • Front Diameter: F136mm
    • Approx. Size (WxHxL): 6.89" x 6.72" x 16.27" (175 x 170.6 x 413.2mm)
    • Approx. Mass: 14.55lbs. (6.6kg)
    • Pitch of Focus/Zoom/Iris Gear:
    • Focus: 0.8/0.5
    • Zoom: 0.5
    • Iris: 0.5

Note:

All specifications subject to change without notice.
