DBX 580 Microphone Preamplifier, 500 Series

OUR PART #: 580 MFR #: DBX580

Copied to clipboard

The dbx 580 Microphone Preamp is a must-have for your microphones... ...Read more

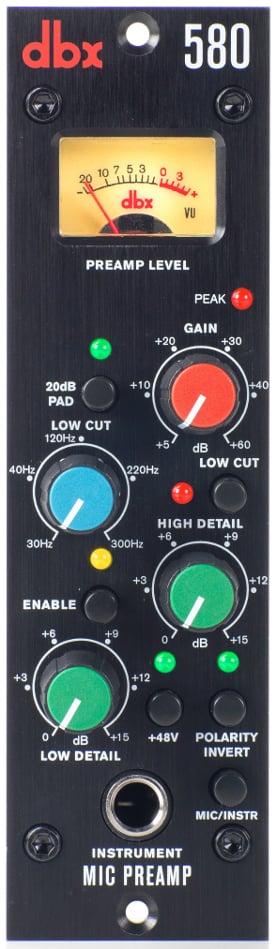

DBX 580 Microphone Preamplifier, 500 Series Image 1
DBX 580 Microphone Preamplifier, 500 Series
Our Price: $340.00
List Price: $428.77
You save 21%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$10/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The dbx 580 Microphone Preamp is a must-have for your microphones, providing sonically transparent gain that will reveal the detail and audio signature of even the most esoteric microphones. It takes their low level output signal and transforms it into a high level, high current output for direct connection to the line level inputs of your mixer, sampler or any other recording medium that accepts line level, analog input.

The dbx 580 delivers up to 6 0dB of gain, features a variable-frequency Low-Cut Filter and unique Low and High Detail Equalization Controls, a 20 dB Pad, Polarity Invert, +48V Phantom Power, a Front Panel Instrument Input, VU Metering and Peak Indicator, and somehow packs all of this into a compact 500 Series design! Save space in you rack with this powerful tool.

Features

  • Premium low-noise Mic Pre with up to 60dB of gain
  • Variable-Frequency Low-Cut Filter
  • Low and High Detail Equalization
  • 20dB Pad
  • Polarity Invert
  • +48V Phantom Power
  • 1/4" Front Panel Instrument Input
  • VU Meter
  • Peak Indicator

Specifications

  • Input Type: Electronically balanced/unbalanced, RF filtered
    • Input Impedance: 1.7 kΩ
    • Max Input Level:
      • +15 dBu balanced or unbalanced (20 dB PAD disabled)
      • +35 dBu balanced or unbalanced (20 dB PAD enabled)
    • Maximum Gain: 60 dB
    • CMRR: >60 dB; typically >70 dB from 20 Hz to 20 kHz
  • Instrument Input Connector: 1/4" TS jack, unbalanced
    • Impedance: 500 kΩ
    • Max Input Level: +21 dBu unbalanced
  • Output Type: Electronically balanced/unbalanced, RF filtered
    • Output Impedance: Balanced 30 Ω, unbalanced 15 Ω
    • Max Output Level: +22 dBu
  • EIN: Typically > -128.0 dBu, 150 Ω source impedance, 22 kHz bandwidth, unweighted
  • Frequency Response: 20 Hz to 20 kHz, +0/-1 dB; < 10 Hz - 30 kHz, +0/-3 dB
  • THD+Noise: < 0.006% typical, 20 Hz to 20 kHz, 0 dBu out
  • Power Requirements: ±16V DC
    • Power Current Draw: 80 mA per power rail
    • Power Draw: 2.56 W
  • Rack System Compatibility: 500 Series Compatible Power-frame
    • Rack Space: 1 Slot
  • Dimension (H x W x D): 5.25" x 1.5" x 6"
  • Weight: 1.3 lbs.
