Product Overview

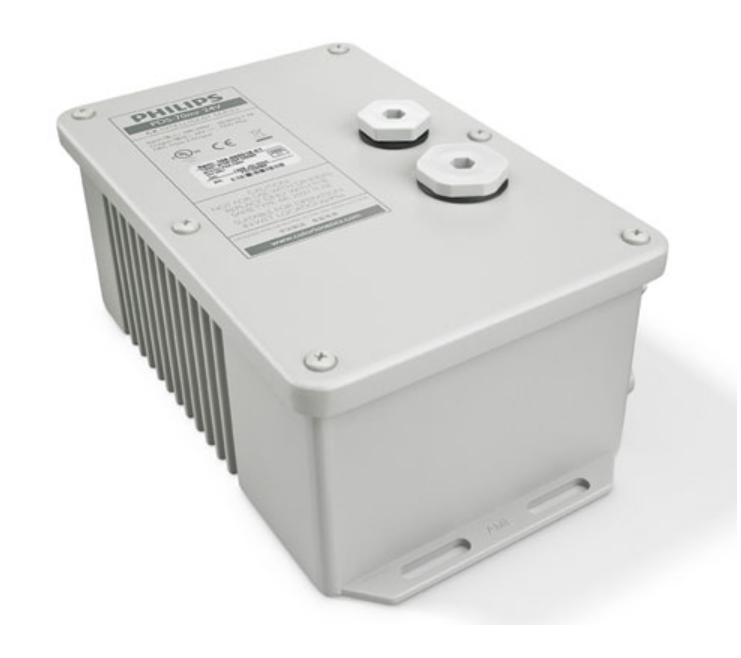

The PDS-70mr 24V (also known as 109-000018-01) from Philips Color Kinetics is a power / data supply designed for LED lighting installations featuring MR LED lamps from Philips Color Kinetics. PDS-70mr 24V outputs a maximum of 72W in Ethernet, DMX, and Pre-programmed versions. This model is the DMX version.
Philips PDS-70mr 24V Features:
- Universal power input range — PDS-70mr 24V accommodates input voltages ranging from 100 – 240 VAC. Short-circuit protection prevents device failure due to incorrectly wired fixtures.
- Rugged exterior-rated enclosure — Features a NEMA 4(IP66) enclosure for installation in any dry, damp, or wet locations.
- Convenient installation — Multiple standard-size conduit entries accommodate 0.5" (13 mm) and 0.75" (19 mm) US trade-sized conduit.
- Flexible control options — You can use PDS-70mr 24V DMX with any PhilipsColor Kinetics DMX or third-party controller, and PDS-70mr 24V Ethernet with any KiNET-compatible Ethernet controllers. PDS-70mr 24V Pre-programmed features four built-in visual effects, allowing configurations without DMX or Ethernet controllers. PDS-70mr 24V Pre-programmed can function as a master controller, delivering data to additional power / data supplies in a run.
Philips PDS-70mr 24V Specifications:
- Electrical:
- Input Voltage: 100 – 240 VAC, auto sensing, 50 – 60 Hz
- Maximum Input Current: 1.7 A
- Power Output: 24 VDC, 72 W maximum
- Fuse Rating: (1) 125 V, 4 A, Type F (fast-acting) fuse
- Physical:
- Dimensions (HxWxD): 3.6" x 5.5" x 8.8" (91 x 140 x 224 mm)
- Weight: 4.5 lb (2.0 kg)
- Construction: NEMA 4 enclosure, cast aluminum, with slots for surface mounting
- Finish: Powder-coated gray matte
- Connectors:
- Data: RJ-45 input and output connectors
- Power Output:
- 2-pin terminal block main output
- 2-pin screw terminal auxiliary output
- Power Input: Line-neutral-ground cable, flying leads
- Temperature Ranges:
- Operating: 14°– 104°F (-10°– 40° C)
- Startup: 14°– 122°F(-10° – 50° C)
- Storage: -40°– 176°F (-40°– 80° C)
- Humidity:0 – 95%, non-condensing
- Cooling: Convection
- Heat Dissipation: 25% of total power input at maximum load
- Control:
- Data Input Source:
- Pre-programmed; Internal
- DMX: Philips Color Kinetics full range of DMX controllers, or compatible third-party controllers.
- Ethernet: Philips Color Kinetics full range of Ethernet controllers, or KiNET-compatible* third-party controllers.
- Maximum Fixture Run Length:
- 14 MR LED lamps per device
- 50 ft (15.2 m) maximum cable length
- Certification and Safety:
- Certification: UL / cUL, CE, PSE
- Classification: UL Class 2 power supply
- Environment: Dry / Damp / Wet Location, IP66
Note
NOTE: *KiNET is the Ethernet lighting protocol from Philips Color Kinetics.
