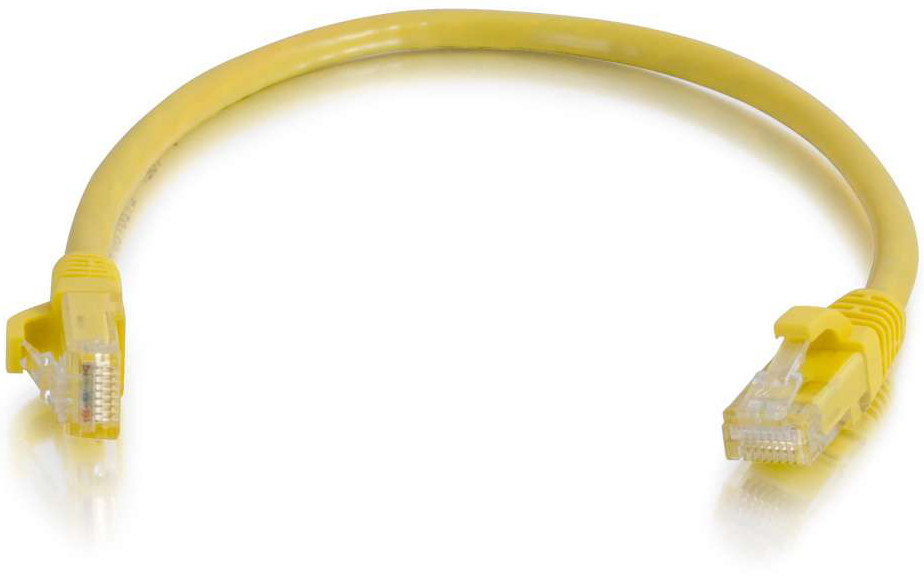

Cables To Go 27190 1 ft Cat6 Snagless Unshielded (UTP) Network Patch Cable in Yellow

The Cables 2 Go 27190 1 ft Cat6 Snagless Unshielded (UTP) Network Patch Cable is designed for fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high-quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.

Cables 2 Go 27190 1 ft Cat6 Snagless Unshielded (UTP) Network Patch Cable Features:

• Snagless design protects clips when plugging and unplugging
• Standard RJ45 connectors and unshielded twisted pair wires

Cables 2 Go 27190 1 ft Cat6 Snagless Unshielded (UTP) Network Patch Cable Specifications:

• Color: Yellow
• UPC: 757120271901
• Warranty: Lifetime
• Weight: 0.05 lb
• Length: 1 ft
• Electrical Characteristics:
  • Conductor DC Resistance - 9.38 Ohm / 100m (maximum)
  • Impedance - 100 Ohms
  • Capacitance - 5600pf/100m
  • Propagation Delay - 545ns/100m (maximum)
  • Delay Skew - 45ns/100m (maximum)
• Physical Characteristics:
  • Wiring Scheme - T568B
  • Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
  • Connector: 50 micron gold-plated RJ45
  • Temperature Rating - 60°C
  • Voltage Rating - 30V
  • Approvals - RoHS Compliant
  • Package Type - Polybag
• Conductor (Qty. 4 twisted pair):
  • Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
  • Insulation - H-D PE
  • Diameter - 0.98 ± 0.05mm
  • Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White
• Connector Type (Qty. 2):
  • Connector Type - 8P8C (RJ45)
  • Gender - Male
  • Connector Material - Polycarbonate
  • Contact Material - Copper Alloy, Gold Plating - 50µm
  • Hood Material - Molded PVC
• Overall Cable:
  • Jacket - PVC
  • Minimum Average Thickness - 0.60mm
  • Outer Diameter - 6.20 ± 0.30mm
