ADJ Dotz Par Pak 4x Dotz RGB COB LED Pars and Dotz Par Wireless Remote

OUR PART #: DOTZ-PAR-PAK MFR #: DOTZ PAR PAK

Copied to clipboard

The ADJ Dotz Par uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. ...Read more

ADJ Dotz Par Pak 4x Dotz RGB COB LED Pars And Dotz Par Wireless Remote Image 1
ADJ Dotz Par Pak 4x Dotz RGB COB LED Pars And Dotz Par Wireless Remote Image 2
ADJ Dotz Par Pak 4x Dotz RGB COB LED Pars And Dotz Par Wireless Remote Image 3
ADJ Dotz Par Pak 4x Dotz RGB COB LED Pars And Dotz Par Wireless Remote
Our Price: $629.99
List Price: $875.95
You save 28%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The ADJ Dotz Par uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGB shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the Dotz Par is a TRI 36W (3-In-1).

The Dotz Par produces wash of 60° (25° if you put on the supplied lens kit). It has four DMX Channel modes for programming flexibility, 35 built-in color macros and five selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power power daisy-chaining, and a 4-button LCD DMX display. Dotz Par may run in its stand-alone mode from built-in programs, sound actively, from a DMX controller, or from the ADJ Par RF wireless remote control.

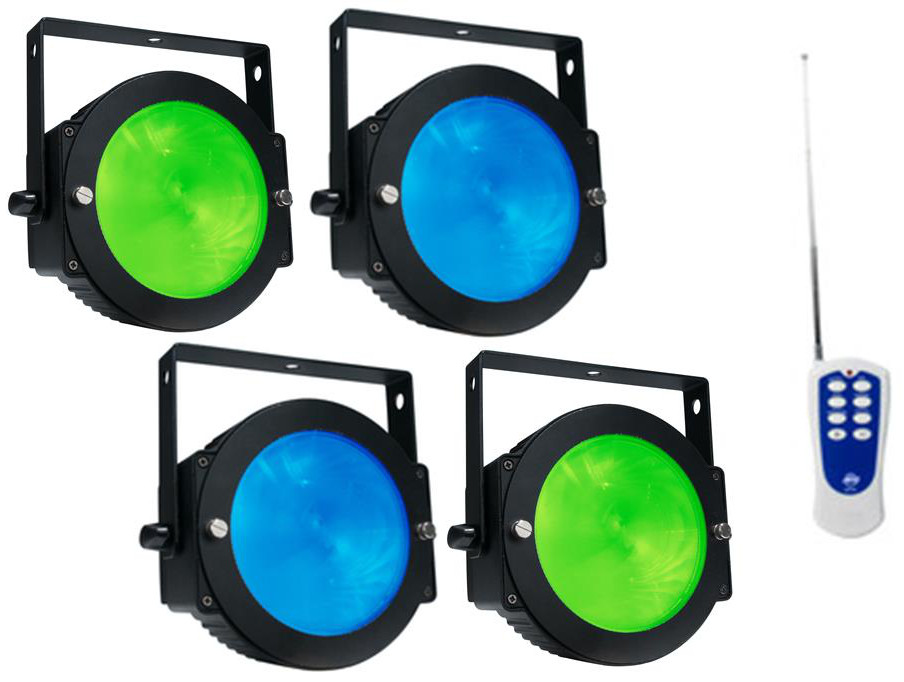

ADJ Dotz Par Pak Includes:

  • Four ADJ Dotz Par Chip-On-Board LED par fixtures
  • Dotz Par RF Remote

ADJ Dotz Par Specifications:

  • High-output slim low-profile Par fixture with one TRI (3-IN-1) RGB COB LED
  • COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
  • Use as Wash/par or Pixel Mapped for a stunning visual effect
  • Five Operational modes: Auto Run, Sound Active, Color Macro, Dimmer, and DMX Controlled Mode
  • Four DMX channel modes: 3, 4, 5 or 9 channel
  • Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
  • Built-In preset colors and programs
  • Flicker-Free operation (No flickering on camera)
  • 35 built-in Color Macros
  • LED pulse and strobe effect
  • Electronic Dimming: 0 - 100%
  • Five selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • Beam angle: 60° (25° with supplied lens kit)
  • 3-pin XLR chassis mount connectors for DMX linking
  • IEC AC IN/OUT to daisy chain power (up to 13 Dotz Pars @ 110V and 28 Dotz Pars @ 230V)
  • Power Draw: 36W total (All LEDs @ Full On)
  • 4-button LCD DMX display on rear panel
  • Compatible with ADJ Par RF wireless remote control
  • Single yoke allows fixture to be mounted
  • Light Source: 1x 36-Watt COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)
  • Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
  • Dimensions (LxWxH): 13. 5" x 5.75" x 5.75" (340 x 140 x 140 mm)
  • Weight: 5 lbs (2 kg)

Note:

This exclusive ADJ package is designed to be an easy, full-featured solution for your lighting needs. This package is available as long as supplies last, so order yours today!
