Palmer PDI03JB
Joe Bonamassa Signature Guitar Speaker Emulator / DI

OUR PART #:  PDI03JB

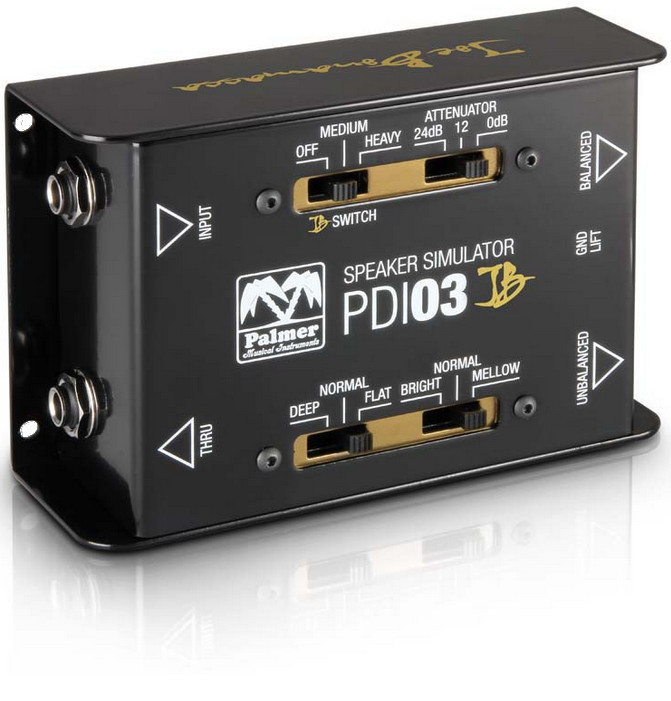

The Palmer PDI 03 JB Speaker Simulator is a professional passive DI box for guitar amps.
Learn More
Palmer PDI03JB Diagram
Palmer PDI03JB - Bottom View
Palmer PDI03JB - Left Side View

Click a thumbnail to see more images. (6 total)

Our Price: $299.95
List Price: $499.95
You save 40%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Palmer PDI03JB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Palmer PDI 03 JB Speaker Simulator is a professional passive DI box for guitar amps. Providing a frequency-compensated, transformer-balanced direct feed to mixing consoles or sound cards, it connects between the amplifier output and loudspeaker or equivalent dummy load. The PDI 03 JB has been developed for live, studio, and home recording applications to eliminate the need for time consuming mic placement and mic-related problems.

Designed to Joe Bonamassa's high standards for a huge but tightly focused tone the exclusive JB switch brings the output signal to the fore and takes it "right in your face." The PDI 03 JB's dual speaker simulation filters are carefully voiced to authentically replicate the frequency response of classic and contemporary loudspeakers and cabinets. The unit's input sensitivity is adjustable for amps up to 200 watts or line and instrument level equipment.

Delivering consistent guitar tone from show to show the PDI-03 JB can also be used to add realistic speaker flavors to preamps and dirt boxes in direct recording applications. The rugged powder coated steel enclosure features high-quality Amphenol connectors and a ground lift to remove hum resulting from earth loops.

For amp DI WITHOUT speakers, a dummy load with matching impedance must be connected. Palmer recommends the Power Attenuator PDI06 and the Palmer Dual Load Box PLB2X8.

Palmer PDI03JB Specifications:

  • Product type: speaker simulator
  • Type: passive
  • Channels: 1
  • Input type: unbalanced
  • Inputs: 1
  • Input connectors: 6.3 mm Jack
  • Output type: balanced, unbalanced
  • Outputs: 2
  • Output connectors: 6.3 mm Jack, XLR
  • Output impedance: 600 Ohm(s)
  • Controls: attenuator
  • Dummy load: no
  • Max. load: Dependent on load, max. 200 W
  • Voicing filter: yes
  • Power attenuator: no
  • Transformer isolated outputs: yes
  • Cabinet material: sheet steel
  • Cabinet surface: powder coated
  • Dimensions (WxDxH): 140 x 95 x 50 mm
  • Weight: 0.53 kg
