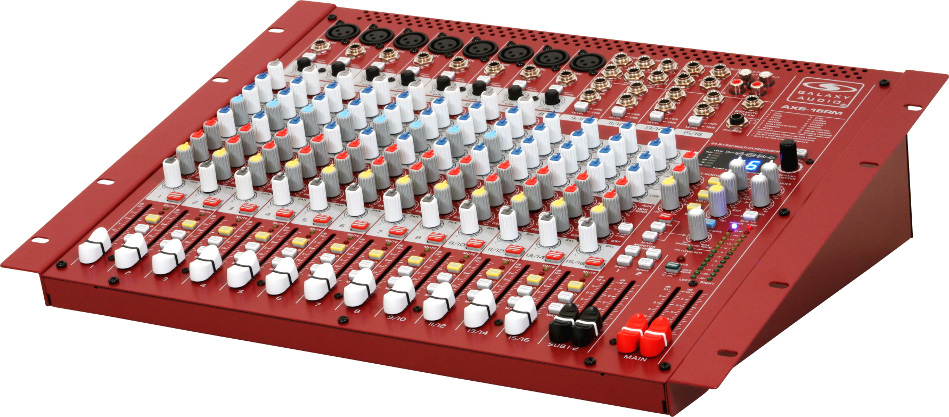

Galaxy Audio AXS-16RM
16 Channel Rackmount Mixer with 8 XLR Mic Input & 4 Stereo Inputs


The Galaxy Audio AXS-16RM has a USB connection to link to a computer for stereo playback or recording and +48V phantom power to the XLR inputs.
Learn More
Galaxy Audio AXS-16RM 1
Galaxy Audio AXS-16RM 2
Galaxy Audio AXS-16RM 3
Galaxy Audio AXS-16RM 4
Our Price: $399.99
List Price: $629.99
Call for Special Sale Price!
Write the first review.
Galaxy Audio AXS-16RM
In Stock

Related Products

The Galaxy Audio AXS-16RM has a USB connection to link to a computer for stereo playback or recording and +48V phantom power to the XLR inputs. Additionally, all mono inputs provide an easy to use single knob compression. The AXS-16RM also features a 3-band EQ with sweep-able mid-range and low cut filter as well as AUX sends on each channel, which are either pre/post or switchable for monitoring/FX or external send.

The AXS-16RM also has built-in Studio Grade DSP FX with 16 effects. Effects include Reverb, Chorus, Flanger, Delay, Pitch Shifter, and Multi-Effects. Each effect has a storable user parameter and a tap button with a tempo light that provides for delay and echo settings.

Each channel also provides the user with Clip LEDs, Mute, Subgroup Routing, Solo, L/R Panning and PFL. The mono channels also feature 1/4" TRS inserts for flexible connection to outboard effects and processing. Whether using in a fixed install or on the road, the 60mm logarithmic faders and sealed rotary controls will provide clean, reliable sound.

Galaxy Audio AXS-16RM Features:

  • 16 Input, 8 XLR Mic Input & 4 Stereo Inputs
  • 8 +48V Phantom Powered Mic Preamps
  • 8 Easy-to-use Built-in Compressors
  • 3-Band EQ with Sweep Mids on Each Channel
  • 16 Effects with Tap
  • USB Audio Interface
  • 8 Channel Inserts
  • 3 AUX Sends Per Channel
  • PFL on Each Channel
  • Balanced Main Outputs
  • Headphone Output
  • Control Room Controls
  • 60 mm Logarithmic Faders
  • Sealed Rotary Controls
  • Switching Power Supply

Galaxy Audio AXS-16RM Specifications:

  • Max. Input Level: Mic +22dBu, Other Line +20dBu
  • Max. Output Level: Main XLR +28dBu, Other Output +22dBu
  • Meters: 3 Color LED
  • Sensitivity: 0VU=+4dBu
  • Master Meter: 12 Segment, -30dB to clip
  • Channel meter: Red LED, clip
  • Frequency Response: +/- 1dB, 20Hz - 30KHz
  • Mic CMRR at 1kHz: >70dB typical
  • THD+n at +14dBu at 1kHz: Mic to mix out <0.005%
  • Crosstalk (@1KHz): Fader shutoff >89dB, Mutes hutoff >89dB
  • Noise, rms 20Hz to 20kHz: Mic Input E.I.N -129dBu
    • Main mix fader unity, Channel fader down <-95dBu (-97dB S/N)
    • Main mix fader unity, Channel fader unity <-82dBu (-86dB S/N)
  • Channel HPF: 18dB/oct below 75Hz
  • Mono EQ:
    • Lo: +/-15dB shelving at 80Hz
    • Mid: +/-15dB peak at 100Hz to 8kHz
    • Hi: +/-15dB shelving 12kHz
  • Stereo EQ:
    • Lo: +/-15dB shelving at 80Hz
    • Mid-Lo: +/-15dB peak at 500Hz
    • Hi-Mid: +/-15dB peak at 3kHz
    • Hi: +/-15dB shelving at 12kHz
  • DSP: Converter 24-bit sigma-delt, 64/128-times oversampling, Sampling Rate 40kHz
  • USB: Audio Stereo In/Out, Connector Type B, Converter 16-bit, Sampling Rate 48kHz
  • Power Supply: 110-240VAC, 50/60kHz
  • Power Consumption: 50 watts
  • Fuse: 100-240VAC, T 1.6A, 250V, 5x20mm
  • Dimensions: 4.65" x 19" x 17.44" (118 x 483 x 443 mm)
  • Weight: 15.3 lbs (6.95 kg)
