Christie Digital D12HD-H-WHITE
11000 Lumens DLP HD Projector in White

OUR PART #:  D12HD-H-WHITE

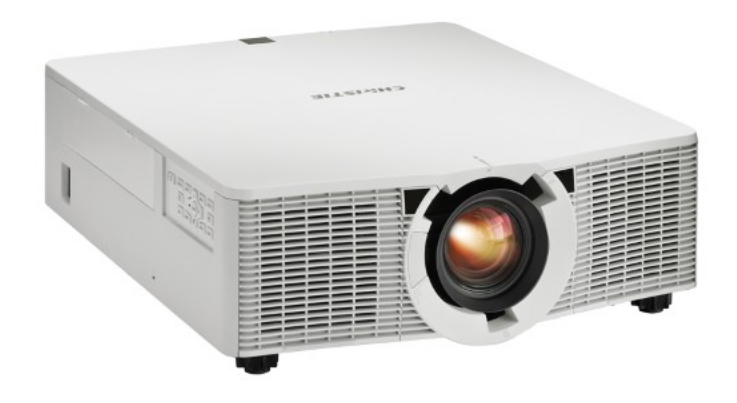

The D12HD-H-WHITE from Christie Digital is their 1DLP projector with 11,000 lumens of brightness that comes from their H Series lineup in the color white.
Learn More

Call for price! Not available online.
List Price: $16,995.00

Similar Products

The D12HD-H-WHITE from Christie Digital is their 1DLP projector with 11,000 lumens of brightness that comes from their H Series lineup in the color white. From boardrooms to auditoriums, the Christie® H Series is their most versatile 1DLP projector. Combining the highest 1DLP brightness with excellent color reproduction, the Christie H Series is small, light and quiet – perfect for discrete installations. The Christie H Series can be set-up in any orientation, includes built-in warping and blending, and offers a full suite of lenses to meet even the most challenging projection needs. With superior image quality, flexible connectivity and less than half the noise of competitive products, the Christie H Series makes itself seen, not heard.

The Christie H Series packs a lot of high-performance features into a surprisingly small and sleek package. Plus, the Christie H Series looks great: with an input panel cover plate and a second HDMI input on the bottom of the projector to hide cords. And, choose between black and white models to suit your design. Don’t sacrifice one for the other: experience color integrity and bright, powerful images with Christie H Series projectors.

Christie D12HD-H-WHITE Features:

  • HD: 11,250 ISO 21118, 11,000 center lumens, 10,500 ANS lumens
  • Proven DLP® technology
  • Dual-lamp, 2 x 465W
  • Excellent image quality
  • Built-in warping, blending and color correction
  • 3D capability
  • Energy-saving features
  • Low maintenance costs
  • Easy integration – wide selection of inputs, Crestron and AMX compatible. Plus, second HDMI input on bottom of projector for ceiling installs, cover plate for side input panel for clean look

Christie D12HD-H-WHITE Specifications:

Image:

  • Brightness:
    • 11,250 lumens (Compliance with ISO 21118 standard)
    • 11,000 Center lumens
    • 10,500 ANSI lumens
  • Contrast:
    • 5000:1 (Dynamic Aperture Enabled)
    • 1200:1 Full On/Off
    • 250:1 ANSI
  • Color Wheel: 6-segment (RGBCYW)

Display:

  • Type: 1-chip 0.95" DMD
  • Native Resolution: 1920 x 1080 HD (2,073,600 pixels) 16:9

Lamp:

  • Type: 2 x 465W (003-005237-XX)
  • Life:
    • 1500 hours minimum @ 465W
    • 2000 hours typical @ 370W

Input:

  • Standard:
    • HDMI x 2 (One on side panel, one on bottom of projector, independently selectable)
    • 3GSDI x 1 (BNC)
    • DVI-D x 1 (Digital only)
    • Display Port x 1
    • HD15 x 1
    • RGBHV/Component (5 BNC)
    • Composite Video x 1 (BNC)
    • S-Video x 1 (mini DIN)
    • Component Video (RCA)
    • USB x 1 (Type B mini) - Display over USB
    • USB x 1 (type A) - Image Viewer or WiFi Dongle (optional)
    • HDBaseT (RJ45 x 1)
    • RJ45 x 1 (ChristiePresenter over wired network connection)
  • 3D:
    • HDMI input only
    • 3D Sync In (BNC) - for genlocking projectors
    • 3D Sync Out (BNC) - for genlocking projectors or controlling emitter or polarizer
  • Signals:
    • HDTV formats VGA through to WUXGA (1920 x 1200)
    • Horizontal and vertical scaling while maintaining aspect ratio, all inputs
  • Pixel Clock: 162 MHz
  • Scan Rates:
    • Horizontal: 15 kHz to 100 kHz
    • Vertical: 24 Hz to 85 Hz

Output:

  • Standard: HD15 x 1
  • Control & Networking:
    • RS232 In
    • Control via HDBaseT
    • Ethernet (10/100) RJ45 with ChristieNET connectivity
    • Built-in backlit keypad
    • Wired remote control (3.5mm stereo) - Loop out available for daisy chaining

Accessories:

  • Standard:
    • IR Remote w/ wired remote jack (wire not included)
    • Coarse Dust Filters - 3 Pack (Not mandatory for standard use)
    • AC Line cords for projector Head
    • User Manual
  • Optional:
    • Rigging/Stacking Frame
    • Lens Adapter for E Series Lenses
    • 1DWUSB-BGN (Wireless Dongle for video and control)
    • Fog Filters - 3 Pack
    • Ceiling Mount
    • Ceiling Mount Extension Rod
    • Replacement Remote Control

Lens Mount:

  • Tool-free lens insertion system
  • Boresight adjustable
  • Motorized horizontal and vertical lens offset (MemoryAvailable)
  • Motorized zoom and focus adjustment (Memory Available for Full ILS lenses)

Lens options:

  • Lenses:
    • 0.84-1.02:1 Zoom Lens (No Zoom/Focus Memory) - Adapted 1.2-1.5:1 E Series Lens
    • 1.02-1.36:1 Zoom Lens (No Zoom/Focus Memory) - Adapted 1.5-2.0:1 E Series Lens
    • 1.2-1.5:1 Zoom Lens (Full ILS)
    • 1.5-2.0:1 Zoom Lens (Full ILS)
    • 2.0-4.0:1 Zoom Lens (Full ILS)
  • Offsets (Full ILS lenses):
    • +/- 133% Vertical (+/- 720 pixels)
    • +/- 50% Horizontal (+/- 480 pixels)

Power requirements:

  • Operating Voltage: 100-240VAC @ 50/60 Hz
  • Current Rating: 5.5A max (220V), 12A max (110V)
  • Power Consumption:
    • Normal Mode: 1100W max (220V) 1180W max (110V)
    • Eco Mode: 880W max (220V), 950W (110V)
  • Thermal Dissipation: 3753 BTU/hr max, 3003 BTU/hr Eco Mode

Dimensions:

  • Dimensions (LxWxH) (without lens and feet):
    • 604 (L) x 520 (W) x 182 (H) mm
    • 23.78 (L) x 20.47 (W) x 7.16 (H) in.
  • Net Weight (without lens): 23.8kg (52.5 lbs)
  • Shipping Dimensions:
    • 790 (L) x 666 (W) x 352 (H) mm
    • 31.10 (L) x 26.22 (W) x 13.86 (H) in.
  • Shipping Weight: 28.5kg (62.8 lbs)

Operating Environment:

  • Noise:
    • Typical: 465W: 40dB(A)
    • Eco Mode: 370W: 37dB(A)
  • Temperature: 32-104°F (0-40°C)
  • Humidity: 10-85% non-condensing

Regulatory:

  • UL/CSA/IEC 60950-1
  • FCC Class A
  • CE
  • CCC
  • KC
  • PSE
  • CU
  • SABS
  • BIS
  • VCCI
  • RCM

This product conforms to all relevant European directives, standards, safety, health and environmental concerns RoHS, REACH, WEEE
