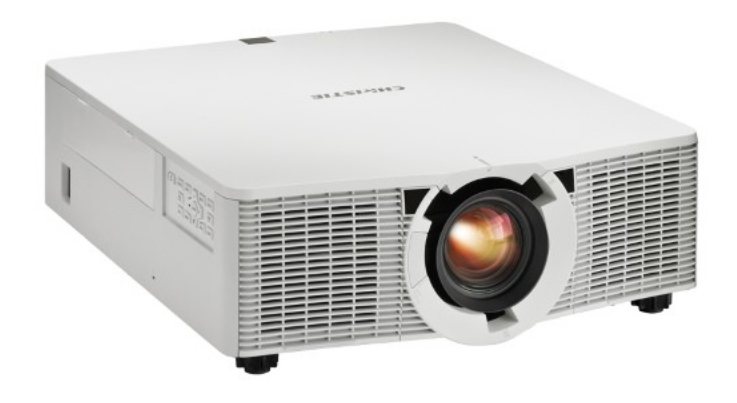

Christie Digital D12WU-H-WHITE
12000 Lumens WUXGA DLP Large Venue Projector in White

OUR PART #:  D12WU-H-WHITE

From boardrooms to auditoriums, the D12WU-H-WHITE from Christie Digital's H Series is one of their most versatile 1DLP projectors.
Learn More

Call for price! Not available online.
List Price: $16,995.00

Similar Products

From boardrooms to auditoriums, the D12WU-H-WHITE from Christie Digital's H Series is one of their most versatile 1DLP projectors. Combining the highest 1DLP brightness with excellent color reproduction, the Christie® H Series is small, light and quiet – perfect for discrete installations.

The Christie H Series can be set-up in any orientation, includes built-in warping and blending, and offers a full suite of lenses to meet even the most challenging projection needs. With superior image quality, flexible connectivity and less than half the noise of competitive products, the Christie H Series makes itself seen, not heard.

The Christie H Series packs a lot of high-performance features into a surprisingly small and sleek package. Plus, the Christie H Series looks great: with an input panel cover plate and a second HDMI input on the bottom of the projector to hide cords. And, choose between black and white models to suit your design (this model the D12WU-H-WHITE is the white version). Don’t sacrifice one for the other: experience color integrity and bright, powerful images with Christie H Series projectors.

Christie D12WU-H Features:

  • WUXGA: 12,375 ISO 21118, 12,000 center, 11,000 ANSIlumens
  • Proven DLP® technology
  • Dual-lamp, 2 x 465W
  • Excellent image quality
  • Built-in warping, blending and color correction
  • 3D capability
  • Energy-saving features
  • Low maintenance costs
  • Easy integration – wide selection of inputs, Crestron and AMX compatible. Plus, second HDMI input on bottom of projector for ceiling installs, coverplate for side input panel for clean look

Christie D12WU-H Specifications:

  • Image:
    • Brightness:
      • 12,375 lumens (Compliance with ISO 21118 standards)
      • 12,000 Center lumens
      • 11,000 ANSI lumens
    • Contrast:
      • 5000:1 (Dynamic Aperture Enabled)
      • 1200:1 Full On/Off
      • 250:1 ANSI
      • Color Wheel: 6-segment (RGBCYW)
  • Display:
    • Type: 1-chip 0.96" DMD
    • Native Resolution: 1920 x 1200 WUXGA (2,304,000 pixels) 16:10
  • Lamp:
    • Type: 2 x 465W (003-005237-01)
    • Life:
      • 1500 hours minimum @ 465W
      • 2000 hours typical @ 370W
  • Input:
    • Standard:
      • HDMI x 2 (One on side panel, one on bottom of projector, independently selectable)
      • 3GSDI x 1 (BNC)
      • DVI-D x 1 (Digital only)
      • Display Port x 1
      • HD15 x 1
      • RGBHV/Component (5 BNC)
      • Composite Video x 1 (BNC)
      • S-Video x 1 (mini DIN)
      • Component Video (RCA)
      • USB x 1 (Type B mini) - Display over USB
      • USB x 1 (type A) - Image Viewer or WiFi Dongle (optional)
      • HDBaseT (RJ45 x 1)
      • RJ45 x 1 (ChristiePresenter over wired network connection)
    • 3D:
      • HDMI input only
      • 3D Sync In (BNC) - for genlocking projectors
      • 3D Sync Out (BNC) - for genlocking projectors or controlling emitter or polarizer
    • Signals:
      • HDTV formats VGA through to WUXGA (1920 x 1200)
      • Horizontal and vertical scaling while maintaining aspect ratio, all inputs
    • Pixel Clock: 162 MHz
    • Scan Rates:
      • Horizontal: 15 kHz to 100 kHz
      • Vertical: 24 Hz to 85 Hz
  • Output:
    • Standard: HD15 x 1
    • Control & Networking:
      • RS232 In
      • Control via HDBaseT
      • Ethernet (10/100) RJ45 with ChristieNET connectivity
      • Built-in backlit keypad
      • Wired remote control (3.5mm stereo) - Loop out available for daisy chaining
  • Accessories:
    • Standard:
      • IR Remote w/ wired remote jack (wire not included)
      • Coarse Dust Filters - 3 Pack (Not mandatory for standard use)
      • AC Line cords for projector Head
      • User Manual
    • Optional:
      • Rigging/Stacking Frame
      • Lens Adapter for E Series Lenses
      • 1DWUSB-BGN (Wireless Dongle for video and control)
      • Fog Filters - 3 Pack
      • Ceiling Mount
      • Ceiling Mount Extension Rod
      • Replacement Remote Control
    • Lens Mount:
      • Tool-free lens insertion system
      • Boresight adjustable
      • Motorized horizontal and vertical lens offset (Memory Available)
      • Motorized zoom and focus adjustment (Memory Available for Full ILS lenses)
  • Lens Options:
    • Lenses:
      • 0.84-1.02:1 Zoom Lens (No Zoom/Focus Memory) - Adapted 1.2-1.5:1 E Series Lens
      • 1.02-1.36:1 Zoom Lens (No Zoom/Focus Memory) - Adapted 1.5-2.0:1 E Series Lens
      • 1.2-1.5:1 Zoom Lens (Full ILS)
      • 1.5-2.0:1 Zoom Lens (Full ILS)
      • 2.0-4.0:1 Zoom Lens (Full ILS)
    • Offsets (Full ILS lenses):
      • +/- 120% Vertical (+/- 720 pixels)
      • +/- 50% Horizontal (+/- 480 pixels)
  • Power requirements:
    • Operating Voltage: 100-240VAC @ 50/60 Hz
    • Current Rating: 5.5A max (220V), 12A max (110V)
    • Power Consumption:
      • Normal Mode: 1100W max (220V) 1180W max (110V)
      • Eco Mode: 880W max (220V), 950W (110V)
    • Thermal Dissipation: 3753 BTU/hr max, 3003 BTU/hr Eco Mode
  • Dimensions:
    • Dimensions (LxWxH) (without lens and feet):
      • 604 (L) x 520 (W) x 182 (H) mm
      • 23.78 (L) x 20.47 (W) x 7.16 (H) in.
    • Net Weight (without lens): 23.8kg (52.5 lbs)
    • Shipping Dimensions:
      • 790 (L) x 666 (W) x 352 (H) mm
      • 31.10 (L) x 26.22 (W) x 13.86 (H) in.
    • Shipping Weight: 28.5kg (62.8 lbs)
  • Operating Environment:
    • Noise:
      • Typical: 465W: 40dB(A)
      • Eco Mode: 370W: 37dB(A)
    • Temperature: 32-104°F (0-40°C)
    • Humidity: 10-85% non-condensing
  • Regulatory:
    • UL/CSA/IEC 60950-1
    • FCC Class A
    • CE
    • CCC
    • KC
    • PSE
    • CU
    • SABS
    • BIS
    • VCCI
    • RCM

NOTE: This product conforms to all relevant European directives, standards, safety, health and environmental concerns RoHS, REACH, WEEE
