Rode RØDELink Filmmaker Kit
Camera-Mount Digital Wireless Lavalier Microphone System

OUR PART #:  FILMMAKER-KIT

The RØDELink Filmmaker Kit from RØDE represents the next generation of digital wireless systems.
Learn More
Our Price: $399.00
List Price: $599.00
You save 33%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Rode RØDELink Filmmaker Kit
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

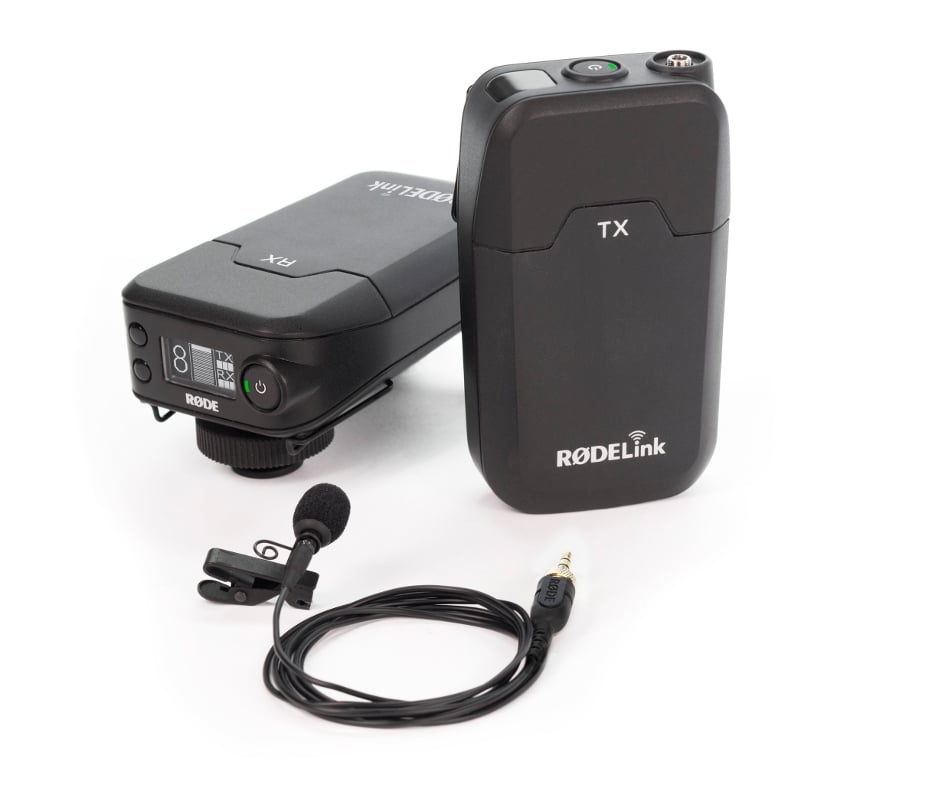

The RØDELink Filmmaker Kit from RØDE represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 meters (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE’s omnidirectional Lavalier microphone is included in the kit to provide the highest possible audio reproduction quality.

RØDE RØDELink Filmmaker Kit Includes:

  • One (1) RØDE Lavalier Microphone
  • One (1) RX-CAM Camera-Mounted Wireless Receiver
  • One (1) TX-BELT Wireless Bodypack Transmitter
  • One (1) Captive TRS Cable

RØDE RØDELink Filmmaker Kit Features:

  • Series II, 2.4GHz digital transmission
  • 128-bit encryption
  • Up to 100 meter range
  • OLED display (on receiver)
  • One button pairing
  • Three level gain control
  • AA battery or USB powered

RØDE RØDELink Filmmaker Kit Specifications:

  • Overall System:
    • Transmission Type:  2.4GHz Fixed Frequency Agile System
    • System Dynamic Range:  112dB
    • Range (Distance):  100m
    • Frequency Range:  35 Hz - 22 kHz
    • Maximum Output Level:  1v Rms (2.8v P-p)
    • Max Input Signal Level:  1v Rms (2.8v P-p)
    • Max Latency:  4ms
  • RX-CAM Receiver:
    • Power Source:  2 X AA Battery Or MicroUSB
    • Antenna:  Internal
    • Output Connection:  3.5mm TRS Locking Jack Socket - Dual Mono
    • Output Impedance:  300 Ohms
    • Dimensions:  111mm x 65mm x 52mm
    • Weight:  190gm
  • TX-BELT Transmitter:
    • Power Source:  2 X AA Battery Or MicroUSB
    • Antenna:  Internal
    • Output Connection:  3.5mm TRS Locking Jack Socket
    • Output Impedance:  10 kOhms
    • Dimensions:  111mm x 65mm x 40mm
    • Weight:  190gm
  • Lavalier Microphone:
    • Acoustic Principle:  Pressure Gradient
    • Active Electronics:  JFET impedance converter
    • Capsule:  0.10"
    • Address Type:  End
    • Frequency Range:  60 Hz - 18 kHz
    • Output Impedance:  3000 Ohms
    • Maximum SPL:  110dB SPL (@ 1 kHz, 1% THD into 1 kOhm load)
    • Maximum Output Level:  189.0dBu (@ 1 kHz, 1% THD into 1 kOhm load
    • Sensitivity:  -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) Â± 2 dB @ 1 kHz
    • Equivalent Noise Level (A-weighted):  25dB-A
    • Weight:  1.00gm
    • Dimensions:  12.00mm H x 4.50mm W x 4.50mm D
    • Warranty:  10 year warranty
