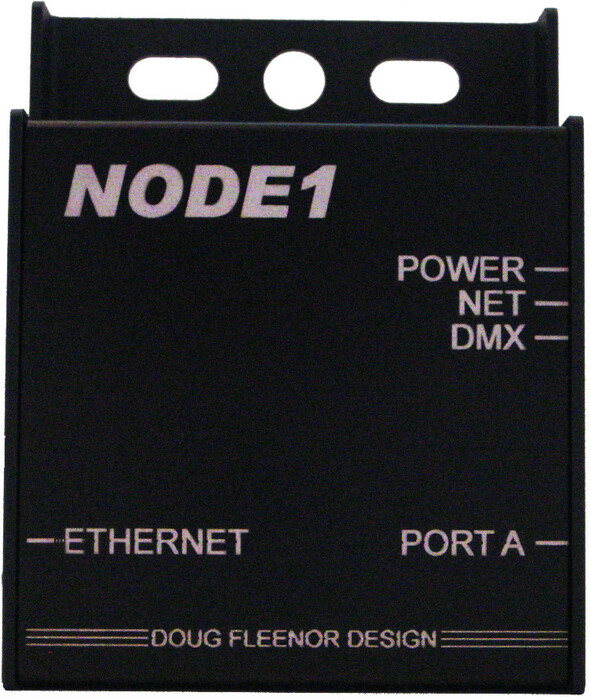

Doug Fleenor Designs NODE1-P
Ethernet-DMX Interface - Portable Version

OUR PART #:  NODE1-P

The Doug Fleenor Design NODE1-P is a Portable, single-gang, Ethernet-to-DMX interface, offering flexibility in mounting options.
Learn More
Our Price: $627.75
List Price: $775.00
You save 19%!
Write the first review.

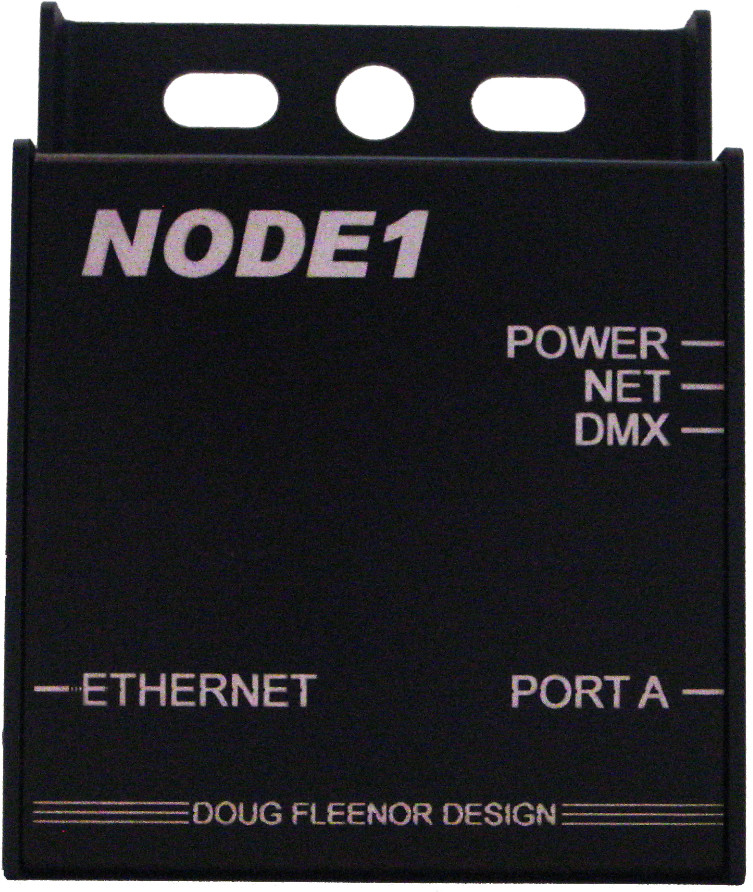

Doug Fleenor Designs NODE1-P
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Doug Fleenor Design NODE1-P is a Portable, single-gang, Ethernet-to-DMX interface, offering flexibility in mounting options. It has zero boot time and accepts ArtNet (version 3 or prior), streaming ACN (ANSI E1.31, Net3) or draft streaming ACN protocol. The single DMX port can be configured as either an input or output. Configuration is done using any web-browser (Internet Explorer, Firefox, Safari, etc). Powered by Power over Ethernet (POE) the NODE1-P requires only a single cat5 cable for power and signal.

The NODE1-P, like all Doug Fleenor Design products, has a 5-year manufacturer's warranty

Doug Fleenor Design NODE1-P Specifications:

  • Power input: Power over Ethernet, POE (802.11af), 3W
  • Color: Black
  • Dimensions:
    • Faceplate: 4.5" H x 2.75" W
    • Rear of the Unit (HxWxD): 2.75" x 1.6" x 1.7"
    • Min Box Size (HxWxD): 3.875" x 1.75" x 2.75"
  • Weight: 0.5 lbs.
  • Ethernet:
    • Ethernet circuit: 100BASE-TX Fast Ethernet, MDIX, and Auto Negotiation
    • Connector: RJ45
    • Isolation: 1500 Volts
  • DMX Port:
    • DMX circuit: EIA-485 transceiver with 120 Ohm fail-safe termination between +Data and -Data
      NOTE: This product uses slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections.
    • Input signal: 0.2 Volts minimum, 12 Volts maximum
    • Output signal: 1.5 Volts (minimum) into 120 Ohm Termination
    • Connectors: Gold-plated 5-pin XLR (typically female connector, male on request)
    • Port protection: +60V continuous, +15KV transient
