Doug Fleenor Designs NODE1-A
Wall-Mount Ethernet to DMX Interface

OUR PART #:  NODE1-A

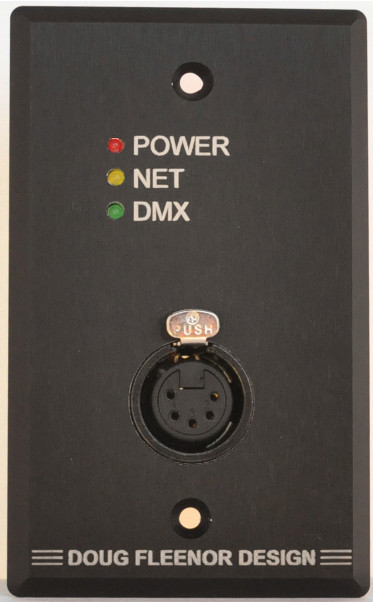

The Doug Fleenor Design NODE1 is a single-gang wall-mount Ethernet-to-DMX interface.
Learn More
Our Price: $627.75
List Price: $775.00
You save 19%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs NODE1-A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Doug Fleenor Design NODE1 is a single-gang wall-mount Ethernet-to-DMX interface. It has zero boot time and accepts ArtNet (version 3 or prior), streaming ACN (ANSI E1.31, Net3) or draft streaming ACN protocol. The single DMX port can be configured as either an input or output. Configuration is done using any web-browser (Internet Explorer, Firefox, Safari, etc). Powered by Power over Ethernet (POE) the NODE1 requires only a single cat5 cable for power and signal.

The NODE1, like all Doug Fleenor Design products, has a 5-year manufacture's warranty

The NODE1 can also be installed with male or female connectors for no extra cost by specifing NODE1-A-I for input and NODE1-A-O for output. Please contact your sales representative for more information on this option.

Doug Fleenor Design NODE1-A Specifications:

  • Power input: Power over Ethernet, POE (802.11af), 3W
  • Color: Black
  • Dimensions:
    • Faceplate: 4.5" H x 2.75" W
    • Rear of the Unit: 2.75" H x 1.6" W x 1.7" D
    • Min Box Size: 3.875" H x 1.75" W x 2.75" D
  • Weight: 0.5 lb
  • Ethernet:
    • Ethernet circuit: 100BASE-TX Fast Ethernet, MDIX, and Auto Negotiation
    • Connector: RJ45
    • Isolation: 1500 Volts
  • DMX Port:
    • DMX circuit: EIA-485 transceiver with 120 ohm fail safe termination between +Data and -Data
      NOTE: This product uses slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections.
    • Input signal: 0.2 Volts minimum, 12 Volts maximum
    • Output signal: 1.5 Volts (minimum) into 120 Ohm Termination
    • Connectors: Gold-plated 5-pin XLR (typically female connector, male on request)
    • Port protection: +60V continuous, +15KV transient
