Audio-Technica ATW-1322 System 10 PRO Dual-Channel Digital Wireless System with 2 Handheld Mics

OUR PART #: ATW-1322 MFR #: ATW-1322

Copied to clipboard

Pro-grade, rack-mountable digital wireless in an easily expandable system. ...Read more

Audio-Technica ATW-1322 System 10 PRO Dual-Channel Digital Wireless System With 2 Handheld Mics Image 1
Audio-Technica ATW-1322 System 10 PRO Dual-Channel Digital Wireless System With 2 Handheld Mics Image 2
Audio-Technica ATW-1322 System 10 PRO Dual-Channel Digital Wireless System With 2 Handheld Mics Image 3
rL1gpxKW-1A
2 Videos
Audio-Technica ATW-1322 System 10 PRO Dual-Channel Digital Wireless System With 2 Handheld Mics
Our Price: $899.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$25/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Pro-grade, rack-mountable digital wireless in an easily expandable system.

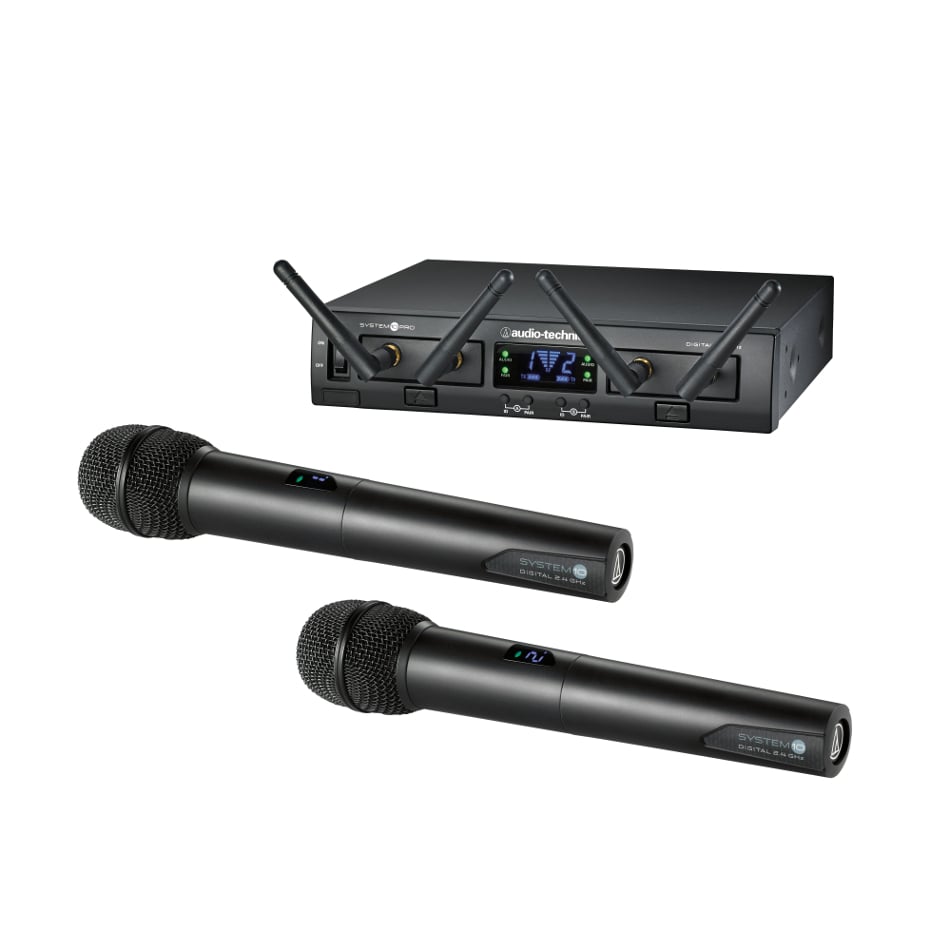

Part of Audio-Technica’s System 10 PRO Rack-Mount digital wireless series, the ATW-1322 configuration includes the ATW-RC13 Rack-Mount receiver chassis, (2) ATW-RU13 Receiver units, and (2) ATW-T1002 handheld dynamic microphone/transmitters. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable.

System 10 PRO Rack-Mount

Providing the same interference-free operation in the 2.4 GHz range (outside the TV bands) as the original System 10 wireless system, the System 10 PRO Rack-Mount system further expands upon the original's features and versatility. Among those features is a durable half-rack chassis equipped to house 2 receiver units that can be operated locally -or- released from the chassis and mounted in a remote location (up to 328 feet away) via Ethernet cable. Up to 5 chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with simultaneous use of up to 10 channels (additional chassis and receiver units sold separately).

Like all System 10 wireless products, the PRO Rack-Mount includes quality features like 24-bit operation, easy setup, clear and natural sound quality, and 3 levels of diversity assurance – Frequency, Time, and Space:

  • Frequency Diversity sends the signal on 2 dynamically-allocated frequencies for interference-free communication
  • Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference.
  • Space Diversity uses 2 antennas on each transmitter and receiver unit to maximize signal integrity

Includes

  • ATW-RC13 Rackmount Receiver Chassis, with:
    • Power supply
    • AC adapter
    • Link cable
    • Rack-mount adapters
    • Joining plate
    • Rubber feet
  • (2) ATW-RU13 Receiver Units, each with:
    • Antennas
    • AT8690 RU13 holder
  • (2) ATW-T1002 Mic Transmitters, each with:
    • AT8456a Quiet-Flex™ stand clamp

Features

  • Digital 24-bit / 48 kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4 GHz range – completely free from TV interference
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis (ten receiver units) can be linked and used simultaneously - all additional units sold separately
  • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level and system link status
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync and setup
  • Three levels of diversity assurance: frequency, time an space
  • Ground-lift switch helps eliminate audible hum caused by ground loops

Specifications

  • Overall System:
    • Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
    • Dynamic Range: > 109 dB (A-weighted), typical
    • Total Harmonic Distortion: < 0.05% typical
    • Operating Range: 200ft (60m), open range env. with no interfering signals
    • Operating Temperature Range: 32 °F to 104 °F (0 °C to +40 °C), battery performance may be reduced at very low temperatures
    • Frequency Response: 20 Hz - 20 kHz
    • Maximum Simultaneous Use (Recommended): 200ft minimum
  • ATW-RC13 Receiver Chassis:
    • Maximum Output Level:
      • XLR, balanced: 0 dBV
      • ¼" (6.3mm), unbalanced: +6 dBV
    • Power Supply: 100 - 240 VAC (50/60 Hz) to 12 VDC, 0.5 A, power supply switched mode external
    • Dimensions (W x H x D): 8.26" x 1.73" x 6.67" (209.8 x 44 x 169.3mm)
    • Net Weight: 33.2 oz. (940 g)
    • Remote receiver connector: RJ45
  • ATW-RU13 Receivers:
    • Receiving System: Diversity (frequency/time/space)
    • Remote Receiver Connector: RJ-45
    • Mounting Thread Insert: ¼" x 20
    • Dimensions (W x H x D): 2.24" x 0.75" x 3.06" (57 x 19 x 77.6mm)
    • Net Weight: 2.3 oz. (64 g)
  • ATW-T1002 Handheld Mic/Transmitters:
    • RF Power Output: 10mW
    • Spurious Emissions: Following federal and national regulations
    • Batteries: (2) 1.5 V AA (sold separately)
    • Battery Life: > 7 hours (alkaline) Battery
    • Dimensions (L x Ø): 10.03" x 1.97" (254.8 x 50mm)
    • Net Weight, without batteries: 9.9 oz. (280 g)
  • Note: further information can be found within the items located under the "Documentation" tab above
