Audio-Technica ATW-1312/L System 10 PRO Wireless Combo System with Handheld and Lavalier Mic

OUR PART #: ATW-1312/L MFR #: ATW-1312/L

Copied to clipboard

Pro-grade, rack-mountable digital wireless in an easily expandable system. ...Read more

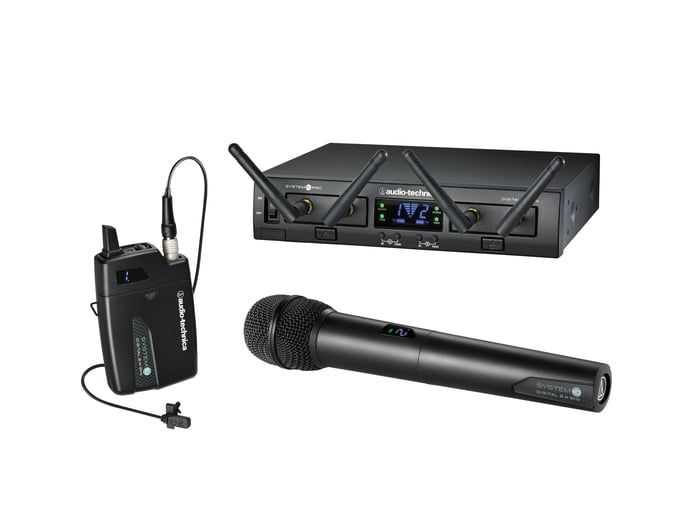

Audio-Technica ATW-1312/L System 10 PRO Wireless Combo System With Handheld And Lavalier Mic Image 1

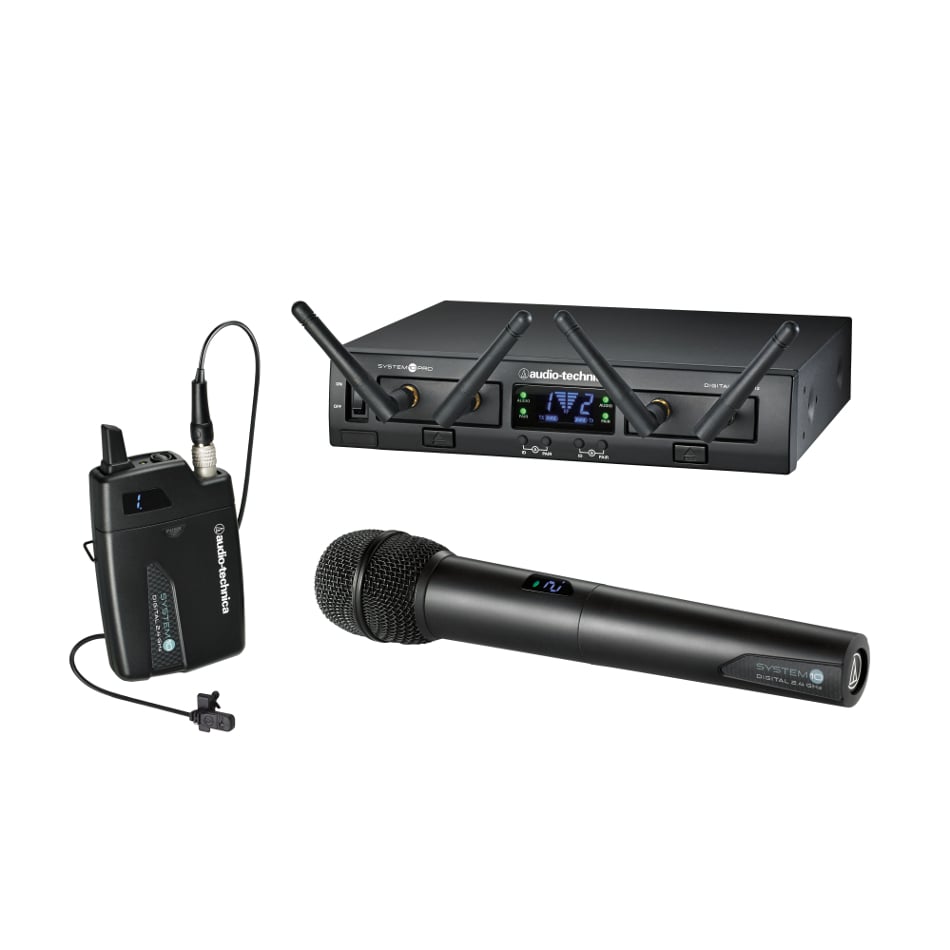

Audio-Technica ATW-1312/L System 10 PRO Wireless Combo System With Handheld And Lavalier Mic Image 2
Audio-Technica ATW-1312/L System 10 PRO Wireless Combo System With Handheld And Lavalier Mic Image 3
rL1gpxKW-1A
2 Videos
Audio-Technica ATW-1312/L System 10 PRO Wireless Combo System With Handheld And Lavalier Mic
Our Price: $949.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$27/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Pro-grade, rack-mountable digital wireless in an easily expandable system.

The ATW-1312/L configuration includes the ATW-RC13 Rack-Mount receiver chassis, (2) ATW-RU13 Receiver units, ATW-T1002 Handheld dynamic unidirectional microphone/transmitter, and ATW-T1001 UniPak® body-pack transmitter with MT830cW Lavalier microphone.

System 10 PRO Rack-Mount

Providing the same interference-free operation in the 2.4GHz range (outside the TV bands) as the original System 10 wireless system, the System 10 PRO Rack-Mount system further expands upon the original's features and versatility. Among those features is a durable half-rack chassis equipped to house 2 receiver units that can be operated locally -or- released from the chassis and mounted in a remote location (up to 328 feet away) via Ethernet cable. Up to 5 chassis (10 receiver units) can be linked using the RJ-12 cable included with each system, creating a stable, multichannel system with simultaneous use of up to 10 channels (additional chassis and receiver units sold separately).

Like all System 10 wireless products, the PRO Rack-Mount includes quality features like 24-bit operation, easy setup, clear and natural sound quality, and 3 levels of diversity assurance – Frequency, Time, and Space:

  • Frequency Diversity sends the signal on 2 dynamically-allocated frequencies for interference-free communication
  • Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference.
  • Space Diversity uses 2 antennas on each transmitter and receiver unit to maximize signal integrity

Includes

  • (1) ATW-RC13 rack-mount receiver chassis, with:
    • Power supply
    • AC adapter
    • Link cable
    • Rack-mount adapters
    • Joining plate
    • Rubber feet
  • (2) ATW-RU13 receiver units, with:
    • Antennas
    • AT8690 RU13 holder
  • (1) ATW-T1002 handheld dynamic unidirectional microphone/transmitter
  • (1) ATW-T1001 UniPak® transmitter
  • (1) MT830cW lavalier microphone
  • Accessories Included: Windscreen, Clothing Clip

Features

  • Digital 24-bit / 48kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4GHz range – completely free from TV interference
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis (ten receiver units) can be linked and used simultaneously (additional units
  • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, and setup
  • Three levels of diversity assurance: frequency, time, and space
  • Ground-lift switch helps eliminate audible hum caused by ground loops

Specifications

  • Overall System:
    • Operating Frequencies: 2.4GHz ISM band
    • Dynamic Range: > 109dB (A-weighted), typical
    • Total Harmonic Distortion: < 0.05% typical
    • Operating Range: 200ft (60m) Open range env. with no interfering signals
    • Operating Temperature Range: 32°F -104°F (0°C - +40°C)
    • Frequency Response: 20Hz - 20kHz (Depending on microphone type)
  • ATW-RC13 Receiver Chassis:
    • Maximum Output Level:
      • XLR, balanced: 0dBV
      • ¼" (6.3mm), unbalanced: +6dBV
    • Power Supply: 100 - 240VAC (50 / 60Hz) to 12VDC, 0.5A, power supply switched mode external
    • Dimensions (W x H x D): 8.26" x 1.73" x 6.67" (209.8 x 44 x 169.3mm)
    • Net Weight: 33.2oz. (940g)
    • Remote receiver connector: RJ-45
  • ATW-RU13 Receiver:
    • Receiving System: Diversity (frequency/time/space)
    • Remote Receiver Connector: RJ-45
    • Mounting Thread Insert: ¼" x 20
    • Dimensions (W x H x D): 2.24" x 0.75" x 3.06" (57 x 19 x 77.6mm)
    • Net Weight: 2.3oz. (64g)
    • ATW-T1001 UniPak Body-pack Transmitter:
      • RF Power Output: 10mW
      • Spurious Emissions: Following federal and national regulations
      • Input Connection, cW-style 4-pin Locking Connector:
        • Pin 1: GND
        • Pin 2: INST INPUT
        • Pin 3: MIC INPUT
        • Pin 4: DC BIAS +9V
      • Batteries: (2) 1.5V AA (sold separately)
      • Battery Life: > 7 hours (alkaline) Depending on battery type and use pattern
      • Dimensions (W x H x D): 2.76" x 4.21" x 0.98" (70.2 x 107.0 x 24.9mm)
      • Net Weight, without batteries: 3.5oz. (100g)
    • ATW-T1002 Handheld Mic/Transmitter:
      • RF Power Output: 10mW
      • Spurious Emissions: Following federal and national regulations
      • Batteries: (2) 1.5V AA (sold separately)
      • Battery Life: > 7 hours (alkaline) Battery
      • Dimensions (L x Dia): 10.03" x 1.97" (254.8 x 50.0mm)
      • Net Weight: 9.9oz. (280g) without batteries
    • MT830cW Lavalier Microphone:
      • Element: Fixed-charge back plate, permanently-polarized condenser
      • Polar Pattern: Omnidirectional
      • Frequency Response: 30Hz - 20kHz
      • Maximum Input Sound Level: 135dB SPL (sound pressure level), 1kHz @ Max SPL
      • Connector: Locking 4-pin connector for UniPak transmitter
      • Cable Length: 55" (1.4m)
    • Note: further information can be found within the items located under the "Documentation" tab above.
