Audio-Technica ATW-1312 System 10 PRO Dual-Channel Digital Wireless Combo System with Handheld Mic & Bodypack

OUR PART #: ATW-1312 MFR #: ATW-1312

Copied to clipboard

Pro-grade, rack-mountable digital wireless in an easily expandable system. ...Read more

Audio-Technica ATW-1312 System 10 PRO Dual-Channel Digital Wireless Combo System With Handheld Mic & Bodypack Image 1
Audio-Technica ATW-1312 System 10 PRO Dual-Channel Digital Wireless Combo System With Handheld Mic & Bodypack Image 2
Audio-Technica ATW-1312 System 10 PRO Dual-Channel Digital Wireless Combo System With Handheld Mic & Bodypack Image 3
08Ub6isAgLs
1 Video
Audio-Technica ATW-1312 System 10 PRO Dual-Channel Digital Wireless Combo System With Handheld Mic & Bodypack
Our Price: $879.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$25/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Pro-grade, rack-mountable digital wireless in an easily expandable system.

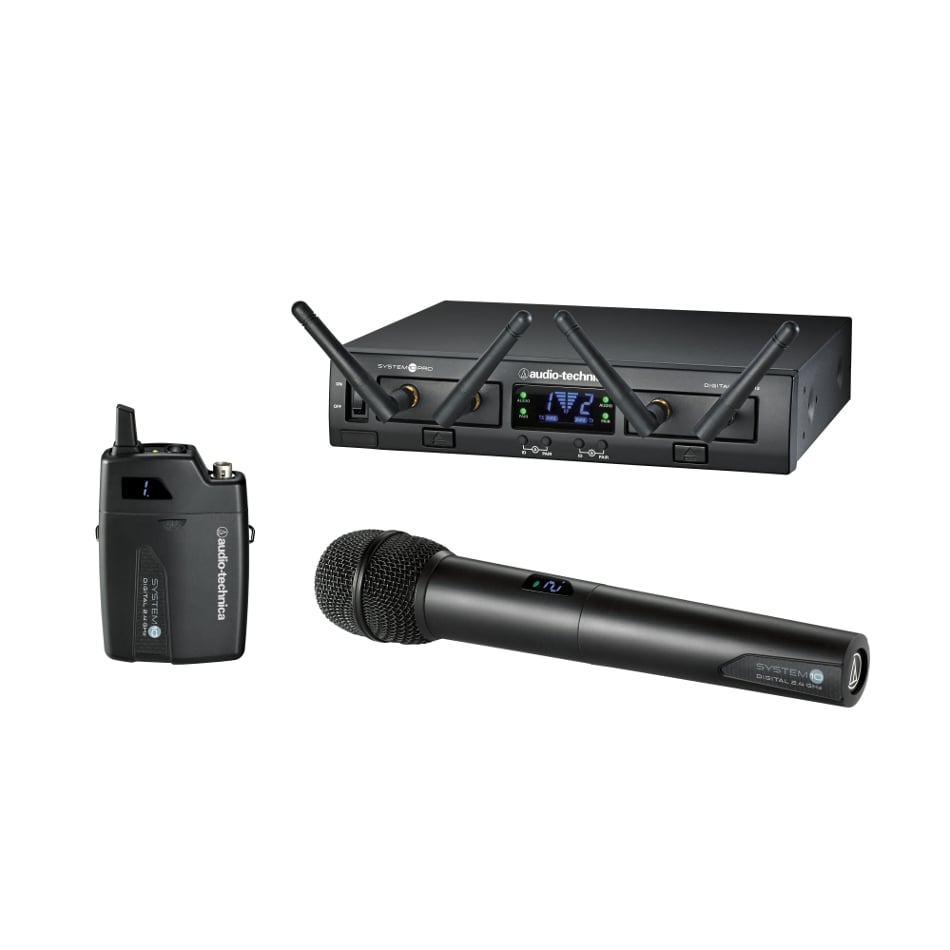

The ATW-1312 configuration includes the ATW-RC13 Rack-Mount receiver chassis, (2) ATW-RU13 Receiver units, ATW-T1002 Handheld dynamic unidirectional microphone/transmitter, and ATW-T1001 UniPak® Body-pack transmitter.

Please note: you'll need to select a microphone or cable with a cW-style locking 4-pin connector to complete this system.

System 10 PRO Rack-Mount

Providing the same interference-free operation in the 2.4GHz range (outside the TV bands) as the original System 10 wireless system, the System 10 PRO Rack-Mount system further expands upon the original's features and versatility. Among those features is a durable half-rack chassis equipped to house 2 receiver units that can be operated locally -or- released from the chassis and mounted in a remote location (up to 328 feet away) via Ethernet cable. Up to 5 chassis (10 receiver units) can be linked using the RJ-12 cable included with each system, creating a stable, multichannel system with simultaneous use of up to 10 channels (additional chassis and receiver units sold separately).

Like all System 10 wireless products, the PRO Rack-Mount includes quality features like 24-bit operation, easy setup, clear and natural sound quality, and 3 levels of diversity assurance – Frequency, Time, and Space:

  • Frequency Diversity sends the signal on 2 dynamically-allocated frequencies for interference-free communication
  • Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference.
  • Space Diversity uses 2 antennas on each transmitter and receiver unit to maximize signal integrity

Includes

  • ATW-RC13 rack-mount receiver chassis:
    • Power supply
    • AC adapter
    • Link cable
    • Rack-mount adapters
    • Joining plate
    • Rubber feet
  • (2) ATW-RU13 slide-in receiver units, each with:
    • AC adapter
    • Link cable
    • Rack-mount adapters
    • Joining plate
    • Rubber feet
  • ATW-T1002 handheld dynamic unidirectional microphone/transmitter:
    • AT8456a Quiet-Flex™ stand clamp
  • ATW-T1001 UniPak® Body-pack transmitter

Features

  • Digital 24-bit / 48kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4GHz range – completely free from TV interference
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis (ten receiver units) can be linked and used simultaneously - additional units sold separately
  • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, and setup
  • Three levels of diversity assurance: frequency, time, and space
  • Ground-lift switch helps eliminate audible hum caused by ground loops

Specifications

  • Overall System:
    • Operating Frequencies: 2.4GHz ISM band
    • Dynamic Range: > 109dB (A-weighted), typical
    • Total Harmonic Distortion: < 0.05% typical
    • Operating Range: 200ft (60m) Open range env. with no interfering signals
    • Operating Temperature Range: 32°F to 104°F (0°C to +40°C)*
    • Frequency Response: 20Hz - 20kHz (Depending on microphone type)
  • ATW-RU13 Receiver:
    • Receiving System: Diversity (frequency/time/space)
    • Output Connectors: Remote Receiver Connector: RJ-45
    • Link Connector: RJ-12
    • Maximum Output Level: XLR, balanced: 0dBV ¼" (6.3 mm), unbalanced: +6dBV
    • Power Supply: 100 - 240VAC (50 / 60Hz) to 12VDC, 0.5A, power supply switched mode external
    • Dimensions (W x H x D): 8.26" x 1.73" x 6.67" (209.8 x 44 x 169.3mm)
    • Net Weight: 33.2oz. (940g)
  • ATW-T1001 UniPak Body-pack Transmitter:
    • RF Power Output: 10mW
    • Spurious Emissions: Following federal and national regulations
    • Input Connections - 4-pin Locking Connector:
      • Pin 1: GND
      • Pin 2: INST INPUT
      • Pin 3: MIC INPUT
      • Pin 4: DC BIAS +9V
    • Batteries: (2) 1.5V AA (sold separately)
    • Battery Life: > 7 hours (alkaline) Depending on battery type and use pattern
    • Dimensions (W x H x D): 2.76" x 4.21" x 0.98" (70.2 x 107.0 x 24.9mm)
    • Net Weight, without batteries: 3.5oz. (100g)
  • ATW-T1002 Handheld Mic/Transmitter:
    • RF Power Output: 10mW
    • Spurious Emissions: Following federal and national regulations
    • Batteries: (2) 1.5V AA (sold separately)
    • Battery Life: > 7 hours (alkaline) Battery
    • Dimensions (L x Dia): 10.03" x 1.97" (254.8 x 50.0mm)
    • Net Weight: 9.9oz. (280g) without batteries
  • Note: further information can be found within the items located under the "Documentation" tab above.
