Product Overview
Pro-grade, rack-mountable digital wireless in an easily expandable system.

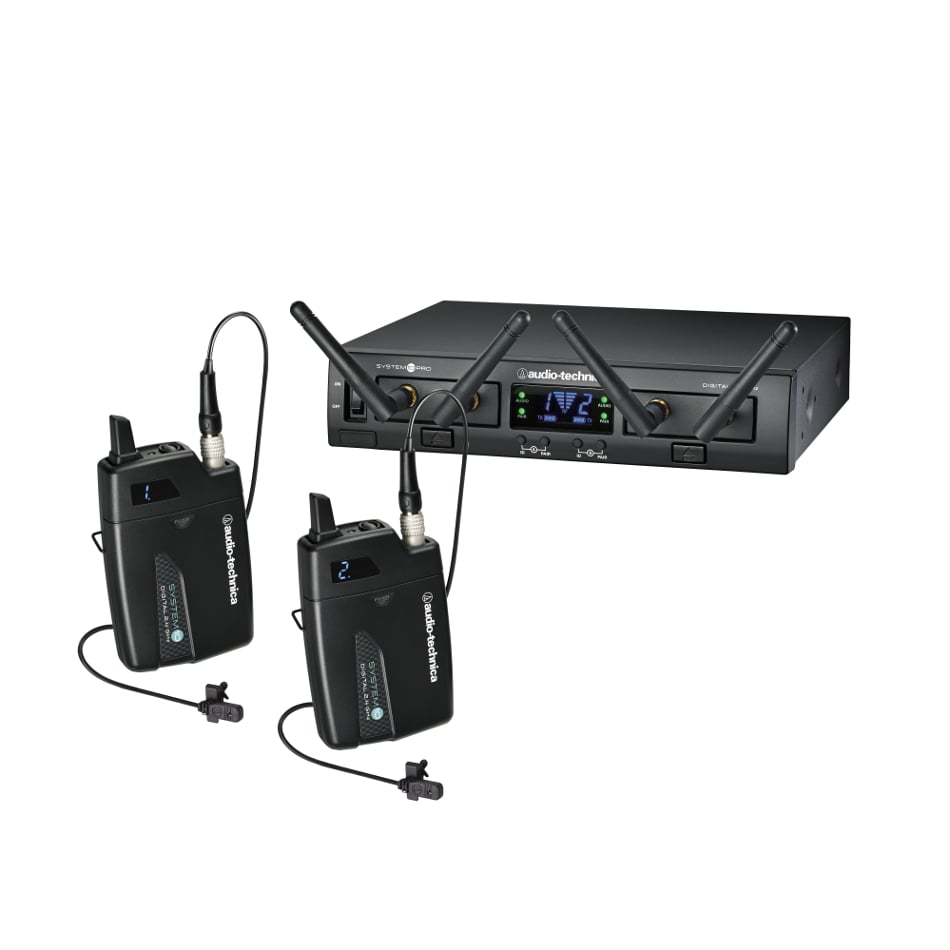

The ATW-1311/L configuration includes the ATW-RC13 Rack-Mount receiver chassis, two ATW-RU13 Receiver units, two ATW-T1001 UniPak® body-pack transmitters, and two MT830cW lavalier microphones.
System 10 PRO Rack-Mount
Providing the same interference-free operation in the 2.4GHz range (outside the TV bands) as the original System 10 wireless system, the System 10 PRO Rack-Mount system further expands upon the original's features and versatility. Among those features is a durable half-rack chassis equipped to house 2 receiver units that can be operated locally -or- released from the chassis and mounted in a remote location (up to 328 feet away) via Ethernet cable. Up to 5 chassis (10 receiver units) can be linked using the RJ-12 cable included with each system, creating a stable, multichannel system with simultaneous use of up to 10 channels (additional chassis and receiver units sold separately).
The PRO Rack-Mount, like all System 10 wireless products, features easy setup, 24-bit operation, clear, natural sound quality, and 3 levels of diversity assurance — frequency, time, and space:
- Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication
- Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference
- Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity
Includes
- ATW-RC13 Rack-mount receiver chassis
- (2) ATW-RU13 Receiver units
- (2) ATW-T1001 UniPak Body-pack transmitters
- (2) MT830cW x2 lavalier microphones
- Accessories Included: AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber fee
- Accessories Included: Windscreen, Clothing Clip
Features
- Digital 24-bit / 48kHz wireless operation for ultimate sound quality and dependable performance
- Operates in the 2.4GHz range – completely free from TV interference
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis (ten receiver units) can be linked and used simultaneously. Note: additional units sold separately
- Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
- Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync, and setup
- Three levels of diversity assurance: frequency, time and space
- Ground-lift switch helps eliminate audible hum caused by ground loops
Specifications
- Overall System:
- Operating Frequencies: 2.4GHz ISM band
- Dynamic Range: > 109dB (A-weighted), typical
- Total Harmonic Distortion: < 0.05%, typical
- Operating Range: 200ft (60m) Open range env. with no interfering signals
- Operating Temperature Range: 32°F to 104°F (0°C to +40°C) Battery performance may be reduced at very low temperatures
- Frequency Response: 20Hz - 20kHz (Depending on microphone type)
- ATW-RC13 Receiver Chassis:
- Maximum Output Level:
- XLR, balanced: 0dBV
- ¼" (6.3mm), unbalanced: +6dBV
- Power Supply: 100 - 240VAC (50 / 60Hz) to 12VDC, 0.5A, power supply switched mode external
- Dimensions (W x H x D): 8.26" x 1.73" x 6.67" (209.8 x 44 x 169.3mm)
- Net Weight: 33.2oz. (940g)
- Remote receiver connector: RJ-45
- Link Connector: RJ-12
- Accessories Included: AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
- ATW-RU13 Receiver units:
- Receiving System: Diversity (frequency/time/space)
- Output Connectors: Remote Receiver Connector: RJ-45
- Link Connector: RJ-12
- Maximum Output Level: XLR, balanced: 0 -dBV ¼" (6.3mm), unbalanced: +6dBV
- Power Supply: 100 - 240VAC (50 / 60Hz) to 12VDC, 0.5A, power supply switched mode external
- Dimensions (W x H x D): 8.26" x 1.73" x 6.67" (209.8 x 44 x 169.3mm)
- Net Weight: 33.2oz. (940g)
- ATW-T1001 UniPak Body-pack Transmitters:
- RF Power Output: 10mW
- Spurious Emissions: Following federal and national regulations
- Input Connections: 4-pin Locking Connector:
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +9V
- Batteries: Two 1.5V AA (sold separately)
- Battery Life: > 7 hours (alkaline) Depending on battery type and use pattern
- Dimensions (W x H x D): 2.76" x 4.21" x 0.98" (70.2 x 107 x 24.9mm)
- Net Weight, without batteries: 3.5oz. (100g)
- MT830cW Lavalier Microphones:
- Element: Fixed-charge back plate, permanently-polarized condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 30Hz - 20kHz
- Maximum Input Sound Level: 135dB SPL (sound pressure level), 1kHz @ Max SPL
- Connector: Locking 4-pin connector for UniPak transmitter
- Cable Length: 55" (1.4m)
- Note: further information can be found within the items located under the "Documentation" tab above.
