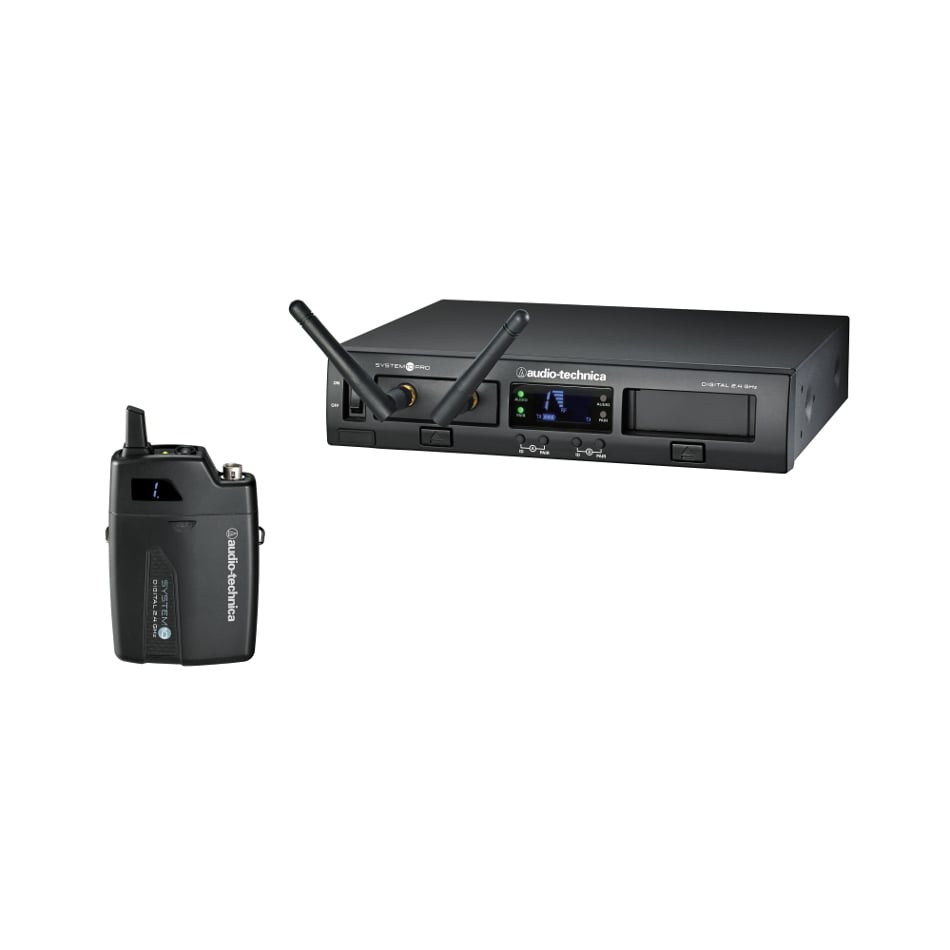

Audio-Technica ATW-1301
System 10 PRO Rackmount Digital Wireless Bodypack System with ATW-T1001 Bodypack Transmitter

OUR PART #:  ATW-1301

Audio-Technica’s ATW-1301, part of the System 10 PRO Rackmount digital wireless series...
Learn More
Audio-Technica ATW-1301 Antenna
Audio-Technica ATW-1301 Antenna1
Audio-Technica ATW-1301 Transmitter

Click a thumbnail to see more images. (5 total)

Our Price: $429.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Audio-Technica ATW-1301
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Audio-Technica’s ATW-1301, part of the System 10 PRO Rackmount digital wireless series, provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 but with expanded features and versatility. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.

Like all the products in the System 10 wireless family, the PRO Rackmount features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.

The ATW-1301 includes an ATW-RC13 receiver chassis with rackmount adapters, one ATW-RU13 receiver unit with corresponding AT8690 receiver unit mounting brackets, a joining plate (for dual-channel systems only), one RJ12 cable, one AC adapter, and one ATW-T1001 UniPak® bodypack. Both the receiver chassis and transmitters feature easy-to-read displays.

Audio-Technica ATW-1301 Features:

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4 GHz range – completely free from TV interference
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis (ten receiver units) can be linked and used simultaneously
  • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, and setup
  • Three levels of diversity assurance: frequency, time & space
  • Ground-lift switch helps eliminate audible hum caused by ground loops

Audio-Technica ATW-1301 Specifications:

  • Overall System:
    • Operating Frequencies:  2.4 GHz ISM band
    • Dynamic Range:  > 109dB (A-weighted), typical
    • Total Harmonic Distortion:  < 0.05% typical
    • Operating Range:  200 ft (60 m) Open range env. with no interfering signals
    • Operating Temperature Range:  0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
    • Frequency Response:  20 Hz to 20 kHz (Depending on microphone type)
  • Receiver Specifications:
    • Receiving System:  Diversity (frequency/time/space)
    • Output Connectors:  Remote Receiver Connector: RJ45
    • Link Connector:  RJ12
    • Maximum Output Level:  XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
    • Power Supply:  100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
    • Dimensions (WxHxD):  8.26" x  1.73" x  6.67" (209.8mm x 44mm x 169.3mm)
    • Net Weight:  33.2 oz (940 grams)
    • Accessories Included:  AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
  • Bodypack Transmitter Specifications:
    • RF Power Output:  10 mW
    • Spurious Emissions:  Following federal and national regulations
    • Input Connections - Four-pin Locking Connector:
      • Pin 1:  GND
      • Pin 2:  INST INPUT
      • Pin 3:  MIC INPUT
      • Pin 4:  DC BIAS +9V
    • Batteries:  Two 1.5V AA (not included)
    • Battery Life:  > 7 hours (alkaline) Depending on battery type and use pattern
    • Dimensions (WxHxD):  2.76" x 4.21" x 0.98" (70.2mm x 107.0mm x 24.9mm)
    • Net Weight:  3.5 oz (100 grams) without batteries
