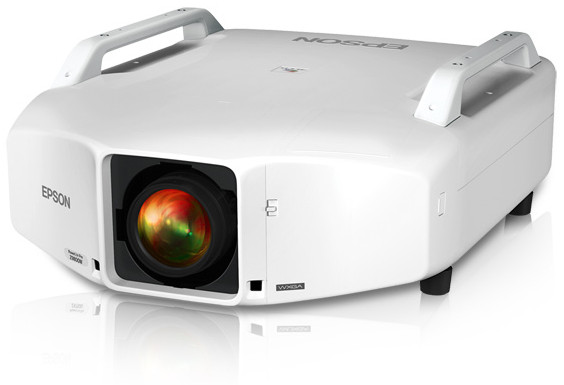

Epson PowerLite Pro Z9800WNL
8300 Lumens WXGA 3LCD Projector without Lens

OUR PART #:  POWERLITE-P-Z9800WNL

The Epson PowerLite Pro Z9800WNL projector combines bright projection with WXGA native widescreen performance, which is great for installation auditoriums...
Learn More
Epson PowerLite Pro Z9800WNL - Top View
Epson PowerLite Pro Z9800WNL - Connections
Epson PowerLite Pro Z9800WNL on Ceiling

Click a thumbnail to see more images. (5 total)

Call for price! Not available online.
List Price: $10,499.00

Similar Products

The Epson PowerLite Pro Z9800WNL projector combines bright projection with WXGA native widescreen performance, which is great for installation auditoriums, lecture halls and other large venues. Featuring 3LCD 3-chip technology and an array of connectivity options (including HDBaseT), this projector delivers uncompromised image quality and professional-grade reliability. And installation has never been more flexible with seven optional lenses, lens shift, Curved Edge Blending, Portrait Mode, and 360-degree projection features.

Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 8,300 lumens of color brightness** and 8,300 lumens of white brightness**, the Pro Z9800WNL projector uses 3LCD, 3-chip technology for brilliant images with true-to-life color.
*Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.
**Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

NOTE: Some images show the Epson PowerLite Pro Z9800WNL with a lens though one does not come with purchase of this projector.

Includes:

  • Epson PowerLite Pro Z9800WNL projector
  • Power cable
  • Computer cable
  • Projector remote control
  • Batteries
  • Cable cover
  • User manual CD
  • Quick Setup Sheet
  • PrivateLine support card
  • Password protection sticker
  • Monitor and Control CD

Epson PowerLite Pro Z9800WNL WXGA 3LCD Projector without Lens Features:

  • Features 8300 lumens of color brightness (color light output) and 8300 lumens of white brightness (white light output)
  • Edge Blending - Use multiple projectors to overlap images, and there are no bright spots wherethe overlap occurs, providing dynamic, seamless projection.
  • Portrait Modeallows you to turn the projector 90 degrees and use it in "portrait" mode. Great for digital signage, fashion shows, art galleries and museums.
  • HDBase-T is aninput source that combines HDMI, ethernet and RS-232 into one convenient Cat5e/6 cable, for expanded connectivity.
  • HDMI Connectivity includes digital, HDMI audio and video connection, for HD quality with just one cable
  • 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology
  • Widescreen, high-definition performance — WXGA (1280 x 800) resolution supports native widescreen performance for presentations, videos, digital signage and more
  • Seven optional lenses with lens shift — including short-, wide-, rear- and long-throw lenses designed with a change-out lever for easy installation
  • Flexible installation for immersive experiences in any setting —built-in Curved Edge Blending, Portrait Mode projection, and 360-degree installation
  • Get twice the brightness and power — optional stackable frame makes it easy to install two projectors for unbelievable brightness, plus 3D support
  • Dual-lamp design with lamp select/relay function — get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
  • Split Screen feature — project two images (video or still) side-by-side from two different sources simultaneously
  • Convenient monitor and control features — easily manage the projector, either directly or remotely; compatible with AMX®, Crestron® and Extron®

Epson PowerLite Pro Z9800WNL WXGA 3LCD Projector without Lens Specifications:

  • Projection System: High-aperture Epson 3-chip, 3LCD technology
  • Projection Method: Front / rear / ceiling mount
  • LCD Driving Method: Epson Poly-silicon TFT Active Matrix
  • Pixel Number: 1,024,000 pixels x 3LCDs
  • Color Brightness (Color Light Output): 8,300 lumens
  • White Brightness (White Light Output): 8,300 lumens
  • Aspect Ratio: Native 16:10 (supports 4:3, 16:9, 5:4)
  • Native Resolution: WXGA (1280 x 800)
  • Contrast Ratio: Normal, Dynamic Mode: Up to 15,000:1
  • Color Reproduction: Up to 1.07 billion colors
  • Color Processing: 10 bit
  • Lamp Type:
    • Normal: 380 W x 2 UHE
    • Portrait: 304 W x 2 UHE
  • Lamp Life:
    • Normal:
      • ECO mode: Up to 4000 hours
      • Normal mode: Up to 2000 hours
    • Portrait:
      • Normal mode: Up to 1000 hours
  • Brightness Uniformity: 90%
  • Pixel Arrangement: Cross stripe
  • Projection Lens:
    • Screen Throw Ratio Range : 1.74 – 2.82 (standard lens)
    • Size (projected distance): 60" – 500"
    • Type: Powered zoom / focus
    • F-number: 1.65 – 2.51 (standard lens), lens not included
    • Focal Length: 36 mm – 57.35 mm (standard lens)
    • Zoom Ratio: Optical zoom 1.0 – 1.61 (standard lens)
    • Powered Lens Shift:
      • Vertical: ±60%
      • Horizontal: ±18%
    • Keystone Correction:
      • Vertical: -30 degrees to +30 degrees
      • Horizontal: -30 degrees to +30 degrees
  • Video:
    • Video Standards:
      • Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
      • HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p
      • DVI-D: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
    • Video Processing:
      • 3D Y/C separation, 3D noise reduction, mosquito noise reduction
      • DCDi — Directional Correlational Deinterlacing Motion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)
    • Super Resolution:
      • FineFrame Interpolation
      • 8:8 Pull-down Processing
      • Closed Captioning
  • Interfaces:
    • Inputs:
      • 1x HDMI
      • 1x DVI-D
      • 1x HDBase-T
      • Computer: 2x D-sub 15-pin
      • Video: 5x BNC
      • Composite Video: 1x BNC
      • Wired Network: 1x RJ-45
      • Wireless Network: Optional
      • Serial: 1x RS-232c
      • 1x Hardwired Remote Jack
      • Monitor-Out: 1x D-sub 15-pin
      • USB Type-A: For wireless only
      • USB Type-B: For service only
  • Networking:
    • Connectivity:
      • Wired: Integrated 100Mbps
      • Wireless: Optional — 802.11b/g/n
      • Wireless Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)
    • E-mail Notification: via network
    • Message Broadcasting: SNMP
    • Web Control: Secure HTTP
    • Remote Control and Management:
      • Epson EasyMP® Monitor
      • Network projection
      • Multi-projection
      • AMX® Device Discovery
      • Crestron® Integrated Partner and Crestron RoomView®
      • Extron® IP Link and XTP
      • PJLink
  • Other Features:
    • Speaker: None
    • Audio Output: None
    • Operating Temperature:
      • Normal: 32° to 122° F (0° to 50° C)
      • Above 4900 feet: 32° to 104° F (0° to 40° C)
    • Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
    • Power Consumption:
      • ECO mode: 748 W
      • Normal mode: 844 W
      • Communication on: 2.7 W standby
      • Communication off: 0.26 W standby
    • Fan Noise:
      • ECO mode: 35 dB
      • Normal mode: 38 dB
    • Security: Kensington®- style lock provision, anchor (metal) bar for security lock or cable, handles attached to body for cable wrap
  • Dimensions:
    • Including feet (with standard lens): 21.02" W x 29.17" H x 10.04" D
    • Excluding feet (with standard lens): 21.02" W x 29.17" H x 7.76"D
  • Weight (with standard lens): 58 lbs
  • Remote Control:
    • Features: Brightness, contrast, tint, saturation, sharpness, input signal, sync, tracking, position, zoom, focus, lens shift, shutter, ID, source search, split screen
    • Operating Angle:
      • Front:
        • Right / Left: ±60 degrees
        • Upper / Lower: -45 to +15 degrees
      • Rear:
        • Right / Left: ±60 degrees
        • Upper / Lower: -40 to +15 degrees
    • Operating Distance: 98 ft
