Hafler PH44
Phono SUT/Booster

OUR PART #:  PH44-HAFLER

Our Price: $999.99
List Price: $1,200.00
You save 17%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Hafler PH44
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

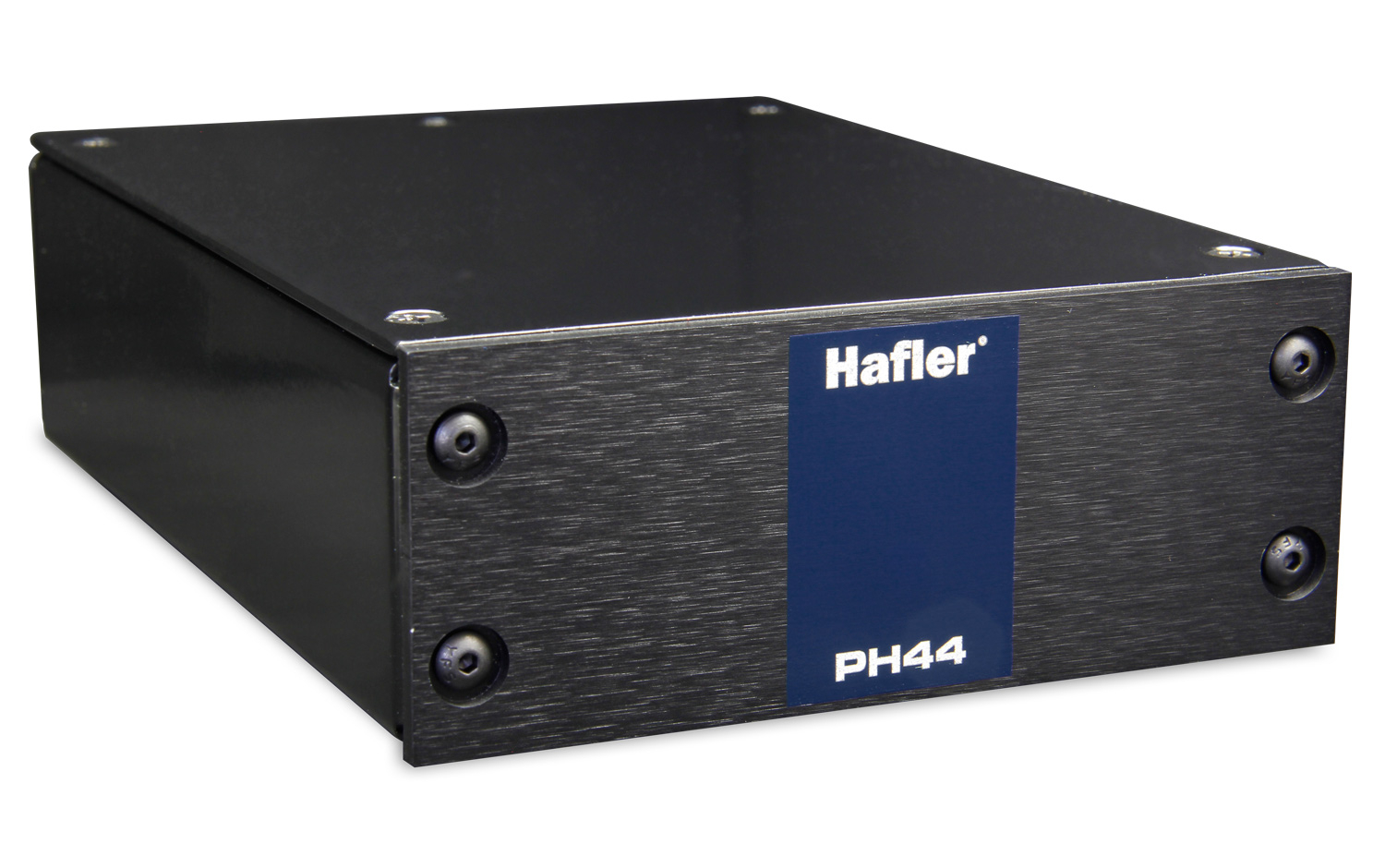

The Hafler PH44 is a passive device that employs an ultra high performance Jensen transformer to boost the low-level signal produced by a moving coil cartridge without any amplification or the associated noise that they produce. Jensen wrote the book on transformer technology and for over 40 years has gained the accolades of being the world’s most respected and revered audio transformer manufacturer.

The design begins with a 14 gauge steel casing to shield the low level signals from external magnetic fields and RF contamination. Gold-plated RCA input and output connector pairs are employed that will not tarnish over time, thus optimizing signal flow. Inside, each Jensen transformer is double shielded with heat treaded (annealed) nickel composite cans and supplemented with internal Faraday shielding to deliver over 120 dB of hum rejection at 60 Hz. These are hand wired to the connectors in a twisted pair configuration. With less than 0.05% distortion, virtually zero phase shift  and a frequency response that spans from 10 Hz to over 100 kHz, you can rest assured that the signal transfer will be pure and uncolored.

Designed to boost the signal of low impedance (45 Ohm) moving coil cartridges, the PH44 employs a Jensen JT-44K-DX transformer with a 1:10 turns-ratio that adds 20 dB of noise-free gain. This is ideally suited for Denon or similar cartridges that are often selected by the most demanding audiophiles. Since the Hafler PH44 is designed for the purist, there are no controls. One merely connects the turntable to the PH44, the output signal to a standard RIAA phono input on the receiver or preamp and the Halfer PH44 will quietly do the work without adding noise, distortion or artifact.

Hafler PH44 Features:

  • Passive SUT boosts the signal without adding noise
  • Hand wired Jensen transformer for unmatched performance
  • Ruler flat frequency response from 10 Hz to 100 kHz
  • Produces 20 dB of gain for low impedance (45 Ohm) styluses

Hafler PH44 Specifications:

  • Circuit: Passive transformer based design
  • Inputs: Gold plated RCA
  • Output: Gold plated RCA
  • Impedance: Optimized for 45 Ohm stylus
  • Gain: 20 dB
  • Size (W x D x H): 4.25" x 6" x 1.75" (114 x 152 x 44.5mm)
  • Power: Not required
  • Warranty: 3 year transferable
