Hafler PH50
Phono Preamp


Our Price: $399.99
Write the first review.

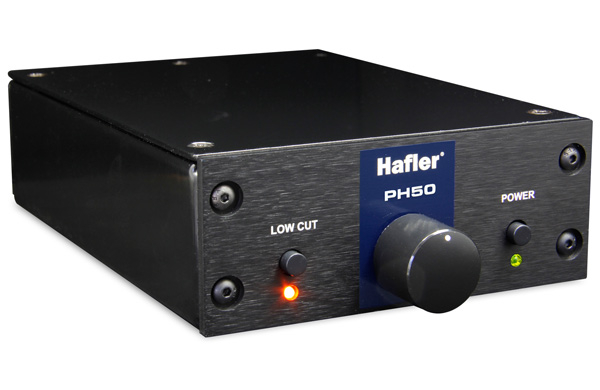

Hafler PH50
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Hafler PH50 is a high-performance phono stage for moving magnet (dynamic) cartridges that incorporates a well defined RIAA curve to preserve and transmit the original program material with minimal coloration. Particular attention has been applied to reducing noise, a problem common to the 33 RPM recording chain, resulting in a low -82dB noise floor with greater than 91dB of dynamic range and less than 0.002% distortion.

The design begins with a 14 gauge steel casing to shield the low level signals from external magnetic fields and RF contamination. Gold-plated input and output RCA connector pairs are employed that will not tarnish over time, thus optimizing signal flow. Inside, the solid-state circuit and military grade PC board have been optimized by carefully positioning parts for minimal self-noise and cross-talk and then supplemented with a ground plane to reduce susceptibility to RF. An external supply further reduces noise by removing the power transformer from inside the casing.

Front panel controls include a power on-off switch and a variable low-cut filter that may be inserted into the signal path when needed. The fully adjustable low cut (high-pass) filter enables the user to reduce low frequencies that can cause resonance and feedback when playing music at higher levels. This helps eliminate both airborne and solidly coupled transmission of vibrations that can disrupt the stylus and cause feedback, rumble and distortion.

Compact yet ‘plug and play’ easy to use, the PH50 follows Hafler’s 50 year tradition of building the very finest audio products.

Hafler PH50 Features:

  • Phono stages for moving magnet cartridges
  • Ultra low noise transformerless design
  • Variable high-pass filter to eliminate rumble
  • Plug and play easy to set up and use
  • Controls: Low pass cut off
  • Switches: Low pass ON, power
  • Low-cut filter: 20 Hz to 500 Hz
  • Filter Slope: 12 dB / Octave

Hafler PH50 Specifications:

  • Audio circuit type: Active operational amplifier
  • Frequency response: RIAA curve
  • Total harmonic distortion (THD+N): 0.008%
  • Dynamic range: 91 dB
  • Input impedance: 47 K Ohms
  • Maximum input: -21 dBu
  • Gain: 35 dB
  • Clip level - output: +12 dBu
  • Output impedance: 400 Ohms
  • Equivalent input noise: -79 dBu
  • Noise floor: -79 dBu
  • Intermodulation distortion: 0.04%
