Radial Engineering Space H 500 Tube Drive with Selectable Heater Voltage for 12Ax7 T

OUR PART #: SPACE-HEATER-500

Copied to clipboard

Developed alongside its 8-channel rackmount big brother, the Radial Engineering Space Heater 500 is a single channel tube drive designed for 500 series racks. ...Read more

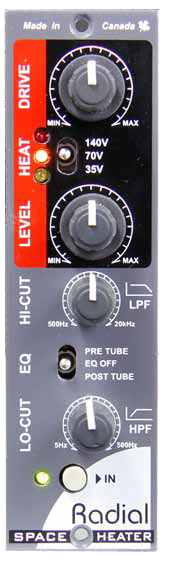

Radial Engineering Space H 500 Tube Drive With Selectable Heater Voltage For 12Ax7 T Image 1
Radial Engineering Space H 500 Tube Drive With Selectable Heater Voltage For 12Ax7 T
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Developed alongside its 8-channel rackmount big brother, the Radial Engineering Space Heater 500 is a single channel tube drive designed for 500 series racks. Its tube circuitry gives a range of effects on its own from subtle warmth and grit to full harmonic distortion.

The module begins with a 12AX7 tube with separate Level and Drive controls. A 3-position Heat switch enables the user to set the plate voltage between 35, 70 or 140 volts at the tube to vary the level of saturation from a little bit of grit to over the top distortion. An oversized transformer is employed at the output to bring vintage character and warmth to the signal path. Low pass and high pass filters let you focus the effect and may be inserted pre or post the distortion to suit. All this makes the Space Heater 500 an extremely fun module that delivers natural tube crunch to virtually anything you throw at it!

Once added to your 500 series rack, it functions as a piece of your customized channel strip, allowing you to achieve the exact sounds your recordings call for. Grab yours today to give your sound the iconic warmth and distortion of a vintage 12AX7 tube!

Features

  • Studio-grade 12AX7 tube distortion
  • Heat switch adjusts voltage applied to the tube
  • Variable high-cut and low-cut filters to focus distortion
  • Transformer coupled output for vintage tone

Specifications

  • Audio Circuit Type: Thermionic gain stage with solid state input and output buffers
  • Frequency Response: 20 Hz to 20 kHz, ±1 dB
  • Dynamic Range: 92 dB
  • Gain:
    • 32 dB @ 140 V
    • 27 dB @ 70 V
    • 13 dB @ 35 V
  • Clip Level: +22 dBu
  • Total Harmonic Distortion: Varies with Drive and Level settings
  • Intermodulation Distortion: Varies with Drive and Level Settings
  • Input Connectors: XLR, OmniPort unbalanced instrument
    • Input Impedance: 1 MΩ
    • Common Mode Rejection Ration (CMRR): -60 dB
    • Equivalent Input Noise: -102 dB
    • Noise: -70 dBu
    • Maximum Input: +20 dBu
  • Output Connectors: XLR
    • Output Impedance: 100 Ω
  • Feature: HPF, LPF, OmniPort, EQ Control
  • Construction: 500 Series Module
  • Conditions: For use in dry locations only, 5-40°C
  • Dimensions (H x W x D): 5.3" x 1.6" x 6.7"
  • Weight: 1.55 lbs
