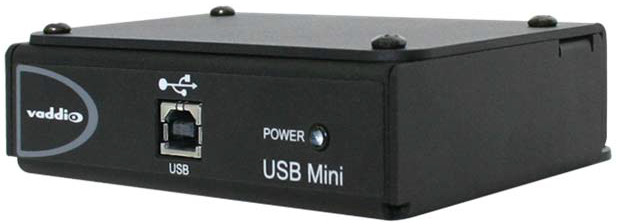

Vaddio 998-1105-039
Quick-Connect Mini USB Interface

OUR PART #  998-1105-039

Our Price: $838.50
List Price: $1,082.30
You save 23%!
In Stock

The Vaddio model 998-1105-039 USB Mini is part of the popular Vaddio Quick-Connect product line. Designed to address the demands of customers and integrators who required simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.
The USB Mini also offers easy mounting either on-wall or under-table with an integrated mounting tab similar to the style used on Vaddio EZCamera™ Interface Module or EZIM™. This provides the end user or integrator many possibilities for mounting in easily accessible locations, as requirements dictate.

Vaddio 998-1105-039 Quick-Connect USB Mini General Specifications:

  • Compatible Vaddio Cameras:
    • ZoomSHOT HD (sold separately) with 19X Motorized Optical Zoom (USB Mini Sold in ZoomSHOT Pkgs.)
    • WideSHOT HD (sold separately) Manual Focus, Manual Iris, and Manual 3X Zoom (USB Mini Sold in WideSHOT Pkgs.)
  • Control Type Cat-5 Cabling:
    • Internal Web Server (browser-based control), Telnet and RS-232 Control
    • Two (2) Cat-5 connections; 1st: EZ-Power Video (power to camera & video from camera), 2nd: RS-232 Serial Control
  • Cat-5 Max. Distance Connectors:
    • 150’ (45.72m) with stationary SHOT cameras (ZoomSHOT & WideSHOT)
    • USB 2.0 on Type-B female, EZ-POWER VIDEO on Shielded RJ-45F, RS-232 to Camera on Shielded RJ-45F
  • Streaming Resolutions:
    • USB 2.0 Video (UVC Drivers) with MJPEG Video Format
    • USB auto negotiated nine (9) resolutions from 720p/30 down to 180p available
  • Enclosure:
    • Dimensions: 3.125” (79.38mm) H x 4.5” (114.3mm) W x 1.125” (28.6mm) plus flange
    • Weight: 1.12 lbs. (0.51 kg)
  • Power:  24 VDC, 2.0 Amp on 5.5mm OD x 2.5mm ID Coaxial Connector, Positive Center

Specifications and pricing are subject to change without notice or obligation.

Vaddio 998-1105-039
Quick-Connect Mini USB Interface

OUR PART #  998-1105-039

Product Information:

The Vaddio model 998-1105-039 USB Mini is part of the popular Vaddio Quick-Connect product line. Designed to address the demands of customers and integrators who required simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.
The USB Mini also offers easy mounting either on-wall or under-table with an integrated mounting tab similar to the style used on Vaddio EZCamera™ Interface Module or EZIM™. This provides the end user or integrator many possibilities for mounting in easily accessible locations, as requirements dictate.

Vaddio 998-1105-039 Quick-Connect USB Mini General Specifications:

  • Compatible Vaddio Cameras:
    • ZoomSHOT HD (sold separately) with 19X Motorized Optical Zoom (USB Mini Sold in ZoomSHOT Pkgs.)
    • WideSHOT HD (sold separately) Manual Focus, Manual Iris, and Manual 3X Zoom (USB Mini Sold in WideSHOT Pkgs.)
  • Control Type Cat-5 Cabling:
    • Internal Web Server (browser-based control), Telnet and RS-232 Control
    • Two (2) Cat-5 connections; 1st: EZ-Power Video (power to camera & video from camera), 2nd: RS-232 Serial Control
  • Cat-5 Max. Distance Connectors:
    • 150’ (45.72m) with stationary SHOT cameras (ZoomSHOT & WideSHOT)
    • USB 2.0 on Type-B female, EZ-POWER VIDEO on Shielded RJ-45F, RS-232 to Camera on Shielded RJ-45F
  • Streaming Resolutions:
    • USB 2.0 Video (UVC Drivers) with MJPEG Video Format
    • USB auto negotiated nine (9) resolutions from 720p/30 down to 180p available
  • Enclosure:
    • Dimensions: 3.125” (79.38mm) H x 4.5” (114.3mm) W x 1.125” (28.6mm) plus flange
    • Weight: 1.12 lbs. (0.51 kg)
  • Power:  24 VDC, 2.0 Amp on 5.5mm OD x 2.5mm ID Coaxial Connector, Positive Center

Specifications and pricing are subject to change without notice or obligation.
