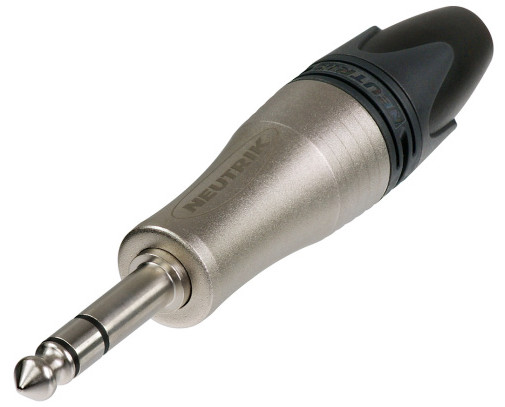

Neutrik NP3XL
1/4" TRS jumboPLUG Male Cable Connector

OUR PART #:  NP3XL

The Neutrik NP3XL is a 3-pole 1/4" professional phone plug for cables with an O.D. of up to 10 mm.
Learn More
Our Price: $5.82
List Price: $7.87
Save up to 38% when you order by quantity!
  • Buy 25: $5.25 each.
  • Buy 50: $5.06 each.
  • Buy 100: $4.87 each.
Write the first review.

Related Products

The Neutrik NP3XL is a 3-pole 1/4" professional phone plug for cables with an O.D. of up to 10 mm. The professional 1/4'' jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits of Neutrik's standard PX range.

Neutrik NP3XL 1/4" TRS jumboPLUG Features:

  • Robust diecast shell in stylish design
  • Proven chuck-type strain relief for reliable cable retention
  • Ergonomic design for best handling convenience
  • Precision-machined one-piece contacts - avoid hook up of tip contact

Neutrik NP3XL 1/4" TRS jumboPLUG Specifications:

  • Connection Type: Plug
  • Gender: male
  • Electrical:
    • Contact resistance: ? mOhm (inner) depends on mating connector
    • Dielectric strength: 1 kVdc
    • Insulation resistance: > 2 GOhm (initial), >/= 1 GOhm (after damp heat test)
    • Rated current per contact: ? A depends on mating connector
    • Rated voltage: < 50 V
  • Mechanical:
    • Cable O.D.: </= 10 mm
    • Lifetime: > 1000 mating cycles
    • Wiresize: 1 mm²
    • Wiresize: 18 AWG
  • Environmental:
    • Standard compliance: IEC 60603-11 / EIA RS-453
    • Temperature range: -20 °C to +65 °C
