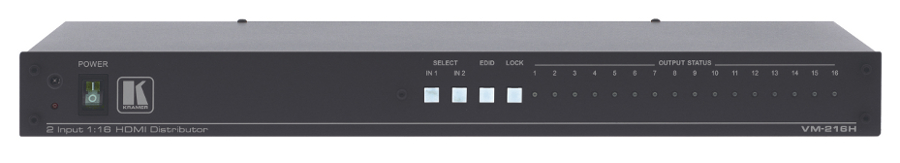

Kramer VM-216H
2x1:16 HDMI Distribution Amplifier

OUR PART #:  VM-216H

The VM-216H from Kramer is a distribution amplifier for HDMI signals. It reclocks and equalizes one of 2 selectable input signals and distributes it to 8 or 16 identical outputs.
Learn More
Our Price: $1,100.00
List Price: $1,375.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM-216H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VM-216H from Kramer is a distribution amplifier for HDMI signals. It reclocks and equalizes one of 2 selectable input signals and distributes it to 8 or 16 identical outputs.

Applications for the VM216-H include:

  • Home theater, presentation and multimedia applications.
  • Rental and staging.

Kramer VM-216H Features:

  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - Deep Color, x.v.Color™, Lip Sync, CEC.
  • 3D Pass-Through.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • Control - RS-232 & IR.
  • Active Output LED Indicators.
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19” Rack Mount Size - 1U.

Kramer VM-216H Specifications:

  • Inputs: 2 on HDMI connectors.
  • Outputs: 16 on HDMI connectors.
  • Bandwidth: 6.75Gbps (2.25Gbps per graphic channel).
  • Compliance With HDMI Standard: Supports HDMI and HDCP.
  • Controls: EDID, IN 1, IN 2, IR remote controller and LOCK buttons.
  • Indicator LEDs: Output status LEDs.
  • Operating Temperature: 0° to +40°C (32° to 104°F).
  • Storage Temperature: -40° to +70°C (-40° to 158°F).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Power Consumption: 100-240V AC, 50/60Hz, 48VA.
  • Dimensions: 19" x 7" x 1U W, D, H, rack mountable.
  • Weight: 2.5kg (5.5lbs) approx.
  • Included Accessories: Power cord, IR remote control transmitter.
