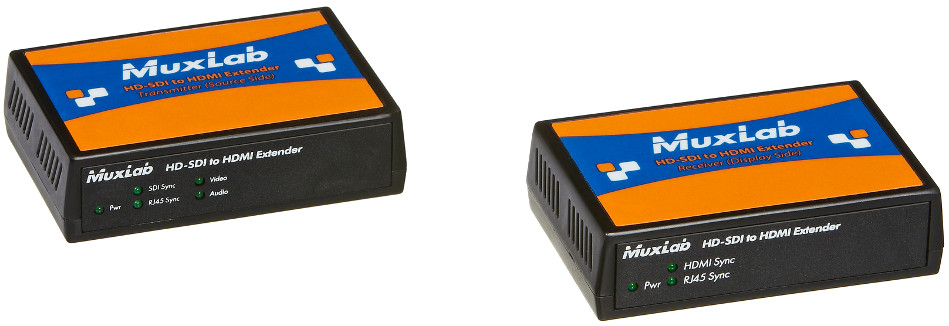

MuxLab 500715
3G-SDI to HDMI Extender Kit

OUR PART #:  MUX-500715

The MuxLab 500715 is their 3G-SDI to HDMI Extender Kit...
Learn More
Our Price: $697.51
List Price: $790.00
You save 12%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

MuxLab 500715
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The MuxLab 500715 is their 3G-SDI to HDMI Extender Kit, which converts HD-SDI to HDMI and then transmits it up to 330 ft (100m) via Cat5e/6 cable at all resolutions in a point-to-point configuration. The HD-SDI to HDMI Extender Kit supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment.

MuxLab MUX-500715 Features:

  • Up to 330 ft (100m) via Cat5e cable
  • Up to 400 ft (122m) via Cat6 cable
  • Supports:
    • SDI-SMPTE 259M-C (270Mbps)
    • HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps)
    • HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps)
  • LED diagnostics: sync, SDI detect

MuxLab MUX-500715 Specifications:

  • Environment: SDI single link: SD, HD & 3G.
  • Devices: Monitors supporting the original SDI rateonly.
  • Standard supported: SMPTE 259M (270Mb/s), SMPTE 292M& SMPTE 424M.
  • Bit rates: 270Mb/s, 1.485Gb/s & 2.97 Gb/s(automatic selection).
  • Video format supported (monitor must support theoriginal SDI rate):
    • SD: 525i, 59.94/60Hz & 625i, 50Hz
    • HD:
      • 720p @ 60Hz, 50Hz, 30Hz, 25Hz & 24Hz
      • 1080i @ 60Hz & 50Hz
      • 1080p @ 30Hz, 25Hz & 24Hz
    • 3G: 1080p @ 60Hz & 50Hz
  • Sound format supported: 48kHz @ 24 bit, 20 bit &16 bit.
  • Indicators:
    • Power:
      • SDI Sync (on rx side only)
      • RJ45 Sync
    • Video (on tx side only)
    • Sound (on tx side only)
    • HDMI Sync (on rx side only)
  • Connectors (On each unit):
    • One BNC 75 ohm female on source side.
    • One HDMI on receiver on receiver side
    • One RJ45S for Cat5e/6 unshielded twisted pair.
    • One power connector, 2mm.
  • Maximum Distance:
    • UTP Cat 5e: 330 ft (100 m) UTP Cat 6: 400 ft (122 m) for 500715
    • UTP Cat 5e: 500 ft (150 m) UTP Cat 6: 500 ft (150 m) for 500716
    • Maximum distance applies for all format and speed between boxes.
    • On SDI side: 450 ft (140m).
    • On HDMI side: 15 ft (5 m) typical.
  • RJ45 Pin Configuration (Use EIA/TIA 568A or 586Bstraight-through wiring only.):
    • RJ45 Link:
      • Pin 1 (R)
      • Pin 2 (T)
      • Pin 3 (R)
      • Pin 4 (R)
      • Pin 5 (T)
      • Pin 6 (T)
      • Pin 7 (R)
      • Pin 8 (T)
  • Cables (NOT INCLUDED):
    • One straight Cat 5e/6 twisted pair cables required.
    • One 75 ohm coaxial cables with 75 ohm BNC required.
    • One HDMI cable.
  • Power Supply (Included): Two 100-240V/5VDC 6W powersupplies with interchangeable blades for NA, Europe and UK.
  • Power Consumption:
    • Transmitter: 4 Watts
    • Receiver: 6 Watts
  • Temperature:
    • Operating: 0° to 40°C
    • Storage: -20° to 85°C
  • Humidity: Up to 95% non-condensing
  • Enclosure: 6061 Aluminum alloy
  • Dimensions: 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2cm)
  • Weight: 2.5 lbs (1.1 kg)
  • Warranty: 2 years
