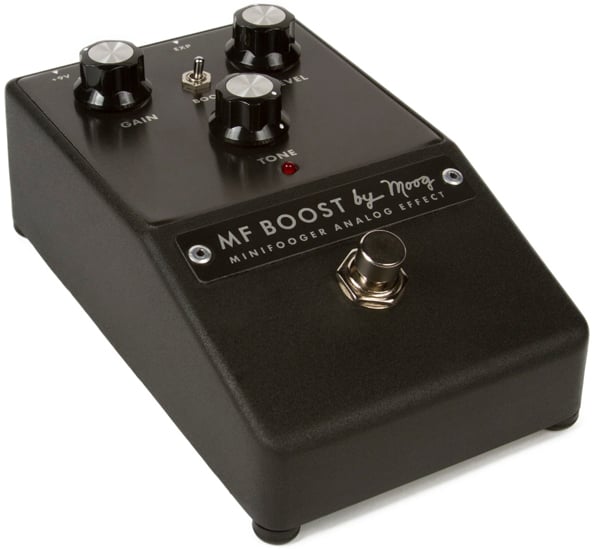

Moog Music MF Boost [DISPLAY MODEL]
Minifooger Analog Boost Pedal

OUR PART #:  MINIFOOGER-MF-BO-DIS

Moog's MF Boost is an Expression enhanced, twin topology boost pedal that allows you to select between an articulate VCA signal path and a colored OTA signal path.
Learn More
Sale Price: $99.99
List Price: $149.00
You save 33%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Moog Music MF Boost [DISPLAY MODEL]
Qty:
In Stock
Similar Products

Moog's MF Boost is an Expression enhanced, twin topology boost pedal that allows you to select between an articulate VCA signal path and a colored OTA signal path.  This completely unique boost design works with your guitar and amplifier to conjure boutique sound and responsiveness from any guitar/amplifier combination.  Its natural compression and sound enhancement also bring out the best tone and performance in other effects pedals.  When paired with an expression pedal, the MF Boost can be used as a tone enhancing volume pedal or sweepable-gain boost pedal.  The expression pedal input also provides access to higher gain values not available on the panel.

NOTE: This product was on display in our retail store and has been additionally discounted. Please contact your sales representative for more information on this and other products.

Controls:

  • Gain - Sets theinput gain from off to maximum.  With the Boost switch in the downposition (VCA mode), this knob should be set to maximum.  In this settingyou will notice tighter bottom, focused midrange, and a more open topend.  With Boost in the up position (clipped OTA mode), the sound iscreamy and lightly compressed with a slightly more forward midrange.
  • Boost - In thedown position, signal is sent through the VCA signal path providing clean,articulate tonal enhancement with a subtle 6dB boost (12dB+ w/expression).  This setting feels and sounds like a boutique amp in apedal.  With the switch in the up position, signal is sent through theclipped OTA path providing 12dB of boost (18dB+ w/ expression).  Thispath has a creamy, classic tone that bonds guitar and amplifier for everythingfrom subtle bite and drive to singing leads.  Both settings have anaturally occurring musical compression.
  • Tone - Athigher settings this control adds openness, note articulation and pickingdetail.  In this setting the top-end in your amplifier is sweetened whileremaining smooth, the mids become focused, and the bottom end appears morerobust and tight.  At lower settings the Tone control can be used tofatten up an amp or tame harsh top-end.
  • Level - Level allows you to trim the output of the Boostwhile maintaining input gain coloration.  This control does not gocompletely off.

Expression Pedal Input: This input is assigned to Gain.  With Gain set to minimum, an expression pedal can be used as a volume pedal.  At the mid setting in clipped OTA mode, the expression pedal allows you to swell in and out boost levels musically.  At maximum, use an expression pedal to add input Gain not available on the panel of your MF Boost and overdrive your amp.

Features:

  • Articulate tone enhancement tool that you leaveengaged
  • Two selectable signal paths with natural compression
  • Transparent tone circuit adds articulation, Nashvillecluck, or removes harshness
  • Can be used as a clean boost pedal, a dirty boostpedal AND a volume pedal
  • Expression pedal adds gain past the panel setting
  • True Bypass
  • Designed to perform with any Guitar, Amp, or Bass guitar configuration

Specifications:

  • Signal Path: 100% Analog
  • Bypass Type: True bypass
  • Power: +9V DC
  • Weight: 18 oz. (0.5 kg)
  • Enclosure: Cast aluminum
  • Dimensions: 5.75" D x 3.25" W x 2.25" H (14.4 x8.3 x 5.8 cm)
  • Gain: -65 dB - +18 dB
  • Tone Control: 165 Hz - 20 kHz Low-pass Filter 6 dB/Octave (wet signalonly)
  • Expression: Controls Gain (Max Input level +5V DC)
  • Input Impedance:1 MegaOhm
  • Minimum Output Impedance: 100 Ohms
  • Current: 8 mA
