Orange Amplification OB1-300
300W Class A/B Bass Amplifier Head

OUR PART #  OB1-300

Our Price: $799.00
List Price: $999.00
You save 20%! (Low Price Guarantee)
In Stock

The Orange Amplification OB1-300 class A/B rackmountable bass amp head lets bass players partake in 'bi-amping' in an easier fashion. For years bassists have been combining guitar and bass amps to remarkable effect, adding harmonics and layers of overdrive from a guitar amp to their core bass tone in pursuit of the ultimate live sound. With OB1-300, there's no need to carry around more than one amp in order to achieve the sound you desire.

The key to the OB1's unique sound is Orange's footswitchable Blend circuit, which adds a veneer of controllable gain and increased harmonic content to the upper registers of the input signal. The lower frequencies and clean signal are left alone, staying warm and clear just as they would be in a 'bi-amped' setup. Depending on where the Gain and Blend controls are set, the possibilities are limitless. Punch in the Blend control to achieve anything from a transparent clean boost, to all-out filthy grind, and everywhere in between.

'Bi-amp' Inspired Design

The OB1 splits the input instrument signal into two separate paths. One side amplifies the clean signal, with all the clarity you would expect from Orange. The other adds up to two stages of distortion to the upper harmonics only, controllable via the amp's Gain knob. These two elements are combined using the amplifier's Blend control which adjusts the mix between clean and dirty. The Blend control can then be remotely engaged or defeated using the optional footswitch.

The Gain and Blend's range allows for almost anything, from a subtle level boost to cut through the mix, added girth and presence at moderate settings to fatten up chorus passages, to fully saturated savagery at the extremes. However you dial it, the OB1 always maintains the critical low end definition, right the way up to the most offensive settings.

Active EQ

The OB1's highly responsive active three band EQ has been meticulously voiced for maximum effect with minimal fuss. The EQ section is located after the Gain and Blend dials take effect, allowing full control over their massive sonic range. The Bass and Middle controls feature +/-15dB of boost or cut, whilst there is a range of +/- 20dB on the Treble control.

All Analog Signal Path

The OB1 Series puts proper class A/B power back on the map. All circuitry is completely analogue, ensuring these amps sound expressive and musical even at ridiculous gain levels.

Rack Mountable

The OB1 Series are our first rack mountable amps, suitable for 19" cases (2 RU). Enclosed in a rugged power coated steel chassis the fascia is finished in Orange's classic 'pics only' styling.

Balanced & Line Outputs

Balanced DI with ground lift and line level outputs for live and studio use.

Orange Amplification OB1-300 300W Class A/B Bass Amplifier Head Specifications:

  • Features: Rack mountable (2 RU) 'bi-amp' inspired bass head with footswitchable Gain & Blend controls, active 3-band EQ, balanced DI & line level outputs

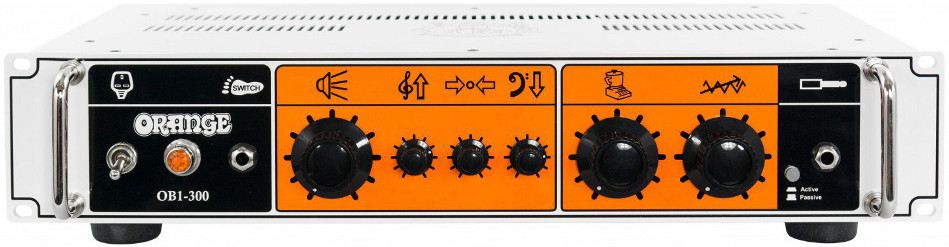

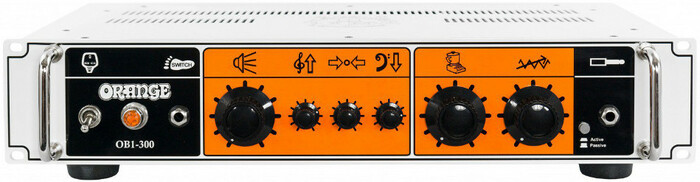

  • Front Panel (Right to Left): Instrument Input with Active/Passive Switch, Gain, Blend, Bass, Middle, Treble, Volume, Footswitch Input, Mains Switch
  • Rear Panel (Right to Left): Speaker Outputs (Speakon), 1/4" Line Output, Balanced Output with Ground Lift Switch
    Speaker Output Options: Minimum 4 Ohms: 1x 8 Ohm, 2x 8 Ohm, 1x 4 Ohm
  • Output Power: 300 Watts, Class A/B
  • Finish Options: White powder coated steel chassis (19" 2 RU rackmountable)
  • Unboxed Dimensions: 18.97" W x 10.43" H x 3.93" D (48.2 x 26.5 x 10 cm)
  • Unboxed Weight: 21 lbs (9.5 kg)
