Belden 1694F-1000-BLUE

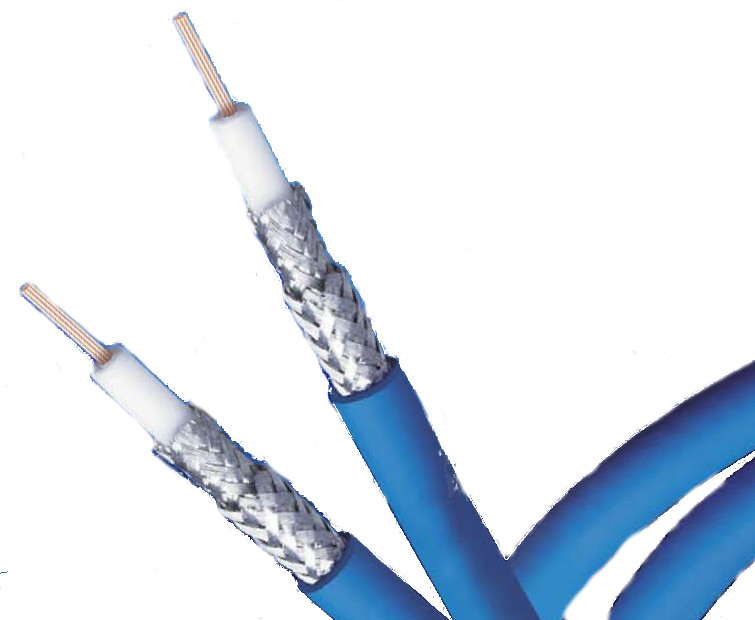

1000 ft of 19AWG RG-6/U Low Loss Serial Digital Coax Cable in Blue

OUR PART #:  1694F-1000-BLUE

Belden's 1694F features 19 AWG stranded (7x27) bare copper conductor, gas-injected foam HDPE insulation, double-tinned copper braid shield (95% coverage), PVC jacket.
Learn More
Our Price: $1,052.70
Write the first review.
Belden 1694F-1000-BLUE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Belden's 1694F features 19 AWG stranded (7x27) bare copper conductor, gas-injected foam HDPE insulation, double-tinned copper braid shield (95% coverage), PVC jacket.

Belden 1694F Specifications:

  • Conductor:
    • AWG:
      • # Coax: 1
      • AWG: 19
      • Stranding: 7x27
      • Conductor: BC - Bare Copper
      • Material Diameter: 1.016 mm
    • Total Number of Conductors: 1
  • Insulation:
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Diameter: 4.572 mm
  • Outer Shield:
    • Outer Shield Material:
      • Layers #1 & 2:
        • Type: Braid
        • Outer Shield Material: TC - Tinned Copper
        • Coverage: 95%
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Nominal Cable Diameter: 7.010 mm
  • Mechanical Characteristics (Overall):
    • Operating Temperature Range: -30°C To +75°C
    • UL Temperature Rating: 75°C
    • Bulk Cable Weight: 74.410 Kg/Km
    • Max. Recommended Pulling Tension: 515.991 N
    • Min. Bend Radius/Minor Axis: 69.850 mm
