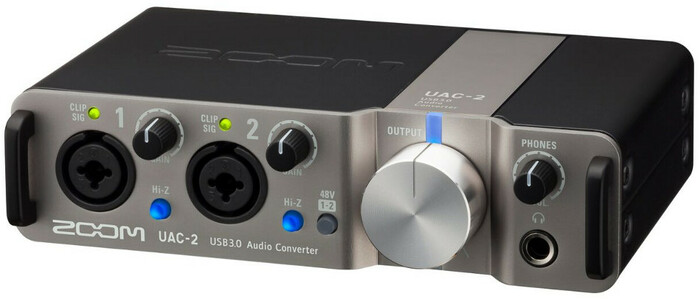

Zoom UAC-2
USB 3.0 SuperSpeed Audio Converter for Mac, PC, iPad

OUR PART #  UAC-2R

Our Price: $249.99
List Price: $312.99
You save 20%! (Low Price Guarantee)
In Stock

Recommended Accessories

The ZOOM UAC-2 USB 3.0 SuperSpeed Audio Converter for Mac and PC is a high-speed, high-resolution, low-latency, and ultra-
portable bus-powered device that adds two channels of 24-bit/192kHz high-resolution audio to any USB 2.0 or 3.0-equipped Windows or Mac computer - even to your iPad.* It includes advanced features such as 4x upsampling, Loopback, and MIDI I/O. Plug in any microphone, line-level device, or instrument and use the UAC-2 for on-stage playback, recording to a DAW, or enjoyment of high-resolution audio in your home or office. You can also use it for fast low-latency webcasting, podcasting, gaming, and other live streaming applications.
*Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required.

The UAC-2's Loopback function combines the input from connected mics, instruments, and line-level devices along with background music or other audio tracks being played back by your computer and then instantly routes a custom blend of the signals to your favorite streaming software.

Pair a UAC-2 with your DAW and create great audio in any recording environment. Connect a wide variety of microphones, line-level devices, and instruments. Use Direct Monitoring for zero-latency overdubbing. Sync your MIDI controllers, sound modules, and drum machines. Archive your favorite recordings in high-resolution formats.

Plug your headphones and/or speakers into the UAC-2 instead of your computer's audio outputs and enjoy the ultimate in streamed high-resolution audio - all the way up to 24-bit/192kHz in full fidelity.

The UAC-2 works with everything from legacy USB 2.0 laptops and desktops all the way up to the latest-generation of Mac or Windows USB 3.0-equipped computers. Or plug in an AC adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter (sold separately) and use it with your iPad.

The UAC-2's MIDI input and output connectors ensure solid synchronization between your computer and devices such as electronic keyboards, controllers, drum machines, and synthesizer or sampler modules.

The USB 3.0 SuperSpeed transfer protocol supported by the UAC-2 is ten times faster than USB 2.0 and six times faster than FireWire 800, resulting in low-latency (2.2ms roundtrip @ 96kHz / 32 samples) for improved performance from your DAW software and a stable data stream that is unaffected by computer jitter (slight variations in timing), which makes connecting to an external master clock source unnecessary. The extra bus voltage carried by USB 3.0 (900 mA, as opposed to the 500 mA carried by USB 2.0) allows for the use of higher-end electronic components such as the advanced preamps and converters in the UAC-2.

The USB 3.0 connector on the rear panel carries digital signal to and from your computer in addition to providing power to the UAC-2—no batteries or external power required. Dual front panel combo XLR/TRS inputs allow you to connect a wide variety of microphones as well as line-level signals from electronic keyboards and music players—even passive instruments such as electric guitars and basses. Dual-balanced TRS output jacks enable you to connect the UAC-2 to amplifiers or self-powered speakers, and there's an independent 1/4" stereo headphone jack with dedicated volume control for private monitoring of the input or output signal.

Dedicated input gain controls and Clip LEDs make it easy to set optimum input levels, and a large output knob enables fast control over overall output level. A phantom power switch applies +48 volts to the mic inputs, allowing you to use the UAC-2 with studio-quality condenser microphones, and a three-way Direct Monitoring switch enables monitoring of input signal with zero latency in both mono and stereo. MIDI In and Out connectors allow interfacing with devices such as electronic keyboards and drum machines. Lastly, a Class Compliant Mode switch enables the UAC-2 to be connected to an iPad.*
*Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required

The UAC-2 uses high-end components such as the Burr Brown PCM4202 analog-to-digital converter and AKM AK4396 digital-to-analog converter. In addition, the UAC-2 performs 4-times upsampling during both analog-to-digital (A/D) and digital-to-analog (D/A) conversion. This means that when the sampling frequency is set to 44.1kHz or 48kHz, the UAC-2 processes the signal at high resolution 176.4kHz or 192kHz. For A/D conversion, this means less aliasing noise; for D/A conversion, this means increased clarity and fidelity.

UAC-2 MixEfx is a free Macintosh and Windows compatible application designed specially by Zoom for the UAC-2*. With UAC-2 MixEfx, you can set mix parameters and add high-quality effects such as reverb and echo. Other features include a low cut filter, phase reverse, AUTO GAIN control for each input. UAC-2 MixEfx even has three memory slots for saving user settings with quick recall.
*Available on Zoom's website.

ZOOM UAC-2R Includes:

  • ZOOM UAC-2R USB 3.0 SuperSpeed Audio Converter for Mac and PC
  • Operation manual
  • USB 3.0 cable (1m)
  • Cubase LE download access code sheet
  • Cubase LE startup guide

ZOOM UAC-2R Features:

  • 2-in/2-out USB 3.0 SuperSpeed audio interface
  • Support for recording and playback up to 24-bit/192kHz
  • Loopback function for webcasting, podcasting, gaming, and other live streaming applications
  • Low latency overdubbing and direct monitoring for zero-latency monitoring in mono or stereo
  • Two combo balanced XLR/TRS input connectors accept both mic- and line-level signal
  • Hi-Z switches allow direct connection of electric guitar or bass
  • Switchable +48V phantom power
  • Two balanced TRS output jacks for connection to amplifiers or self-powered speakers
  • 1/4" headphone jack with dedicated level control
  • Independent gain controls and clip LEDs for each input
  • Large knob output volume control
  • Direct Monitoring switch for zero latency monitoring in mono or stereo
  • MIDI In and Out
  • Compatible with all popular DAW and streaming software, including Cubase, Logic, Garage Band, Pro Tools, Ableton Live, and others
  • High-performance mic preamps with up to +60dB of amplification
  • 120dB of dynamic range
  • 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
  • Asynchronous transfer system unaffected by computer jitter
  • Bus powered—no AC power required
  • Robust metal housing ensures roadworthiness
  • Works with all USB 3.0-equipped computers and iPads*
    *Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required
120VAC Power Adapter for H4n/Q3/Q3HD/R16/R24Zoom AD-14 120VAC Power Adapter for H4n/Q3/Q3HD/R16/R24

Zoom's AD-14 is an AC power adapter designed for the Zoom H4n, Q3, Q3HD, R16, and R24 recorders. Zoom AD-14 Power Adapter Specifications: Rated Input: AC100-140V Rated Output: DC5V / 1A (center positive)

In Stock

Our Price:$22.49List Price: $24.99You save 10%!

Lightning to USB Camera Adapter  (MD821ZM/A)Apple LIGHT-USB-CAM-ADP Lightning to USB Camera Adapter (MD821ZM/A)

Use this adapter to import photos and videos from a digital camera to your iPad with Retina display or iPad mini with Lightning connector. The Lightning to USB Camera Adapter supports standard photo formats, including JPEG and RAW, along ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$29.00

Zoom UAC-2
USB 3.0 SuperSpeed Audio Converter for Mac, PC, iPad

OUR PART #  UAC-2R

Product Information:

The ZOOM UAC-2 USB 3.0 SuperSpeed Audio Converter for Mac and PC is a high-speed, high-resolution, low-latency, and ultra-
portable bus-powered device that adds two channels of 24-bit/192kHz high-resolution audio to any USB 2.0 or 3.0-equipped Windows or Mac computer - even to your iPad.* It includes advanced features such as 4x upsampling, Loopback, and MIDI I/O. Plug in any microphone, line-level device, or instrument and use the UAC-2 for on-stage playback, recording to a DAW, or enjoyment of high-resolution audio in your home or office. You can also use it for fast low-latency webcasting, podcasting, gaming, and other live streaming applications.
*Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required.

The UAC-2's Loopback function combines the input from connected mics, instruments, and line-level devices along with background music or other audio tracks being played back by your computer and then instantly routes a custom blend of the signals to your favorite streaming software.

Pair a UAC-2 with your DAW and create great audio in any recording environment. Connect a wide variety of microphones, line-level devices, and instruments. Use Direct Monitoring for zero-latency overdubbing. Sync your MIDI controllers, sound modules, and drum machines. Archive your favorite recordings in high-resolution formats.

Plug your headphones and/or speakers into the UAC-2 instead of your computer's audio outputs and enjoy the ultimate in streamed high-resolution audio - all the way up to 24-bit/192kHz in full fidelity.

The UAC-2 works with everything from legacy USB 2.0 laptops and desktops all the way up to the latest-generation of Mac or Windows USB 3.0-equipped computers. Or plug in an AC adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter (sold separately) and use it with your iPad.

The UAC-2's MIDI input and output connectors ensure solid synchronization between your computer and devices such as electronic keyboards, controllers, drum machines, and synthesizer or sampler modules.

The USB 3.0 SuperSpeed transfer protocol supported by the UAC-2 is ten times faster than USB 2.0 and six times faster than FireWire 800, resulting in low-latency (2.2ms roundtrip @ 96kHz / 32 samples) for improved performance from your DAW software and a stable data stream that is unaffected by computer jitter (slight variations in timing), which makes connecting to an external master clock source unnecessary. The extra bus voltage carried by USB 3.0 (900 mA, as opposed to the 500 mA carried by USB 2.0) allows for the use of higher-end electronic components such as the advanced preamps and converters in the UAC-2.

The USB 3.0 connector on the rear panel carries digital signal to and from your computer in addition to providing power to the UAC-2—no batteries or external power required. Dual front panel combo XLR/TRS inputs allow you to connect a wide variety of microphones as well as line-level signals from electronic keyboards and music players—even passive instruments such as electric guitars and basses. Dual-balanced TRS output jacks enable you to connect the UAC-2 to amplifiers or self-powered speakers, and there's an independent 1/4" stereo headphone jack with dedicated volume control for private monitoring of the input or output signal.

Dedicated input gain controls and Clip LEDs make it easy to set optimum input levels, and a large output knob enables fast control over overall output level. A phantom power switch applies +48 volts to the mic inputs, allowing you to use the UAC-2 with studio-quality condenser microphones, and a three-way Direct Monitoring switch enables monitoring of input signal with zero latency in both mono and stereo. MIDI In and Out connectors allow interfacing with devices such as electronic keyboards and drum machines. Lastly, a Class Compliant Mode switch enables the UAC-2 to be connected to an iPad.*
*Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required

The UAC-2 uses high-end components such as the Burr Brown PCM4202 analog-to-digital converter and AKM AK4396 digital-to-analog converter. In addition, the UAC-2 performs 4-times upsampling during both analog-to-digital (A/D) and digital-to-analog (D/A) conversion. This means that when the sampling frequency is set to 44.1kHz or 48kHz, the UAC-2 processes the signal at high resolution 176.4kHz or 192kHz. For A/D conversion, this means less aliasing noise; for D/A conversion, this means increased clarity and fidelity.

UAC-2 MixEfx is a free Macintosh and Windows compatible application designed specially by Zoom for the UAC-2*. With UAC-2 MixEfx, you can set mix parameters and add high-quality effects such as reverb and echo. Other features include a low cut filter, phase reverse, AUTO GAIN control for each input. UAC-2 MixEfx even has three memory slots for saving user settings with quick recall.
*Available on Zoom's website.

ZOOM UAC-2R Includes:

  • ZOOM UAC-2R USB 3.0 SuperSpeed Audio Converter for Mac and PC
  • Operation manual
  • USB 3.0 cable (1m)
  • Cubase LE download access code sheet
  • Cubase LE startup guide

ZOOM UAC-2R Features:

  • 2-in/2-out USB 3.0 SuperSpeed audio interface
  • Support for recording and playback up to 24-bit/192kHz
  • Loopback function for webcasting, podcasting, gaming, and other live streaming applications
  • Low latency overdubbing and direct monitoring for zero-latency monitoring in mono or stereo
  • Two combo balanced XLR/TRS input connectors accept both mic- and line-level signal
  • Hi-Z switches allow direct connection of electric guitar or bass
  • Switchable +48V phantom power
  • Two balanced TRS output jacks for connection to amplifiers or self-powered speakers
  • 1/4" headphone jack with dedicated level control
  • Independent gain controls and clip LEDs for each input
  • Large knob output volume control
  • Direct Monitoring switch for zero latency monitoring in mono or stereo
  • MIDI In and Out
  • Compatible with all popular DAW and streaming software, including Cubase, Logic, Garage Band, Pro Tools, Ableton Live, and others
  • High-performance mic preamps with up to +60dB of amplification
  • 120dB of dynamic range
  • 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
  • Asynchronous transfer system unaffected by computer jitter
  • Bus powered—no AC power required
  • Robust metal housing ensures roadworthiness
  • Works with all USB 3.0-equipped computers and iPads*
    *Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required
